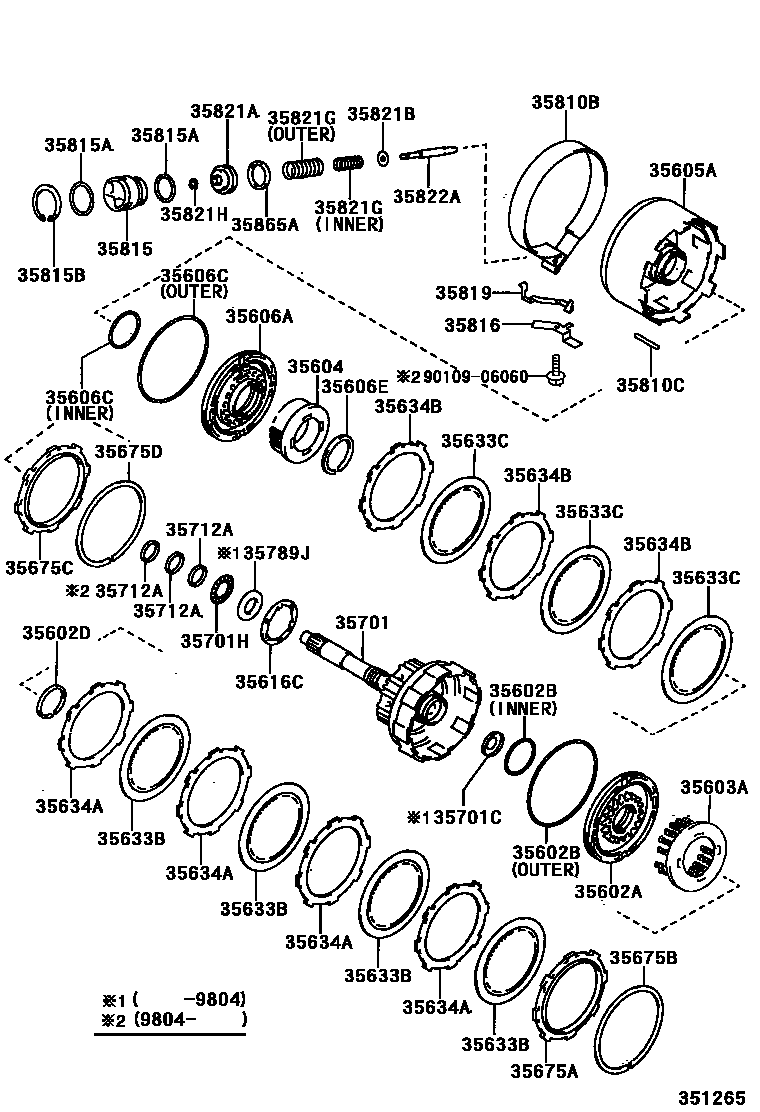

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
INNER
OUTER
OUTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
INNER
OUTER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8
T=1.8
35675AFLANGE, FORWARD CLUTCH
T=3.6,MARK 93
T=2.8
T=3.0
T=3.2
T=3.4
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=2.6
T=2.8
T=3.0
T=3.2
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=42.0
OD=46.02
OD=47.10
OD=46.43
35712ARING, INPUT SHAFT OIL SEAL
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35810BBAND ASSY, 2ND COAST BRAKE
35810CPIN (FOR 2ND COAST BRAKE BAND)
35815ARING, O (FOR 2ND COAST BRAKE COVER)
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
35816RETAINER, BRAKE BAND GUIDE PLATE
35819PLATE, 2ND COAST BRAKE BAND GUIDE
35821APISTON, 2ND COAST BRAKE
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
INNER
OUTER
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
35822AROD, 2ND COAST BRAKE PISTON
L=70.9
L=72.4
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
9010906060
main90109-06060
37 parts on this diagram · 1 diagram in section
