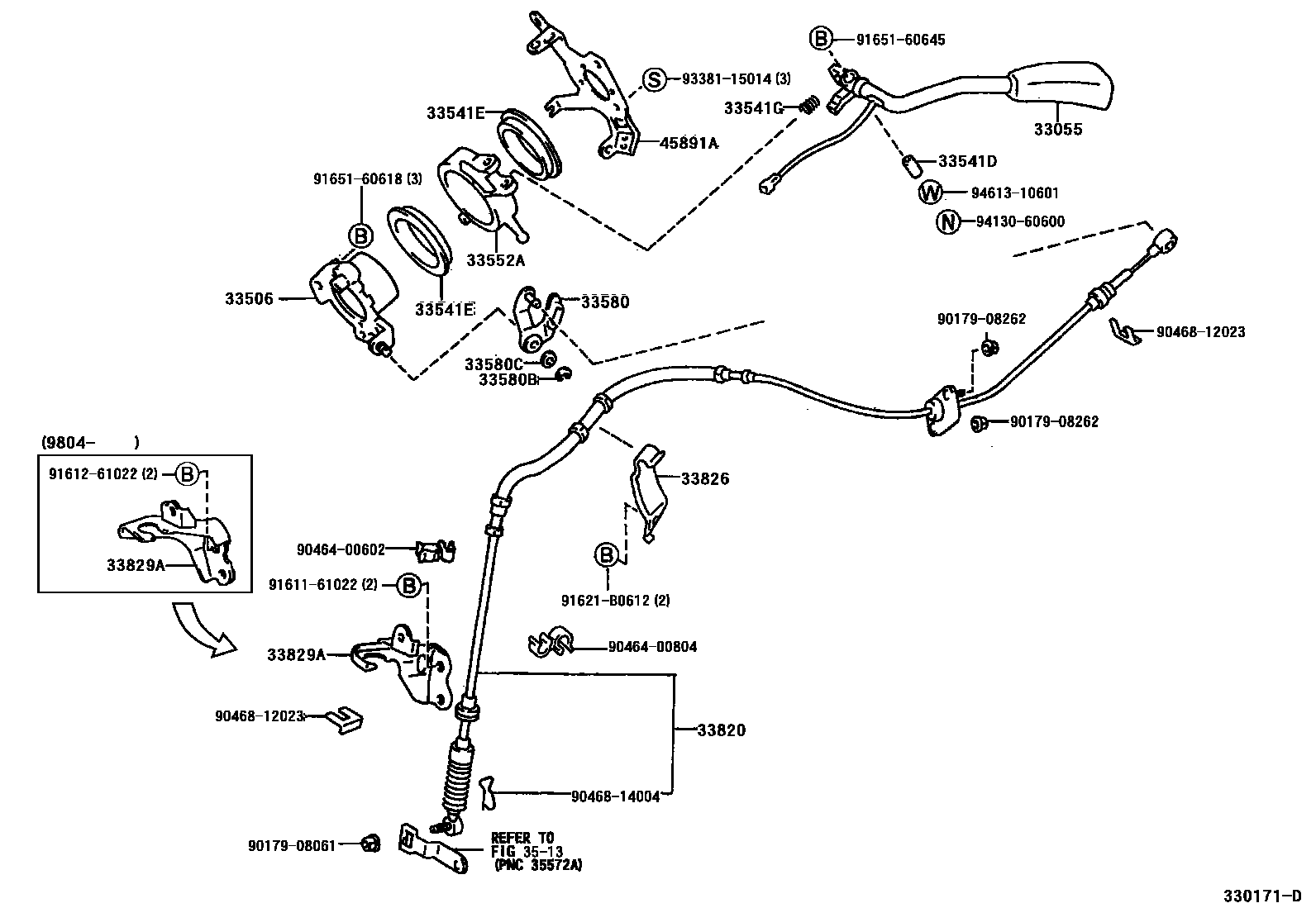

CONTROL SHAFT & CROSSSHAFT
33055LEVER SUB-ASSY, COLUMN SHIFT
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33541DCOLLAR (FOR COLUMN SHIFT LEVER)
33541EBUSH (FOR COLUMN SHIFT LEVER)
33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
33552AARM, SHIFT LEVER
33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
sub33820-44031
sub33820-44051
sub33820-44081
sub33820-44091
33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33829ASUPPORT, TRANSMISSION CONTROL CABLE
3513
45891ABRACKET, TURN SIGNAL
9017908061
main90179-08061
9017908262
main90179-08262
9046400602
main90464-00602
9046400804
main90464-00804
9046812023
main90468-12023
9046814004
main90468-14004
9161161022
main91611-61022
9161261022
main91612-61022
91621B0612
main91621-B0612
9165160618
main91651-60618
9165160645
main91651-60645
9338115014
main93381-15014
9413060600
main94130-60600
9461310601
main94613-10601
28 parts on this diagram · 2 diagrams in section
