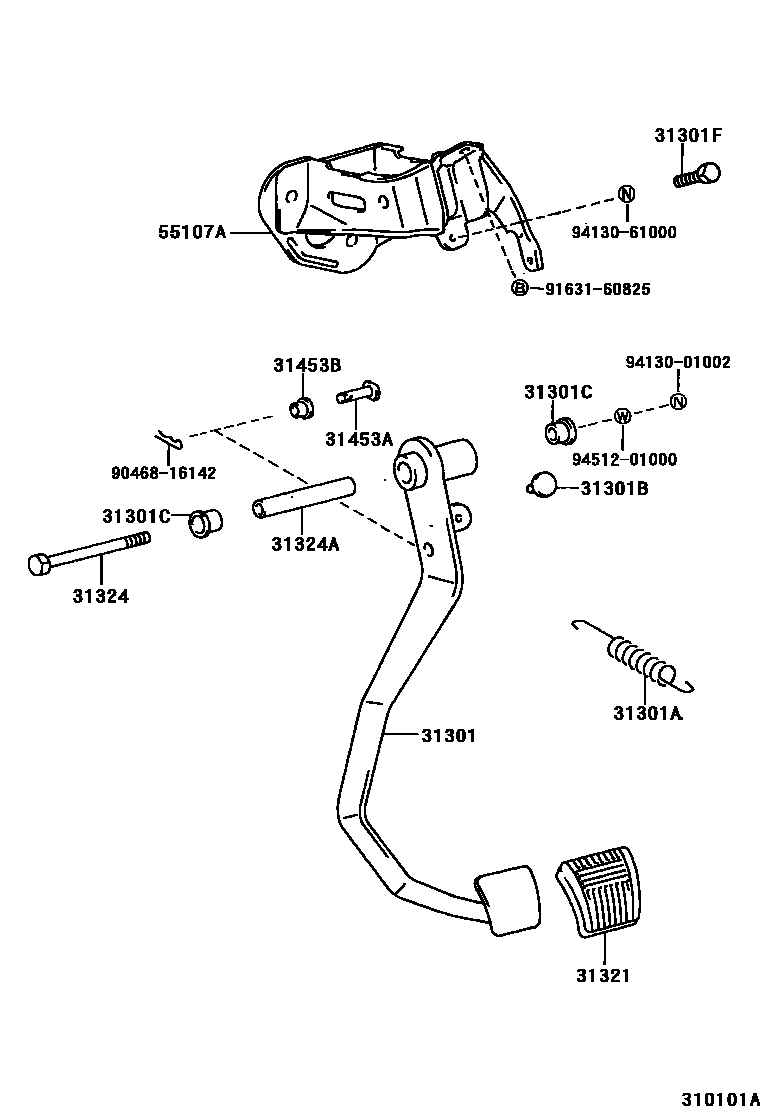

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-44010iCXM10,SXM10..RHD..MTM199609-200008

main31301-44020iCXM10,SXM10..LHD..MTM199609-200008

31301ASPRING(FOR CLUTCH PEDAL)

main90506-13005iCXM10,SXM10..MTM199609-200008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCXM10,SXM10..MTM199609-200008

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCXM10,SXM10..MTM199609-200008

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCXM10,SXM10..MTM199609-200008

31321PAD, CLUTCH PEDAL

main31321-14020iCXM10,SXM10..MTM199609-200008

31324SHAFT, CLUTCH PEDAL

main90101-10164iCXM10,SXM10..MTM199609-200008

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iCXM10,SXM10..MTM199609-200008

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iCXM10,SXM10..MTM199609-200008

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iCXM10,SXM10..MTM199609-200008

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-44010iCXM10,SXM10..LHD..MTM199609

main55107-44020iCXM10,SXM10..RHD..MTM199609

9046816142

main90468-16142

9163160825

main91631-60825

9413001002

main94130-01002

9413061000

main94130-61000

9451201000

main94512-01000

16 parts on this diagram · 5 diagrams in section
