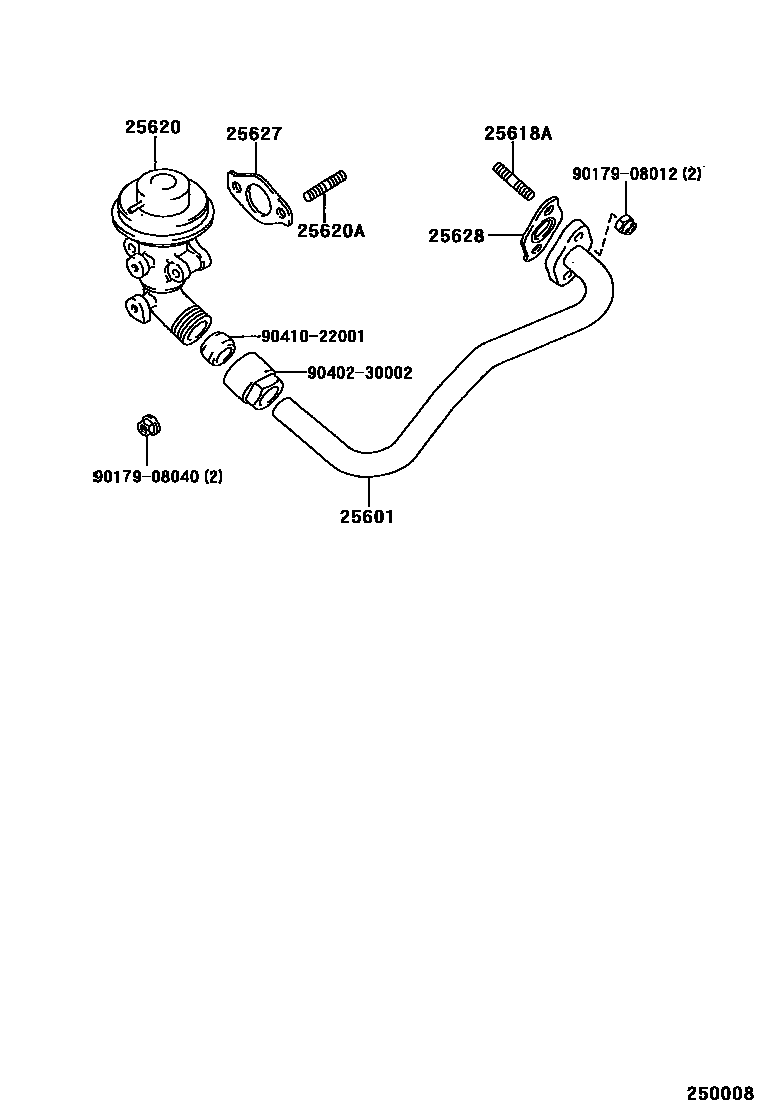

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64071i3CTE..CXM10199709

main25611-74050i3SFE..SXM10199609-199804

main25611-74060i3SFE..SXM10199804-200005

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822i3CTE..CXM10199709

25620VALVE ASSY, EGR

main25620-64210i3CTE..CXM10199709

main25620-74300i3SFE..SXM10..MTM199609-199804

main25620-74310i3SFE..SXM10..ATM199609-199804

main25620-74320i3SFE..SXM10..MTM199804-200005

main25620-74330i3SFE..SXM10..ATM199804-200005

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198i3CTE..CXM10199709

25627GASKET, EGR VALVE

main25627-64030i3CTE..CXM10199709

main25627-74011i3SFE..SXM10199609-200005

25628GASKET, EGR INLET

main25628-64030i3CTE..CXM10199709

main25628-74010i3SFE..SXM10199804-200005

9017908012

main90179-08012

9017908040

main90179-08040

9040230002

main90402-30002

9041022001

main90410-22001

10 parts on this diagram · 3 diagrams in section
