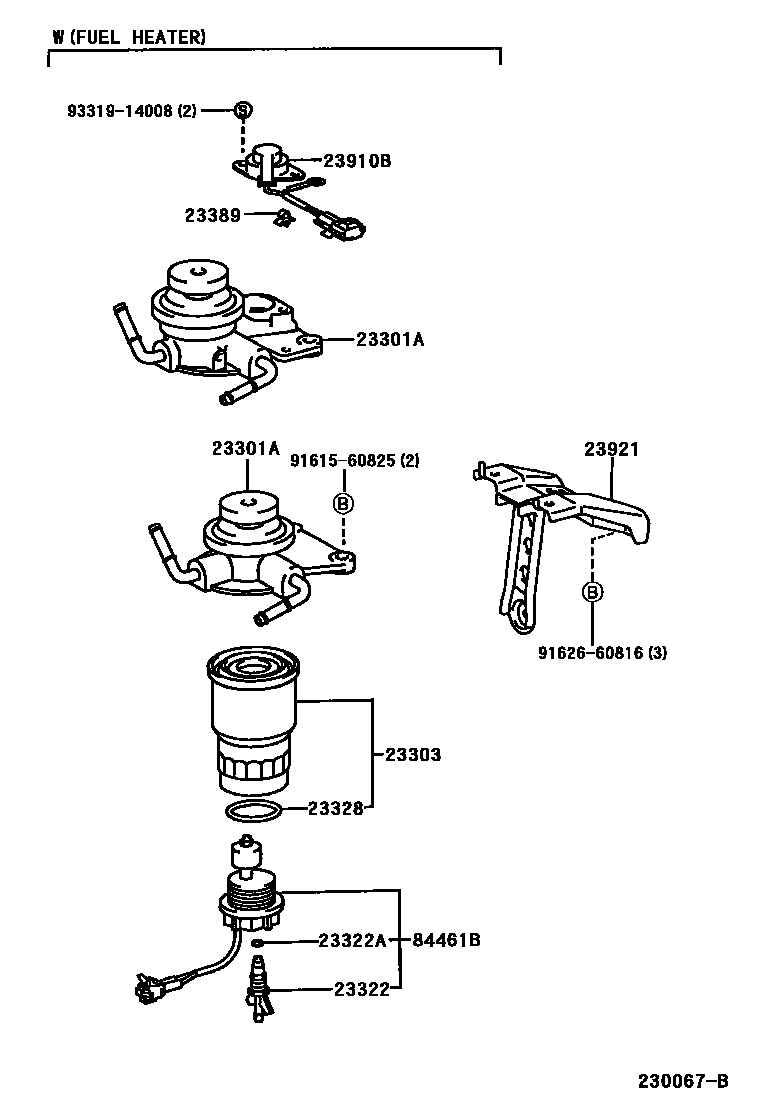

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-64500i3CTE..CXM10199709

sub23380-64501

main23380-64510i3CTE..CXM10199709

W(FUEL HEATER)

sub23380-64511

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i3CTE..CXM10199709

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i3CTE..CXM10199709

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3CTE..CXM10199709

23328GASKET(FOR FUEL FILTER)

main23344-64010i3CTE..CXM10199709

23389CLAMP, FUEL FILTER

main23389-64490i3CTE..CXM10199709

W(FUEL HEATER)

23910BHEATER ASSY, FUEL

main23910-64040i3CTE..CXM10199709

W(FUEL HEATER)

23921SUPPORT, FUEL FILTER

main23921-64280i3CTE..CXM10..RHD199709

main23921-64290i3CTE..CXM10..LHD199709

84461BSWITCH, LEVEL WARNING

main84461-28040iCXM10199709

sub84461-28041

9161560825

main91615-60825

9162660816

main91626-60816

9331914008

main93319-14008

12 parts on this diagram · 1 diagram in section
