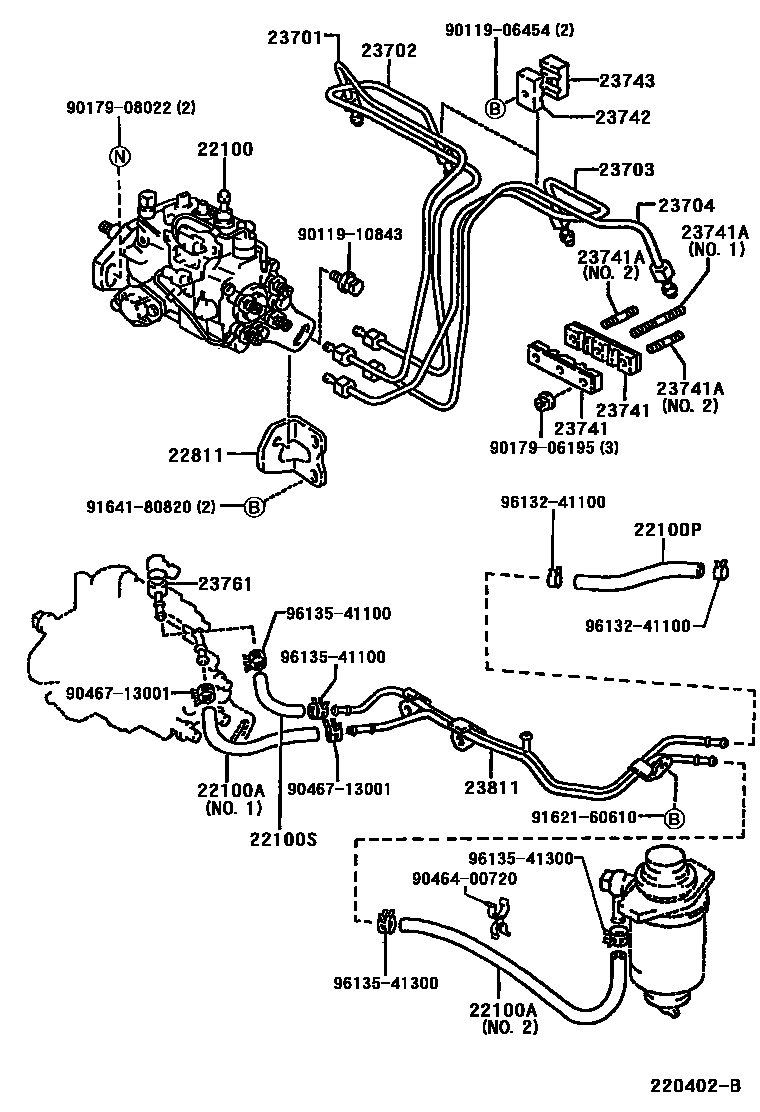

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6E190i3CTE..CXM10199709

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64250i3CTE..CXM10..RHD199709

*H,L=320,NO.2

main23271-64260i3CTE..CXM10..LHD199709

*H,L=260,NO.2

main23273-64030i3CTE..CXM10199709

NO.1

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main23273-64090i3CTE..CXM10199709

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-64020i3CTE..CXM10199709

22811STAY, INJECTION PUMP, NO.1

main22811-64020i3CTE..CXM10199709

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i3CTE..CXM10199709

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i3CTE..CXM10199709

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i3CTE..CXM10199709

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i3CTE..CXM10199709

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i3CTE..CXM10199709

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i3CTE..CXM10199709

NO.1

sub90116-06095

main92122-60622i3CTE..CXM10199709

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i3CTE..CXM10199709

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i3CTE..CXM10199709

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64110i3CTE..CXM10199709

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64110i3CTE..CXM10199709

9011906454

main90119-06454

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9046400720

main90464-00720

9046713001

main90467-13001

9162160610

main91621-60610

9164180820

main91641-80820

9613241100

main96132-41100

9613541100

main96135-41100

9613541300

main96135-41300

26 parts on this diagram · 1 diagram in section
