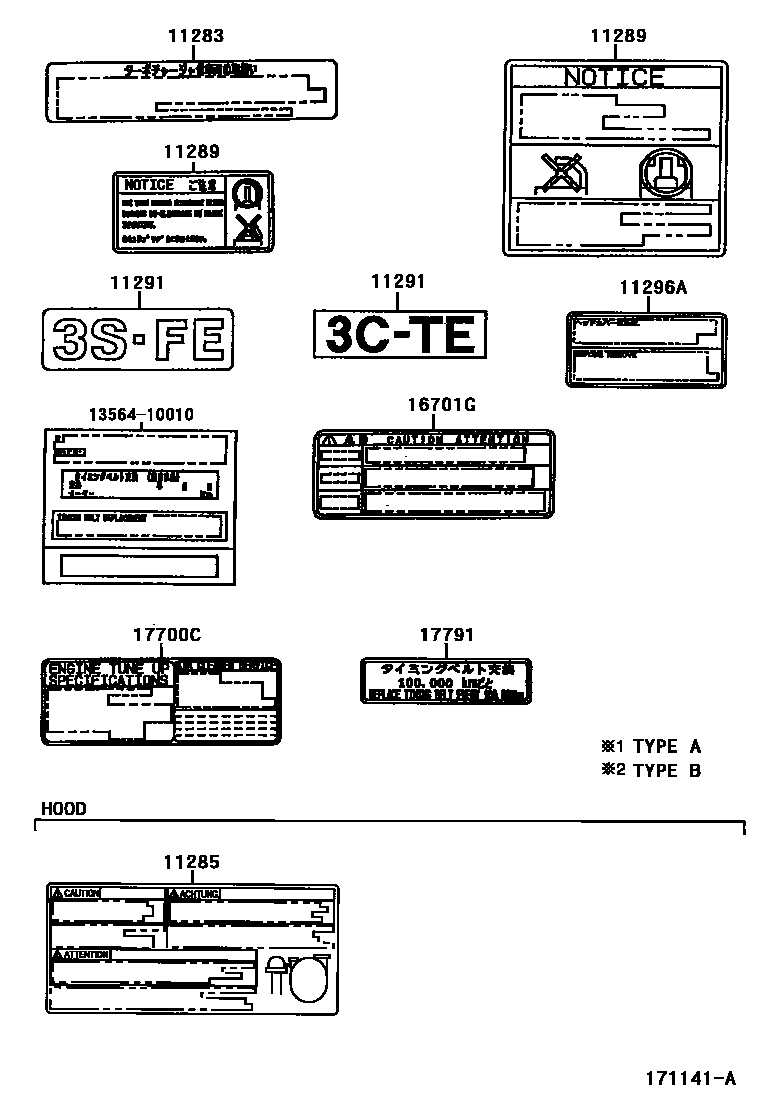

CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-64060i3CTE..CXM10199709

11285PLATE, COOLANT SYSTEM CAUTION

main11285-64020i3CTE..CXM10199709

11289PLATE, SPARK PLUG CAUTION

main11289-20010i3SFE..SXM10..LHD199609

TYPE B:REFER TO ILLUSTRATION

main11289-62020i3SFE..SXM10199609

TYPE A:REFER TO ILLUSTRATION

11291PLATE, ENGINE NAME

main11291-64100i3CTE..CXM10199709

main11291-74070i3SFE..SXM10199609

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-64010i3CTE..CXM10199709

16701GLABEL, CAUTION

main16793-46010i3CTE..CXM10199709

main88723-20080i3SFE..SXM10199609-199702

main88723-20081i3SFE..SXM10199702

sub16793-31070

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main11296-64031i3CTE..CXM10199709

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i3CTE..CXM10199709

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

9 parts on this diagram · 1 diagram in section
