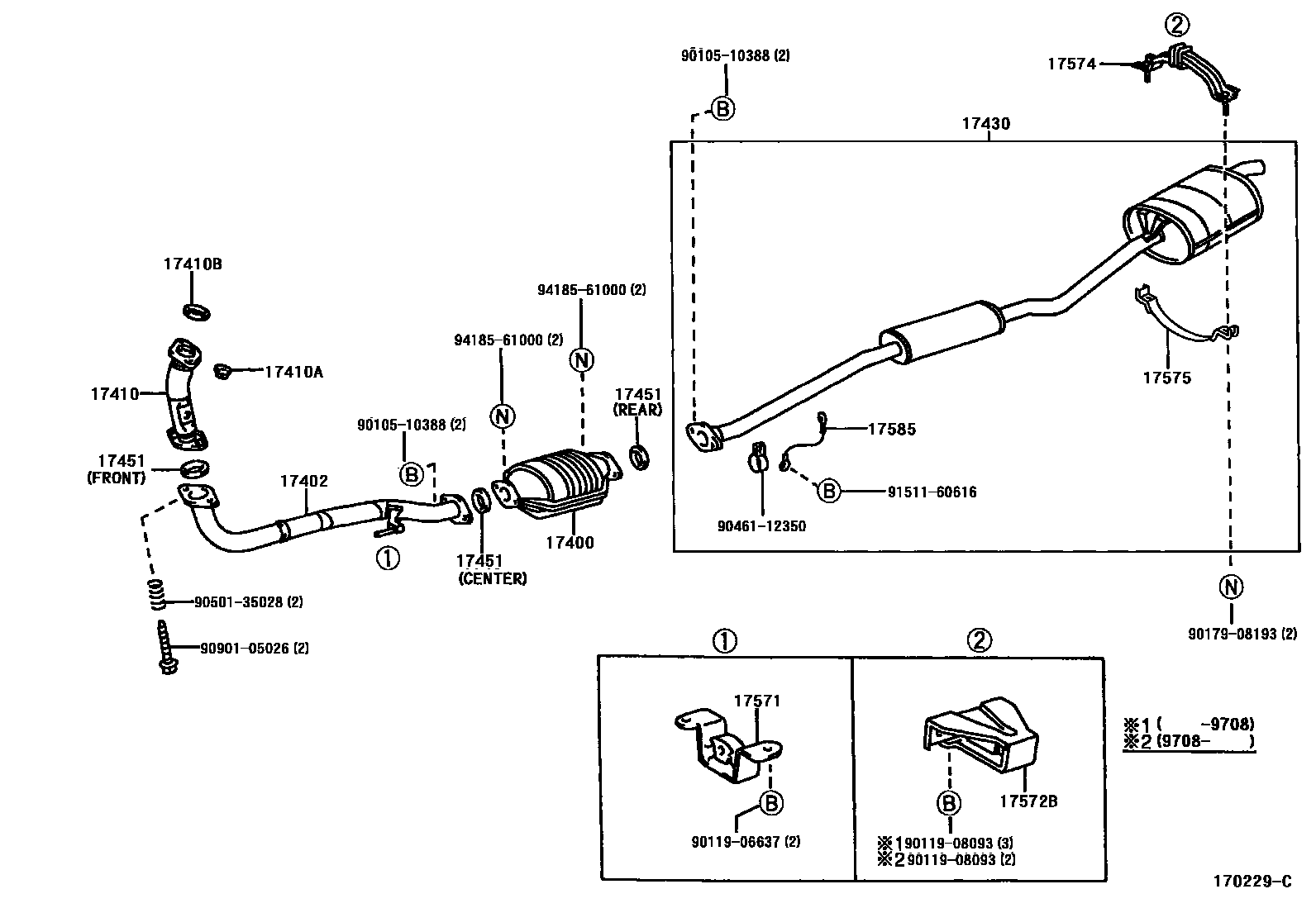

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
*115=TOYOTA/-00/N
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
FRONT
CENTER
CENTER
REAR
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17585HANGER, EXHAUST PIPE
9010510388
main90105-10388
9011906637
main90119-06637
9011908093
main90119-08093
9017908193
main90179-08193
9046112350
main90461-12350
9050135028
main90501-35028
9090105026
main90901-05026
9151160616
main91511-60616
9418561000
main94185-61000
21 parts on this diagram · 3 diagrams in section
