VENTILATION HOSE

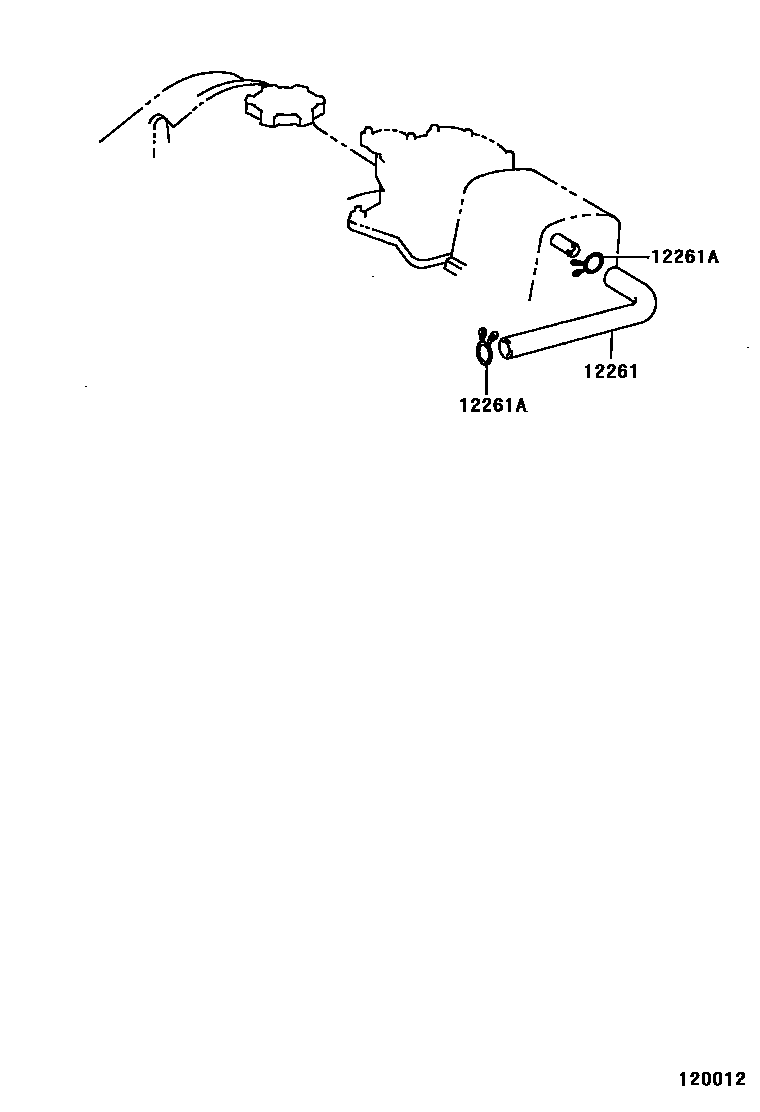

Parts diagram

12261HOSE, VENTILATION

main12260-74040i199711-199901

main12261-64210i199709

main12261-74130i199609-199711

main12261-74141i199908

main12261-74220i199901-199908

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14043i199609

main90467-18003i199709

2 parts on this diagram · 2 diagrams in section
