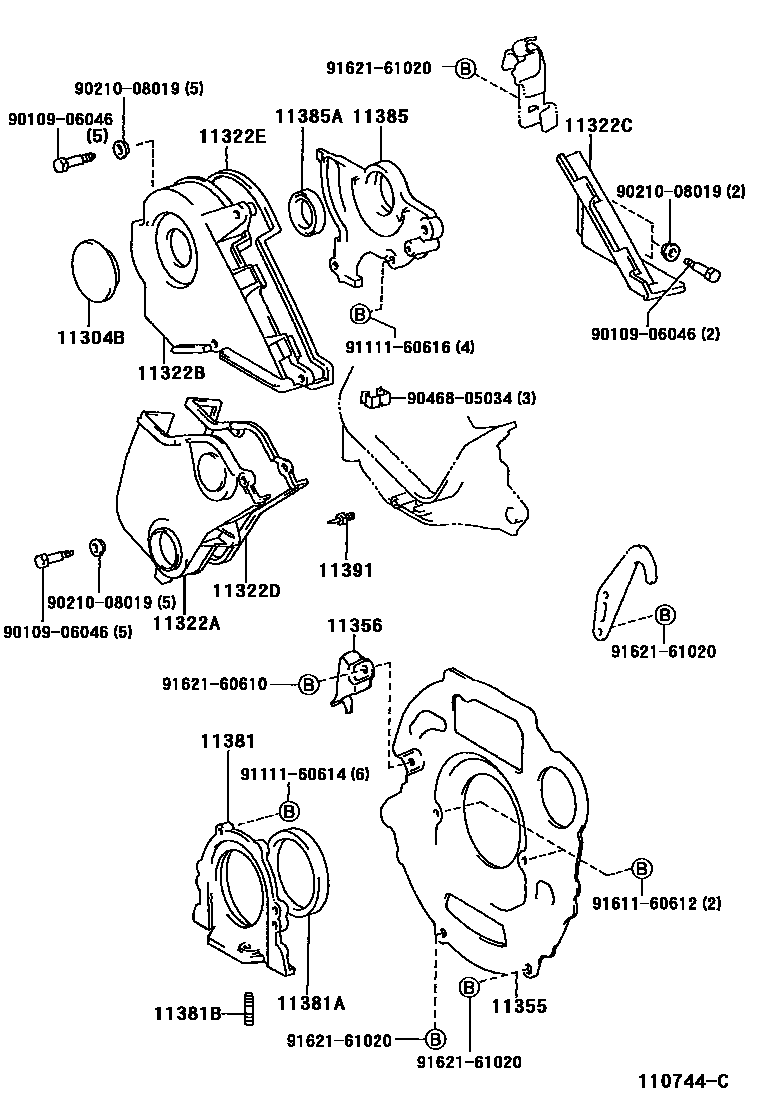

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=64
OD=33
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11356PLATE, REAR END, NO.2
11381ASEAL, ENGINE REAR OIL
NOK
ARS
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
11385RETAINER, CAMSHAFT OIL SEAL
11391POINTER, TIMING
9010906046
main90109-06046
9021008019
main90210-08019
9046805034
main90468-05034
9111160614
main91111-60614
9111160616
main91111-60616
9161160612
main91611-60612
9162160610
main91621-60610
9162161020
main91621-61020
23 parts on this diagram · 2 diagrams in section
