STANDARD TOOL

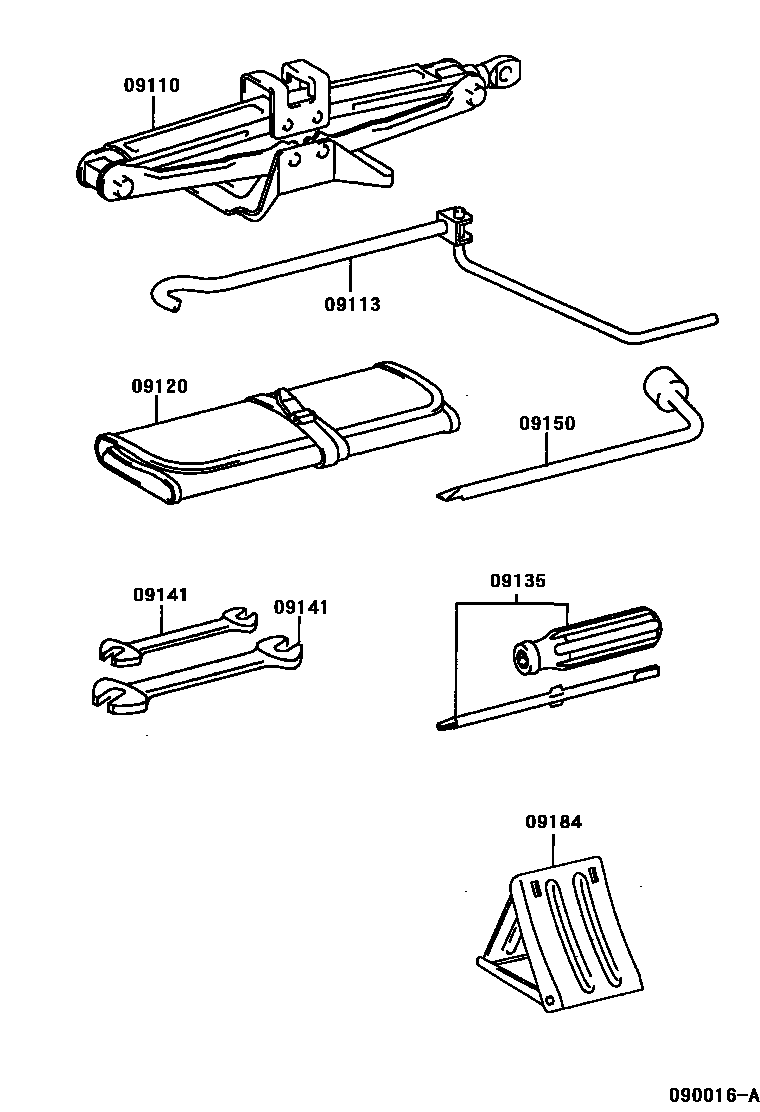

Parts diagram

09110JACK ASSY

main09111-44010i199609

09113HANDLE, JACK

main09113-44010i199609

09120BAG, TOOL

main09120-16030i199609

09135DRIVER, SCREW

main99915-10700i199609

09141SPANNER

main99914-10810i199609

8 X 10

main99914-11214i199609

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i199609

09184STOPPER, WHEEL

main09184-00010i199609-199708

7 parts on this diagram · 1 diagram in section
