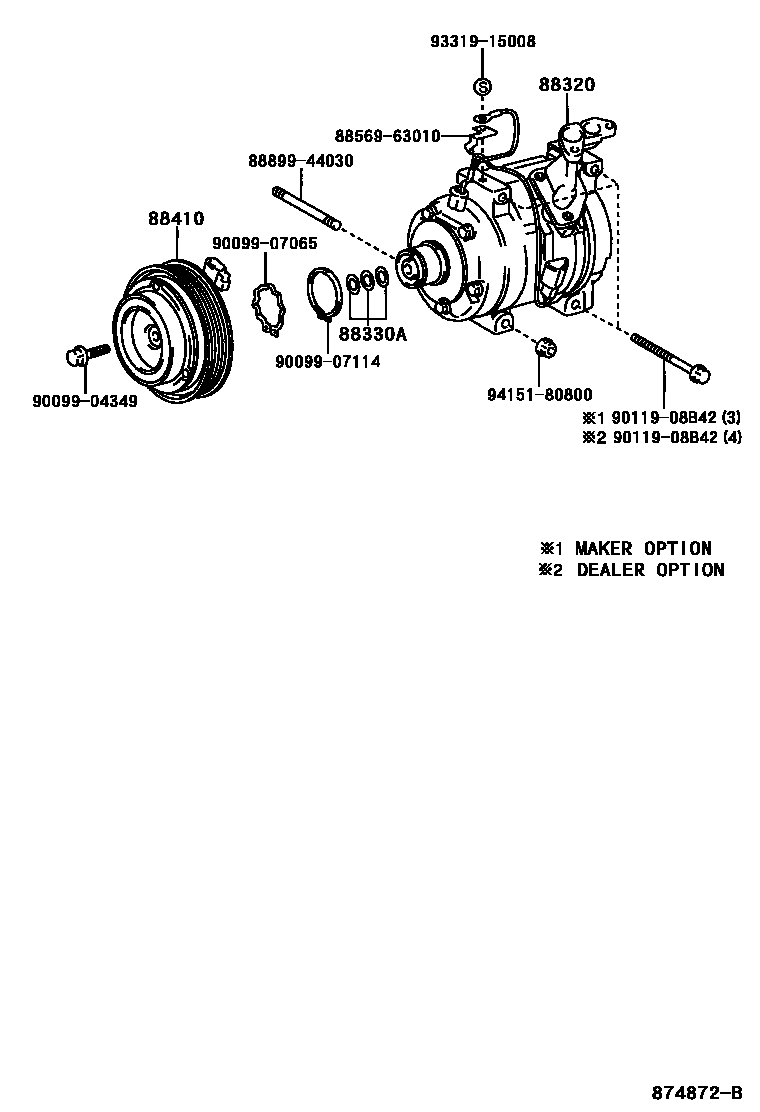

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-44120iACM20..EUR200310-200507

main88320-44120iACM20..EUR200105-200310

W(MANUAL AIR CONDITIONER)

main88320-44130iACM20..GEN200310-200507

W(REAR COOLER)

main88320-44130iACM20200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88320-44140iCLM20200105-200310

W(MANUAL AIR CONDITIONER)

main88320-44140iCLM20200310-200507

main88320-44150iCLM20200310-200507

W(REAR COOLER)

main88320-44150iCLM20200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACM20,CLM20200105-200507

88410CLUTCH ASSY, MAGNET

main88410-28200iACM20200105-200310

main88410-28230iCLM20200105-200310

main88410-35400iACM20..EUR200310-200507

main88410-44080iCLM20200310-200507

8856963010CLAMP (FOR COOLER RELAY)

main88569-63010

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
