ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-0W050iACM20,CLM20..RHD200105-200310

main86101-0W060iACM20,CLM20..LHD200105-200310

86300ANTENNA ASSY, W/HOLDER

main86300-0W020iACM20,CLM20200105-200310

main86300-44160iACM20,CLM20..RHD..EUR200310-200507

main86300-44170iACM2#,CLM20..RHD200310

W(REAR COOLER)

main86300-44180iACM20,CLM20..LHD200310-200507

main86300-44190iACM20,CLM20..LHD200310-200507

W(REAR COOLER)

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0W040iACM20,CLM20200105-200310

86398ACAP, ANTENNA SHIELD

main86398-12010iACM20,CLM20200105-200310

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9017905020

main90179-05020

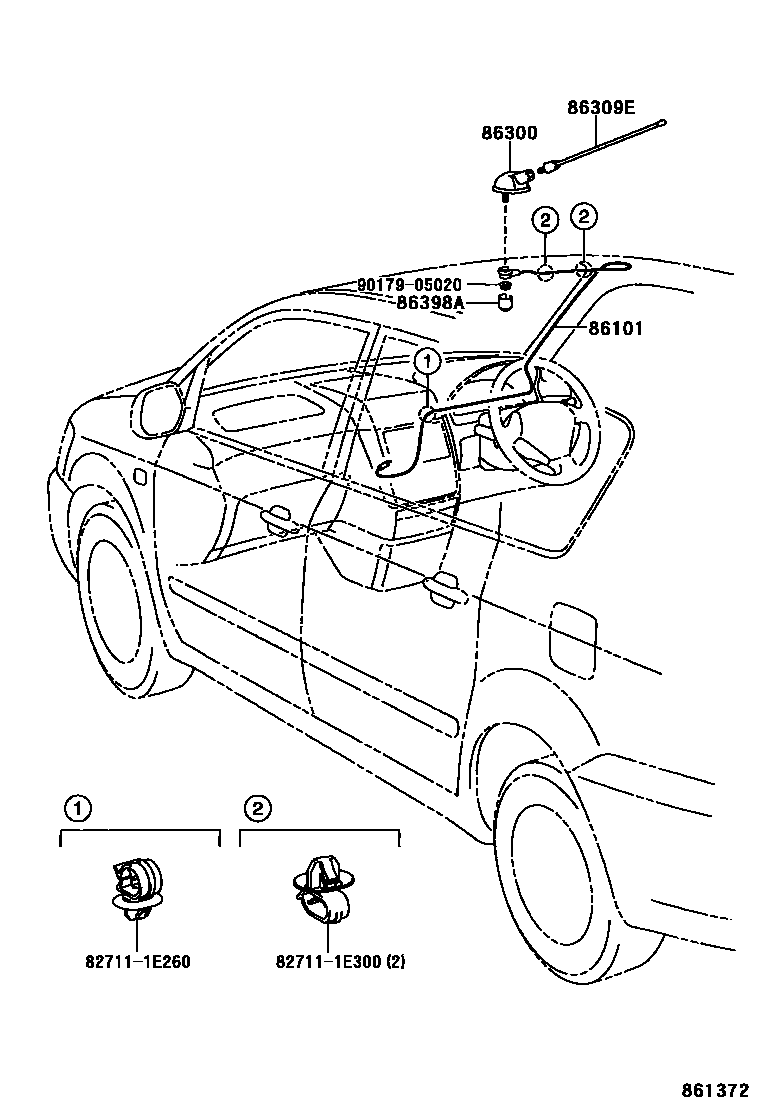

7 parts on this diagram · 2 diagrams in section
