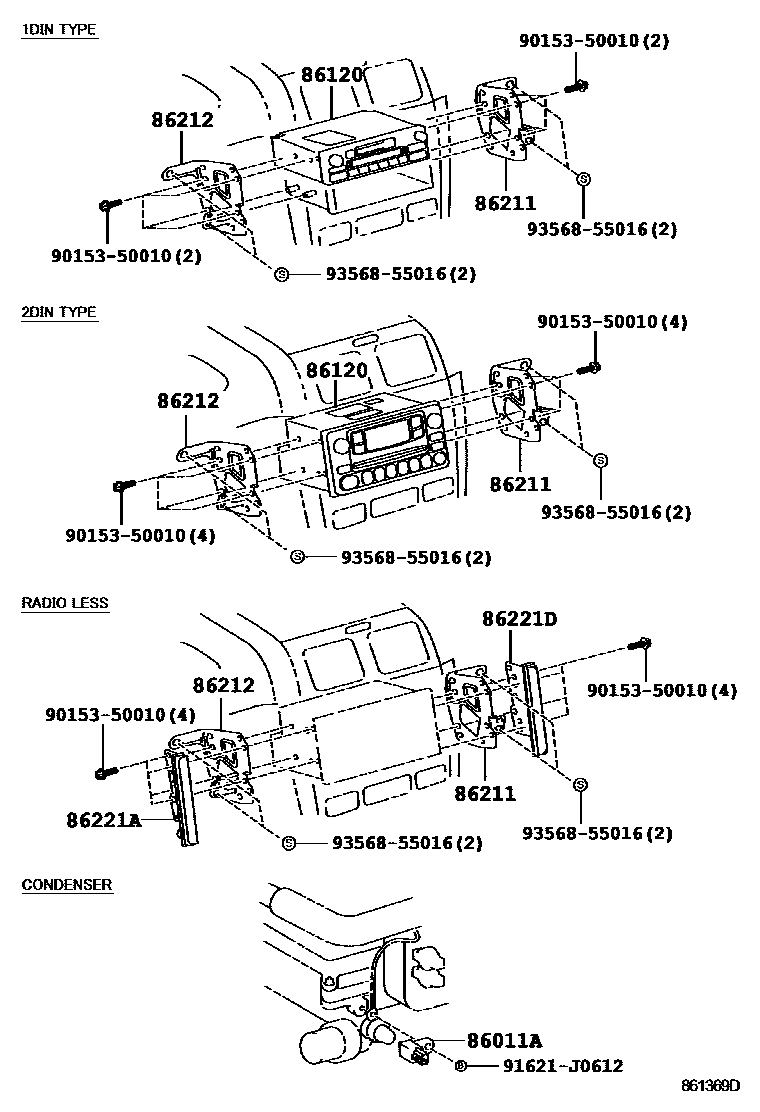

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04167iACM20200105-200310

main90980-05314iACM21200310

86120RECEIVER ASSY, RADIO

main86120-2B610iACM20..RHD..07S200105-200310

FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION

main86120-33460iACM2#..ARL,GEN200310

MATSUSHITA,ID=57412,TYPE D:REFER TO ILLUSTRATION

main86120-44080iACM20,CLM20..EUR200105-200310

MATSUSHITA,ID=58808,TYPE A:REFER TO ILLUSTRATION

main86120-44090iACM20,CLM20..EUR200105-200507

FUJITSU TEN,ID=18305,TYPE B:REFER TO ILLUSTRATION

main86120-44170iACM20,CLM20..EUR200310-200507

MATSUSHITA,ID=58813,TYPE A:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-44050iACM20,CLM20200105-200912

86212BRACKET, RADIO, NO.2

main86212-44050iACM20,CLM20200105-200912

86221APANEL, RADIO RECEIVER

main86221-52050iACM2#,CLM20200310-200912

86221DPANEL, RADIO RECEIVER

main86221-52060iACM2#,CLM20200310-200912

9015350010

main90153-50010

91621J0612

main91621-J0612

9356855016

main93568-55016

9 parts on this diagram · 2 diagrams in section
