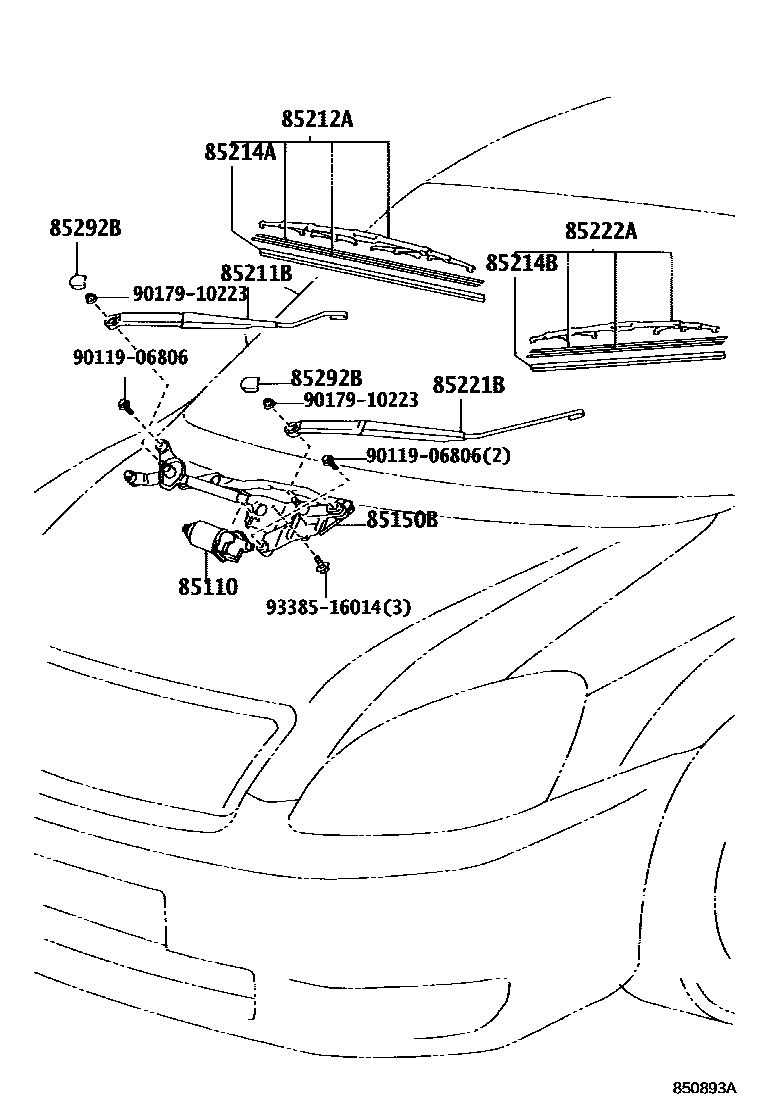

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44080iACM20..GEN¥30,200200105-200310

sub85110-44090¥30,400

main85110-44090iACM20,CLM20..RHD..EUR¥30,400200105-200507

main85110-44100iACM20,CLM20..LHD¥30,500200105-200507

main85110-44110iACM20..ARL¥30,400200110-200310

85150BLINK ASSY, WIPER

main85150-44080iACM20,CLM20..RHD..(EUR,GEN)¥10,900200105-200310

main85150-44090iACM20,CLM20..LHD200105-200507

main85150-44100iACM20..ARL200110-200310

85211BARM, FRONT WIPER, RH

main85211-44060iACM20..GEN¥5,500200105-200310

main85211-44070iACM20,CLM20..RHD..EUR¥5,500200105-200507

main85211-44080iACM20,CLM20..LHD¥6,700200105-200507

main85211-44090iACM21¥5,300200110-200310

85212ABLADE, FR WIPER, RH

main85212-13030iACM20,CLM20..LHD¥2,090200412-200507

sub85212-13031¥1,640

main85212-44070iACM20,CLM20..RHD..EUR¥6,000200105-200507

main85212-44080iACM20,CLM20..LHD¥2,090200105-200412

sub85212-13030¥2,090

main85212-44100iACM2#..ARL,GEN¥4,940200105-200801

sub85212-68010¥4,290

main85212-68010iACM2#¥4,290200802

85214ARUBBER, WIPER, RH

main85214-44130iACM2#..ARL,GEN¥1,140200105-200412

sub85214-44140¥900

main85214-44140iACM20,CLM20..RHD..EUR¥900200105-200310

main85214-50060iACM20,CLM20..LHD¥830200412-200507

sub85214-50061¥650

main85214-50130iACM20,CLM20..LHD¥960200105-200412

sub85214-50060¥830

85214BRUBBER, WIPER, LH

main85214-24050iACM21¥1,020200412-200802

sub85214-24051¥800

main85214-24051iACM21¥800200802

main85214-44140iACM20,CLM20..LHD¥900200310-200507

(J)

main85214-44140iACM20,CLM20..LHD¥900200105-200310

main85214-50060iACM20,CLM20..RHD¥830200412-200610

sub85214-50061¥650

main85214-50061iACM20¥650200610

main85214-50130iACM20,CLM20..RHD¥960200105-200412

sub85214-50060¥830

main85214-53050iACM21¥1,020200110-200412

sub85214-24050¥1,020

85221BARM, FRONT WIPER, LH

main85221-44050iACM20,CLM20..RHD¥6,700200105-200310

main85221-44060iACM20,CLM20..LHD¥5,500200105-200507

main85221-44070iACM20..ARL¥6,000200110-200310

85222ABLADE, FR WIPER, LH

main85222-13030iACM20,CLM20..RHD..EUR¥2,090200412-200507

sub85222-13031¥2,090

main85222-13041iACM20..GEN¥1,640200412-200801

main85222-43020iACM20..ARL¥3,040200207-200412

sub85222-43021¥2,400

main85222-43021iACM21¥2,400200412-200801

main85222-44060iACM20,CLM20..RHD..(EUR,GEN)¥2,090200105-200412

sub85222-13030¥2,090

main85222-44070iACM20,CLM20..LHD¥6,000200105-200507

main85222-48121iACM21¥3,040200802

main85222-53030iACM20..ARL¥3,040200110-200207

sub85222-43020¥3,040

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iACM20,CLM20¥250200105-200310

9011906806

main90119-06806¥70

9017910223

main90179-10223¥100

9338516014

main93385-16014¥80

12 parts on this diagram · 2 diagrams in section
