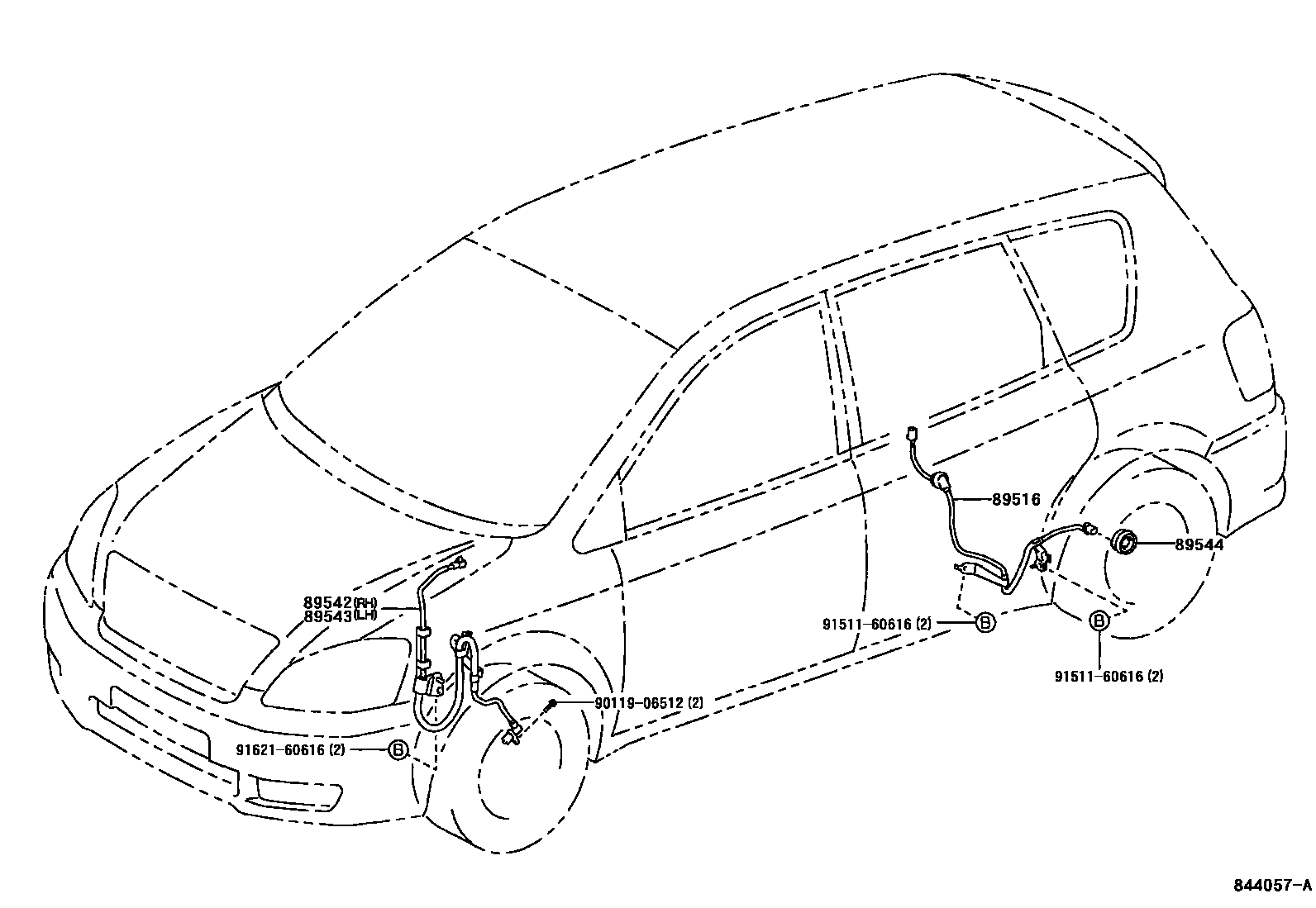

ABS & VSC

0001 1 0002 1 0003 1

89516WIRE, SKID CONTROL SENSOR

main89516-44060iACM20,CLM20¥2,290200105-200310

RH

main89516-44070iACM2#,CLM20¥2,290200105-200310

LH

89542SENSOR, SPEED, FRONT RH

main89542-44030iACM2#,CLM20¥21,700200105-200310

89543SENSOR, SPEED, FRONT LH

main89543-44030iACM2#,CLM20¥21,700200105-200310

89544SENSOR, SKID CONTROL

main89544-20010iACM2#,CLM20¥13,300200310-200912

main89544-47010iACM20,CLM20¥13,500200105-200310

sub89544-20010¥13,300

9011906512

main90119-06512¥160

9151160616

main91511-60616¥120

9162160616

main91621-60616¥90

7 parts on this diagram · 3 diagrams in section
