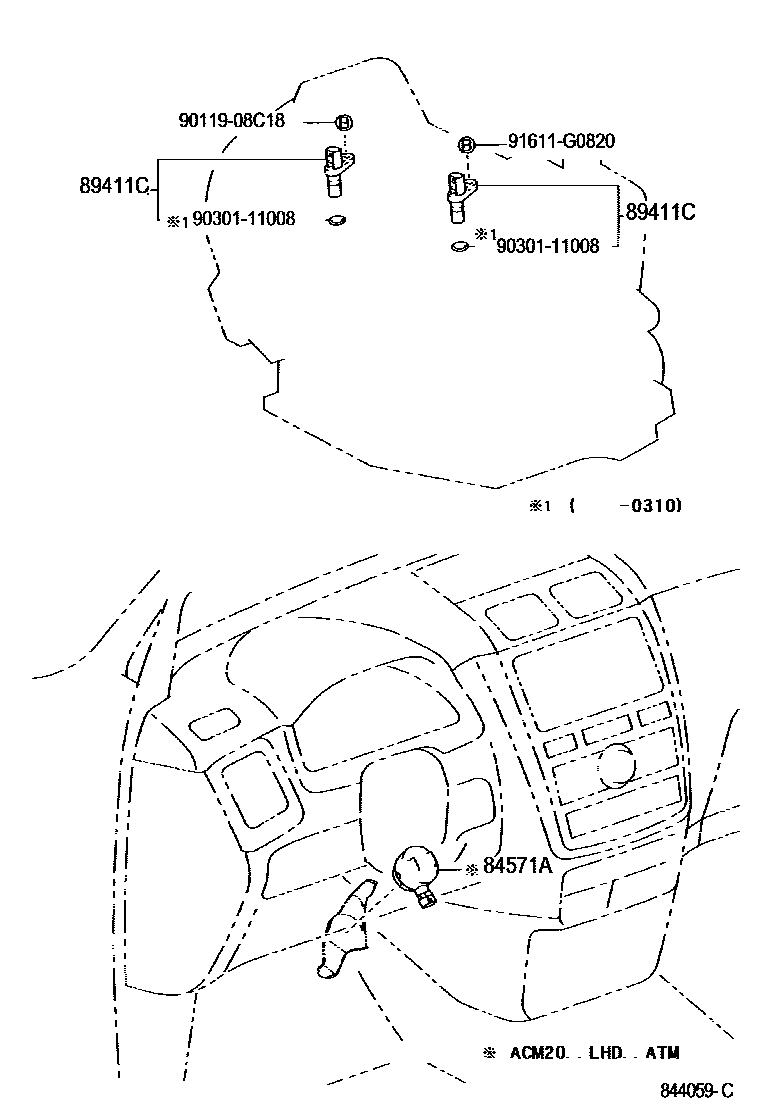

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84571ASWITCH, KICK DOWN

main84571-33010iACM20..LHD..ATM200105-200507

sub84571-24020

89411CSENSOR, SPEED

main89411-33010iACM20..ATM200105-200310

TOYOTA

sub89413-24010

main89413-24010iACM20..ATM200105-200310

AISIN

main89413-24010iACM2#..ATM200310-200912

9011908C18

main90119-08C18

9030111008

main90301-11008

91611G0820

main91611-G0820

5 parts on this diagram · 1 diagram in section
