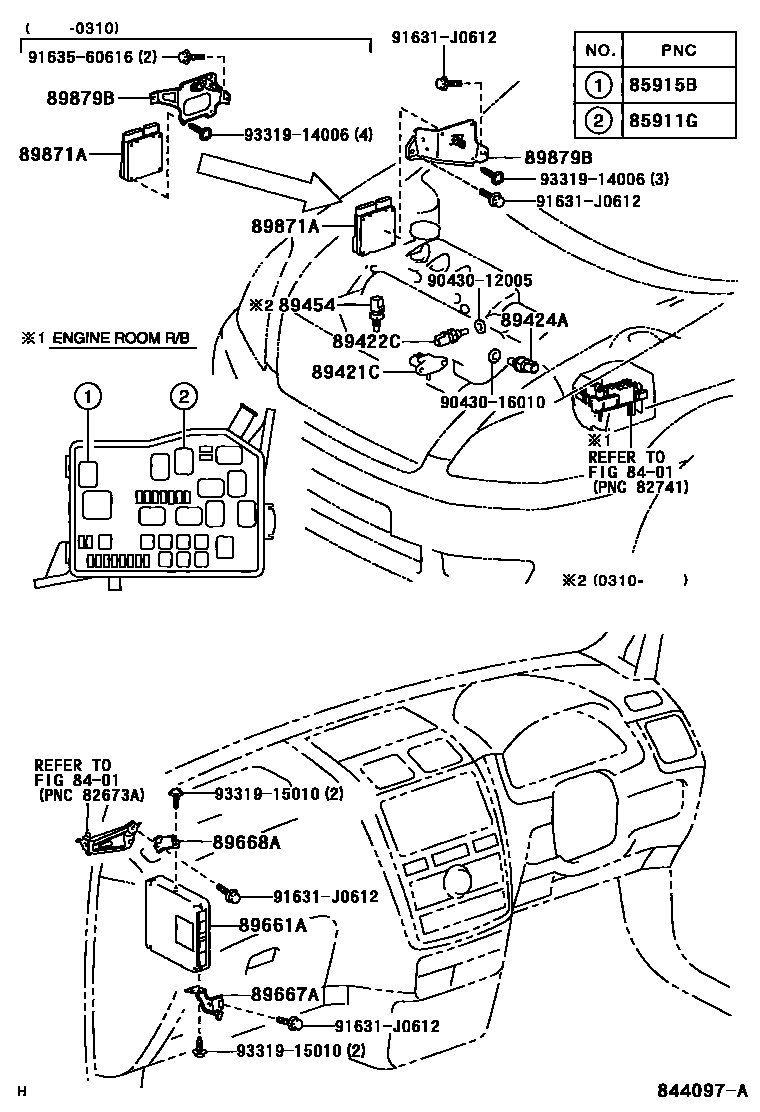

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

8401

85911GRELAY, INJECTOR DRIVER

main90987-02024iCLM20200105-200507

sub90987-02027

sub90987-02034

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02024iCLM20200105-200507

sub90987-02027

sub90987-02034

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iCLM20200105-200507

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCLM20200105-200507

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCLM20200105-200507

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCLM20200310-200507

89661ACOMPUTER, ENGINE CONTROL

main89661-44300iCLM20200105-200308

main89661-44360iCLM20200308-200507

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-44060iCLM20..RHD200105-200507

main89667-44070iCLM20..LHD200105-200507

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44090iCLM20..LHD200105-200507

main89668-44100iCLM20..RHD200105-200507

89871ADRIVER, INJECTOR

main89871-20030iCLM20200105-200310

main89871-26010iCLM20200310-200507

89879BBRACKET, INJECTOR DRIVER

main89879-44030iCLM20200105-200310

main89879-44050iCLM20200310-200507

9043012005

main90430-12005

9043016010

main90430-16010

91631J0612

main91631-J0612

9163560616

main91635-60616

9331914006

main93319-14006

9331915010

main93319-15010

18 parts on this diagram · 2 diagrams in section
