MUDGUARD & SPOILER

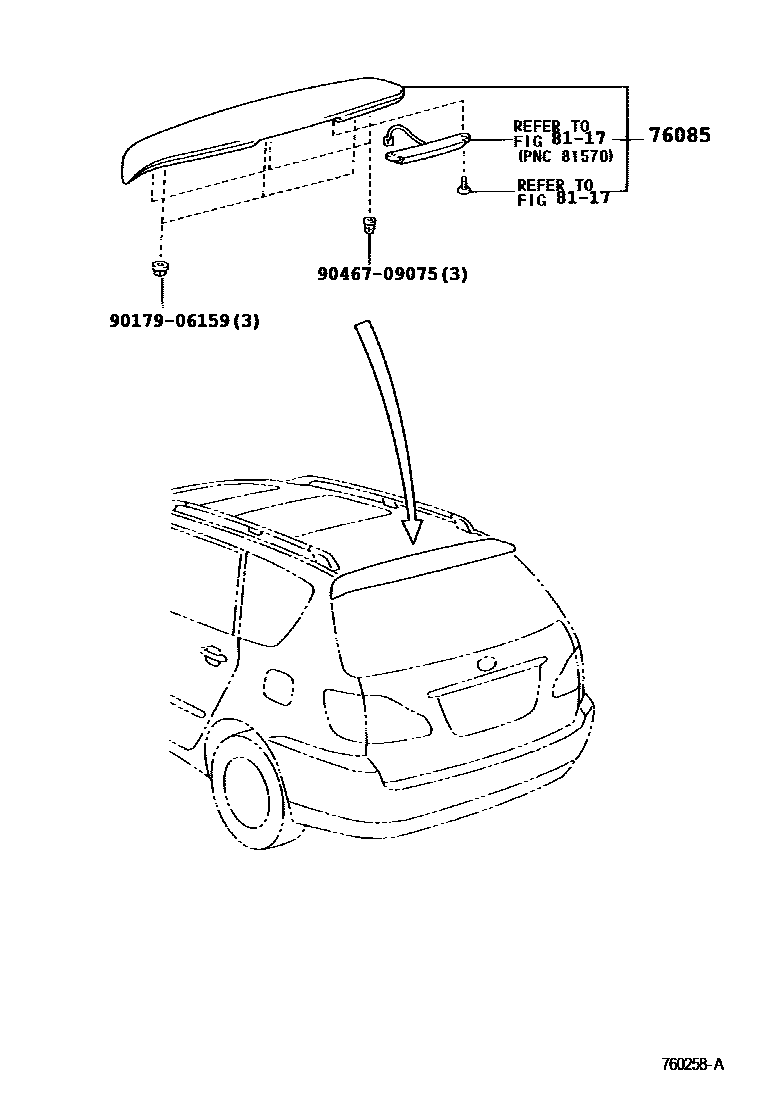

Parts diagram

76085SPOILER SUB-ASSY, REAR

main76085-44060-A0i200110-200508

SUPER WHITE 2,040

main76085-44060-B0i200110-200310

SILVER ME.,1C0

main76085-44060-B1i200110-200310

DARK GRAY M.M.,1E2

main76085-44060-B2i200310-200508

SILVER ME.,1D4

main76085-44060-C0i200310-200508

BLACK,202

main76085-44060-D0i200110-200310

RED MC.,3M8

main76085-44060-D4i200310-200508

DK. RED M.M.,3Q3

main76085-44060-F0i200110-200310

CHAMPAGNE M.M.,587

main76085-44060-F1i200310-200508

YELLOW M.M.,580

main76085-44060-G0i200110-200508

DARK GREEN MC.,6R4

main76085-44060-H0i200110-200310

AQUA ME.,771

main76085-44060-J0i200110-200310

DK.BLUE M.M.,8P4

main76085-44060-J1i200310-200508

LT.PURPLISH BLUE M.M.,8K2

main76085-44060-J2i200310-200508

BLUE MC.,8M6

main76085-44080-A0i200508-200912

SUPER WHITE 2,040

main76085-44080-B0i200508-200912

SILVER ME.,1D4

main76085-44080-C0i200508-200912

BLACK,202

main76085-44080-D1i200508-200912

DK. RED M.M.,3Q3

main76085-44080-F0i200508-200706

YELLOW M.M.,580

main76085-44080-G0i200508-200706

DARK GREEN MC.,6R4

main76085-44080-J0i200508-200912

LT.PURPLISH BLUE M.M.,8K2

main76085-44080-J1i200508-200912

BLUE MC.,8M6

8117

9017906159

main90179-06159

9046709075

main90467-09075

4 parts on this diagram · 1 diagram in section
