REAR MOULDING

76811GARNISH, BACK DOOR, OUTSIDE

main76811-44010iACM20,CLM20200105-200310

main76811-44030-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

main76811-44030-B2iACM2#,CLM20200310-200912

SILVER ME.,1D4

main76811-44030-C0iACM2#,CLM20200310-200912

BLACK,202

main76811-44030-D2iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

main76811-44030-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

main76811-44030-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

main76811-44030-J1iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

main76811-44030-J2iACM2#,CLM20200310-200912

BLUE MC.,8M6

main76811-44040-A0iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),SUPER WHITE 2,040

sub76811-44020

main76811-44040-B2iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),SILVER ME.,1D4

sub76811-44020

main76811-44040-C0iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),BLACK,202

sub76811-44020

main76811-44040-D2iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),DK. RED M.M.,3Q3

sub76811-44020

main76811-44040-F0iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),YELLOW M.M.,580

sub76811-44020

main76811-44040-G0iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),DARK GREEN MC.,6R4

sub76811-44020

main76811-44040-J1iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),LT.PURPLISH BLUE M.M.,8K2

sub76811-44020

main76811-44040-J2iACM20,CLM20..EUR200310-200507

W(BACK MONITOR),BLUE MC.,8M6

sub76811-44020

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-44010iACM20,CLM20200105-200310

7681744020CLIP, BACK DOOR OUTSIDE GARNISH

main76817-44020

9010906358

main90109-06358

9017906274

main90179-06274

9043005003

main90430-05003

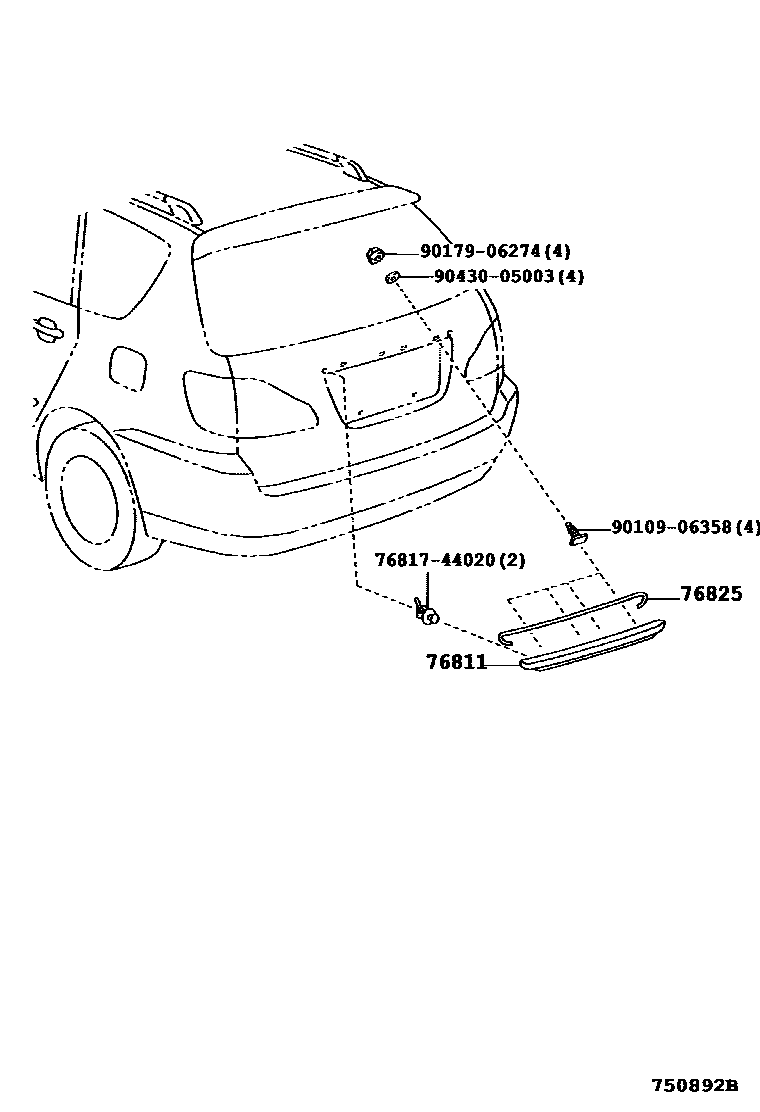

6 parts on this diagram · 1 diagram in section
