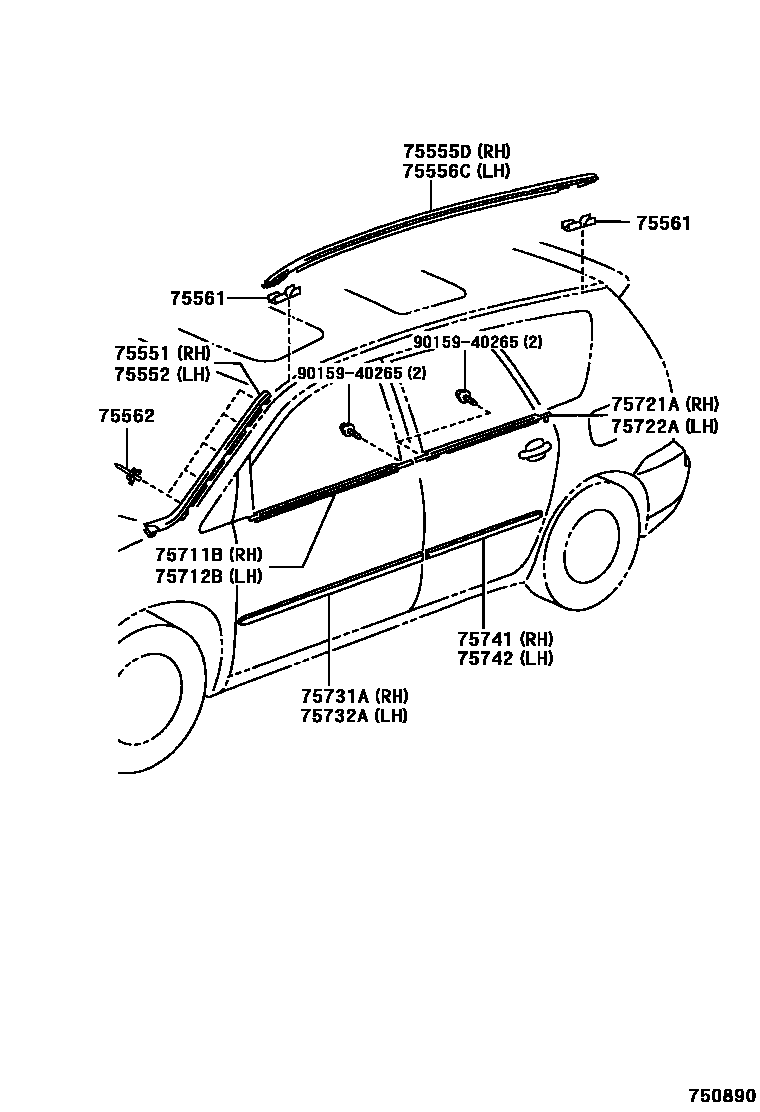

SIDE MOULDING

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-44010iACM20,CLM20¥6,900200105-200310

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-44010iACM20,CLM20¥6,900200105-200310

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-44090iACM20,CLM20¥16,600200105-200307

sub75555-44091¥16,500

main75555-44091iACM20,CLM20¥16,500200307-200310

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-44050iACM20,CLM20¥16,600200105-200306

sub75556-44051¥16,500

main75556-44051iACM20,CLM20¥16,500200307-200310

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020iACM20,CLM20¥160200105-200310

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75545-50030iACM20,CLM20¥340200105-200310

75711BMOULDING, FRONT DOOR BELT, RH

main75711-44060iACM20,CLM20¥3,060200105-200308

sub75711-44061¥3,060

main75711-44061iACM20,CLM20¥3,060200308-200310

75712BMOULDING, FRONT DOOR BELT, LH

main75712-44060iACM20,CLM20¥3,060200105-200308

sub75712-44061¥3,060

main75712-44061iACM20,CLM20¥3,060200308-200310

75721AMOULDING, REAR DOOR BELT, RH

main75721-44060iACM20,CLM20¥3,780200105-200308

sub75721-44061¥3,780

main75721-44061iACM20,CLM20¥3,780200308-200310

75722AMOULDING, REAR DOOR BELT, LH

main75722-44060iACM20,CLM20¥3,780200105-200308

sub75722-44061¥3,780

main75722-44061iACM20,CLM20¥3,780200308-200310

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-44010iACM20,CLM20¥6,300200105-200109

sub75731-44011¥6,300

main75731-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub75731-44020¥7,200

main75731-44020-B2iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub75731-44020¥7,200

main75731-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub75731-44020¥7,200

main75731-44020-D2iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub75731-44020¥7,200

main75731-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub75731-44020¥7,200

main75731-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub75731-44020¥7,200

main75731-44020-J1iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub75731-44020¥7,200

main75731-44020-J2iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub75731-44020¥7,200

main75731-44031iACM20,CLM20¥6,200200109-200310

sub75731-44032¥6,200

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-44010iACM20,CLM20¥6,300200105-200109

sub75732-44011¥6,300

main75732-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub75732-44020¥7,200

main75732-44020-B2iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub75732-44020¥7,200

main75732-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub75732-44020¥7,200

main75732-44020-D2iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub75732-44020¥7,200

main75732-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub75732-44020¥7,200

main75732-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub75732-44020¥7,200

main75732-44020-J1iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub75732-44020¥7,200

main75732-44020-J2iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub75732-44020¥7,200

main75732-44031iACM20,CLM20¥6,200200109-200310

sub75732-44032¥6,200

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-44010iACM20,CLM20¥6,300200105-200109

sub75741-44011¥6,300

main75741-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub75741-44020¥7,200

main75741-44020-B2iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub75741-44020¥7,200

main75741-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub75741-44020¥7,200

main75741-44020-D2iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub75741-44020¥7,200

main75741-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub75741-44020¥7,200

main75741-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub75741-44020¥7,200

main75741-44020-J1iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub75741-44020¥7,200

main75741-44020-J2iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub75741-44020¥7,200

main75741-44031iACM20,CLM20¥6,200200109-200310

sub75741-44032¥6,200

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-44010iACM20,CLM20¥6,300200105-200109

sub75742-44011¥6,300

main75742-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub75742-44020¥7,200

main75742-44020-B2iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub75742-44020¥7,200

main75742-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub75742-44020¥7,200

main75742-44020-D2iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub75742-44020¥7,200

main75742-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub75742-44020¥7,200

main75742-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub75742-44020¥7,200

main75742-44020-J1iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub75742-44020¥7,200

main75742-44020-J2iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub75742-44020¥7,200

main75742-44031iACM20,CLM20¥6,200200109-200310

sub75742-44032¥6,200

9015940265

main90159-40265¥110

15 parts on this diagram · 1 diagram in section
