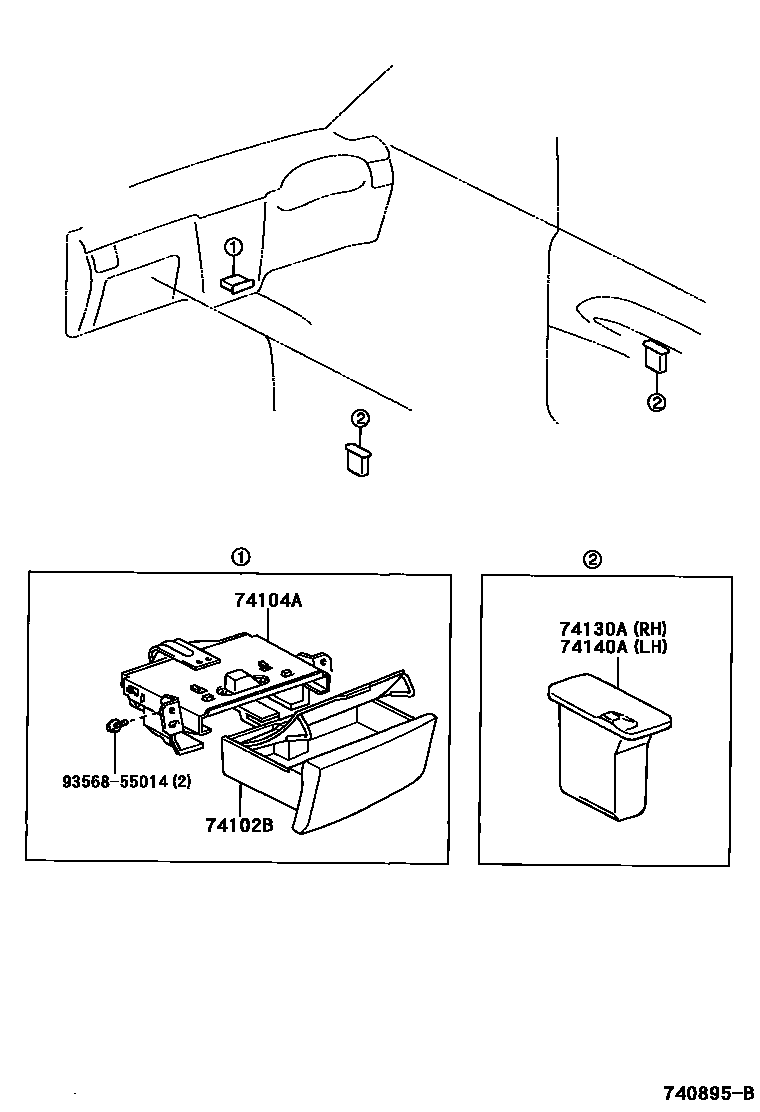

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-44030-A0iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

sub74102-44030

main74102-44030-B0iACM20,CLM20..EUR200105-200310

MD.GRAY,TRIM1#

sub74102-44030

main74102-44030-B1iACM2#,CLM20..ARL,EUR200310-200912

DK.GRAY,TRIM1#

sub74102-44030

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-44040iACM20,CLM20200105-200310

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-44070-A0iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

sub74130-44070

main74130-44070-B0iACM20,CLM20..EUR200105-200310

MD.GRAY,TRIM1#

sub74130-44070

main74130-44070-C0iACM2#,CLM20..ARL,EUR200310-200912

BLACK,TRIM1#

sub74130-44070

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-44020-A0iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

sub74140-44020

main74140-44020-B0iACM20,CLM20..EUR200105-200310

MD.GRAY,TRIM1#

sub74140-44020

main74140-44020-C0iACM2#,CLM20..ARL,EUR200310-200912

BLACK,TRIM1#

sub74140-44020

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
