LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-44060iACM20..ARL,GEN¥4,010200105-200310

main69051-44070iACM20,CLM20..LHD¥4,010200105-200310

main69051-44080iACM20,CLM20..RHD..EUR¥4,640200105-200507

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-44060iACM20..ARL,GEN;ACM20,CLM20..LHD¥4,010200105-200310

main69052-44070iACM20,CLM20..RHD..EUR¥4,010200105-200507

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-44010iACM20,CLM20..RHD..EUR¥7,100200105-200507

sub69056-60160¥4,760

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-44050iACM2#,CLM20..ARL,EUR¥13,400200105-200511

sub69057-44051¥12,100

main69057-44051iACM21¥12,100200512

main69057-44090iACM20..GEN¥7,700200105-200310

69503CYLINDER SET, LOCK

main69005-44100iACM20,CLM20..LHD¥43,300200105-200310

main69005-44120iACM20..ARL¥37,800200110-200310

main69005-44130iACM20..GEN¥34,800200105-200310

main69005-44150iACM20,CLM20..RHD..EUR¥43,300200105-200310

main69005-44310iACM20,CLM20..RHD..EUR¥13,200200310-200507

main69005-44320iACM21;ACM20,CLM20..LHD¥21,400200310-200511

sub69005-44321

main69005-44321iACM21200512

main69005-44330iACM20..GEN¥17,100200310-200511

sub69005-44331

main69005-44331iACM20200512

69503AKEY, BLANK

main90999-00199iACM20..GEN¥2,140200105-200310

MASTER KEY,W(*68)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-28470iACM2#,CLM20..ARL,EUR200308-200511

sub89070-28471

main89070-28471iACM21200512

sub89070-28472

main89070-44080iACM20..ARL;ACM20..RHD..07S..ATM..EUR200105-200310

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

sub89070-44081

main89070-44090iACM20..EUR200105-200310

W(ANTI-THEFT DEVICE:IMMOBILIZER)

sub89070-42211

main89070-44100iACM20..GEN200105-200511

SINGAPORE SPEC

sub89070-44102

main89070-44101iACM20200512-200605

SINGAPORE SPEC

sub89070-44102

main89070-44102iACM20200606

SINGAPORE SPEC

main89070-44110iACM20..GEN200105-200604

HONG KONG SPEC

sub89070-44111

main89070-44111iACM20200605

HONG KONG SPEC

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-28040iACM20..GEN200105-200310

HONG KONG SPEC

main89071-33100iACM20..GEN200105-200310

SINGAPORE SPEC

main89071-42050iACM2#,CLM20..ARL,EUR¥16,500200308-200310

main89071-60030iACM20..ARL;ACM20..RHD..07S..ATM..EUR¥16,500200105-200112

main89071-60030iACM20..RHD..07S..(ARL,EUR)¥16,500200112-200310

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

main89071-60081iACM20,CLM20..EUR¥16,500200105-200310

W(ANTI-THEFT DEVICE:IMMOBILIZER)

89745ABATTERY, TRANSMITTER

main89745-40010iACM20,CLM20¥440200105-200310

89751ACOVER, TRANSMITTER HOUSING

main89751-13010iACM20,CLM20..EUR¥940200105-200507

EUROPEAN POSSESSION SPEC

sub89751-13012¥670

main89751-13010iACM21¥940200310-200512

sub89751-13012¥670

main89751-13011iACM21200512

sub89751-13012¥670

main89751-44020iACM20..RHD..07S..(ARL,EUR)¥940200105-200310

sub89751-44021¥940

main89751-44030iACM20..GEN¥940200105-200511

SINGAPORE SPEC

sub89751-44031

main89751-44031iACM20200512-200605

SINGAPORE SPEC

sub89751-44032¥940

main89751-44032iACM20¥940200606

SINGAPORE SPEC

main89751-44040iACM20..GEN¥940200105-200605

HONG KONG SPEC

sub89751-44041

main89751-44041iACM20200605

HONG KONG SPEC

89752ACASE, TRANSMITTER HOUSING

main89752-13020iACM2#,CLM20¥2,760200310-200912

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iACM20,CLM20..ARL,EUR¥3,720200105-200310

main89786-60170iACM2#,CLM20..ARL,EUR¥3,090200310

BLANK KEY

main89786-60170iCLM20¥3,090200308-200310

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020¥100

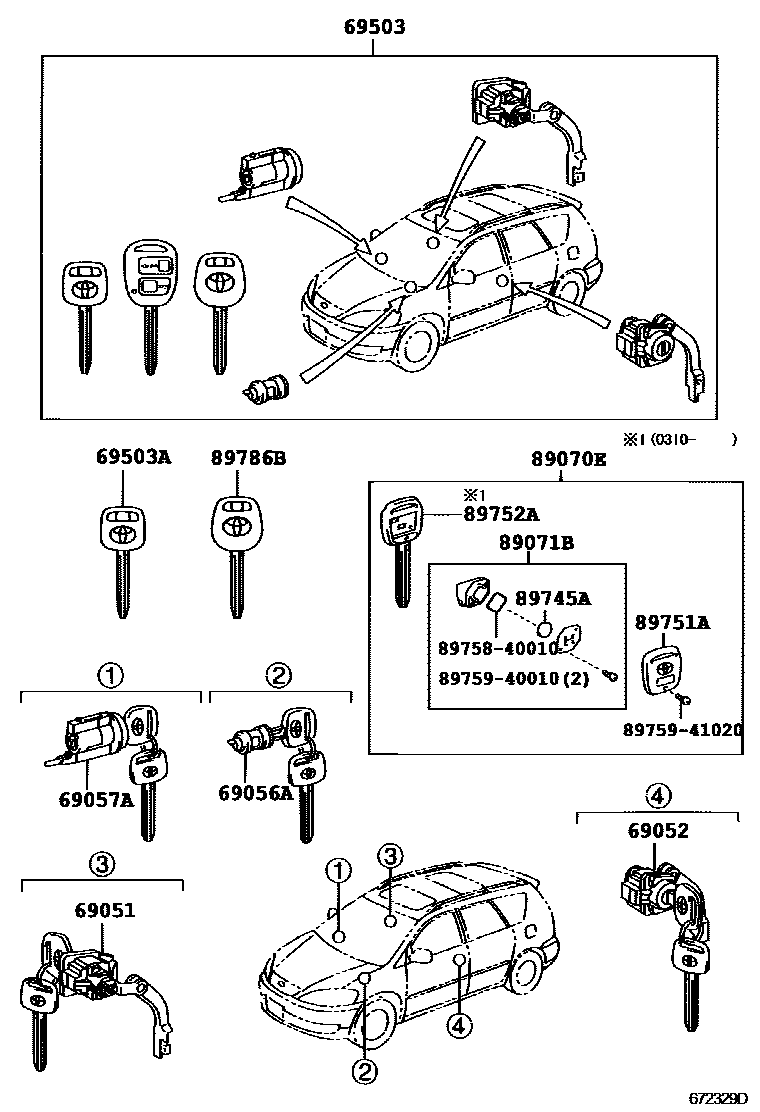

15 parts on this diagram · 2 diagrams in section
