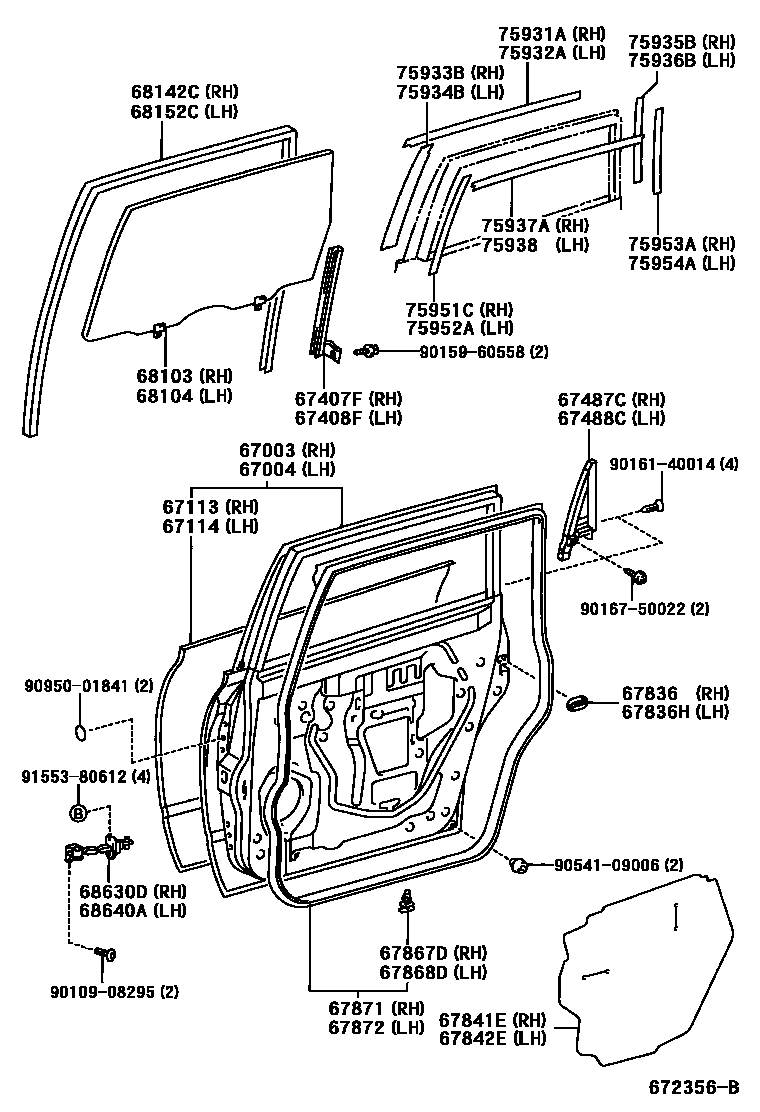

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5,GREEN
*TT,T=3.5,DK.GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5,GREEN
*TT,T=3.5,DK.GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75931ATAPE, BLACK OUT, OUTER UPPER RH
75932ATAPE, BLACK OUT, OUTER UPPER LH
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
75935BTAPE, BLACK OUT, OUTER REAR RH
75936BTAPE, BLACK OUT, OUTER REAR LH
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
9010908295
9015960558
9016140014
9016750022
9054109006
9095001841
9155380612
41 parts on this diagram · 2 diagrams in section
