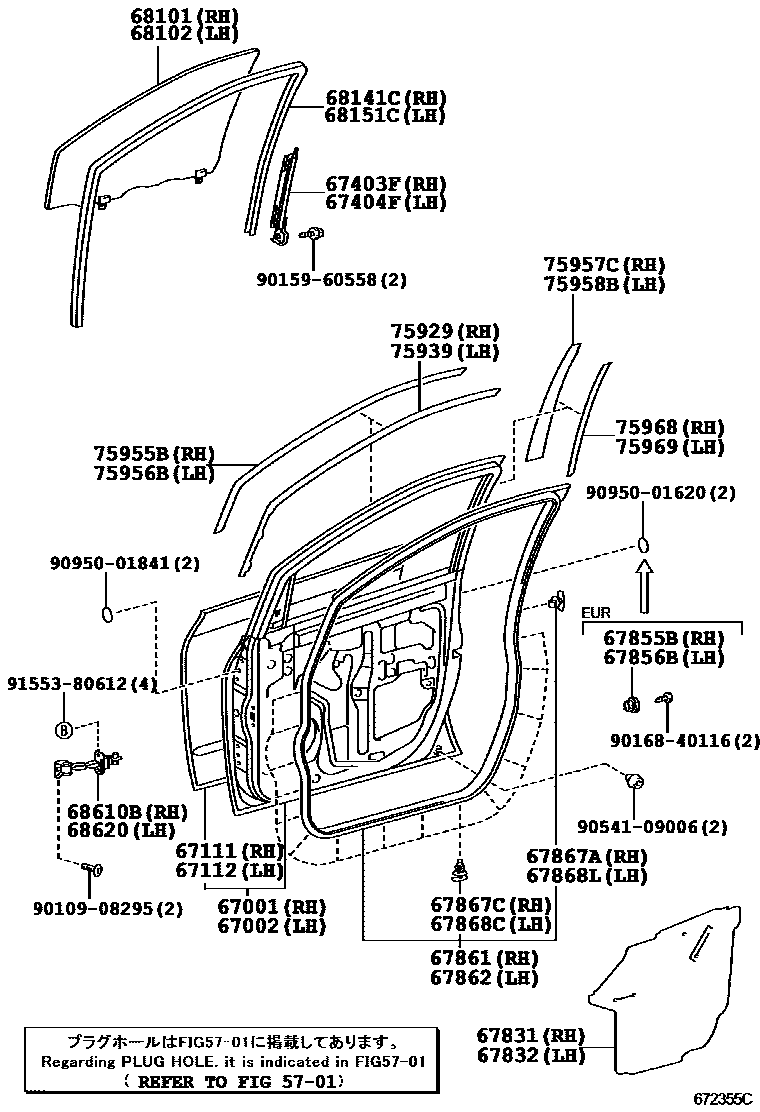

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
9010908295
main90109-08295
9015960558
main90159-60558
9016840116
main90168-40116
9054109006
main90541-09006
9095001620
main90950-01620
9095001841
main90950-01841
9155380612
main91553-80612
38 parts on this diagram · 2 diagrams in section
