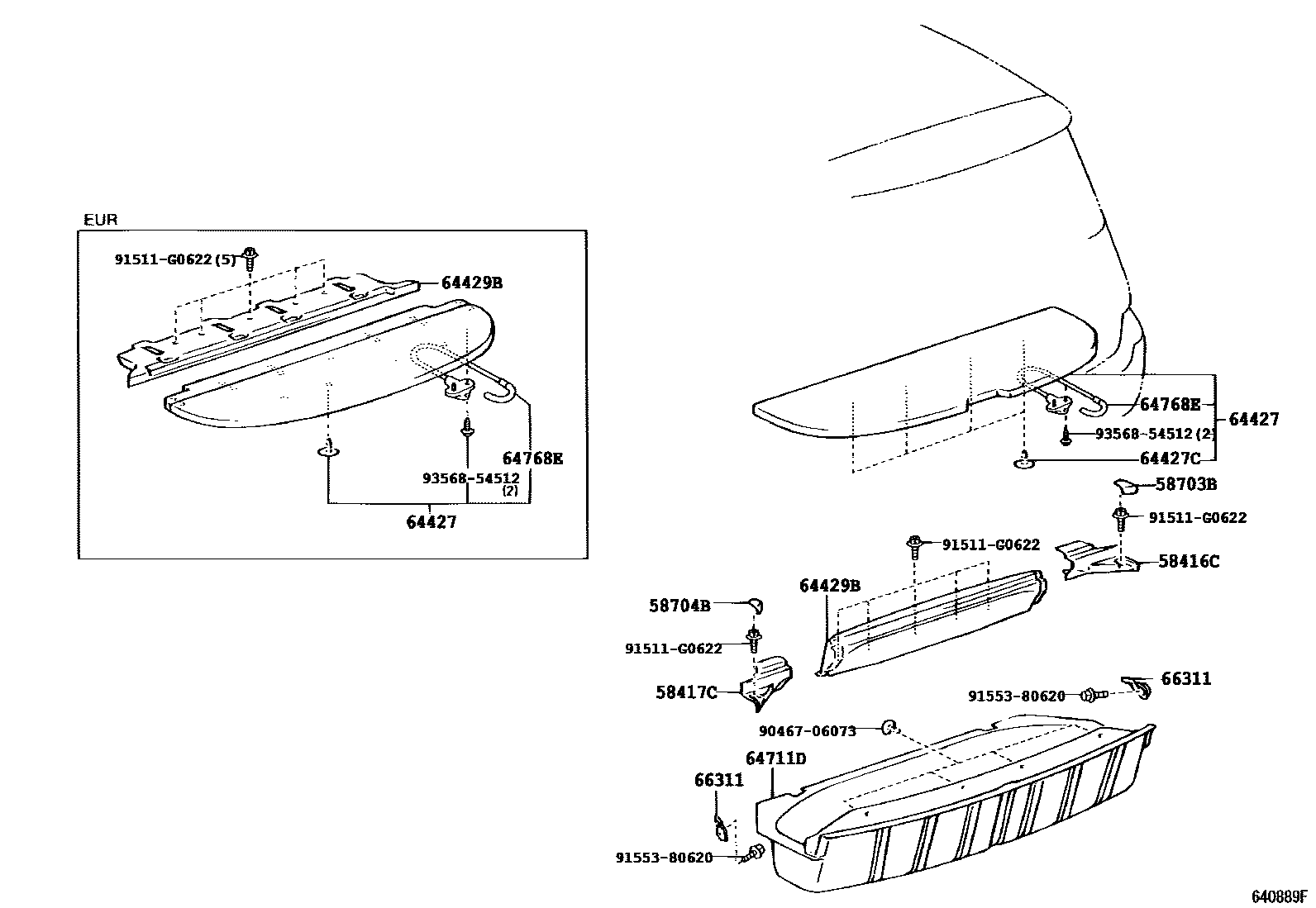

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-44020-A0iACM20..GEN200310-200912

IVORY,TRIM07

sub58416-44020¥4,040

main58416-44020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

sub58416-44020¥4,040

main58416-44020-C0iACM21200310-200912

BLACK,TRIM1#

sub58416-44020¥4,040

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

sub58417-44010¥4,040

main58417-44010-A0iACM20..GEN200310-200912

IVORY,TRIM07

sub58417-44010¥4,040

main58417-44010-C0iACM21200310-200912

BLACK,TRIM1#

sub58417-44010¥4,040

58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main64439-44020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

sub64439-44020¥700

main64439-44020-A0iACM20..GEN200310-200912

IVORY,TRIM07

sub64439-44020¥700

main64439-44020-C0iACM21200310-200912

BLACK,TRIM1#

sub64439-44020¥700

58704BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main64449-44020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

sub64449-44020¥700

main64449-44020-A0iACM20..GEN200310-200912

IVORY,TRIM07

sub64449-44020¥700

main64449-44020-C0iACM21200310-200912

BLACK,TRIM1#

sub64449-44020¥700

64427LID, LUGGAGE ROOM BOX

main64420-44040-A0iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

sub64420-44040¥32,200

main64420-44040-B2iACM21200310-200912

BLACK,TRIM1#

sub64420-44040¥32,200

main64420-44050-B0iACM20,CLM20..EUR200105-200107

MEDIUM GRAY,TRIM1#

sub64420-44050¥38,100

main64420-44050-B1iACM20,CLM20..EUR200107-200310

MEDIUM GRAY,TRIM1#

sub64420-44050¥38,100

main64420-44050-B2iACM20,CLM20..EUR200310-200507

BLACK,TRIM1#

sub64420-44050¥38,100

64427CCLIP(FOR LUGGAGE ROOM BOX LID)

main90467-06052-22iACM20,CLM20..EUR200105-200912

BLACK,TRIM0#

sub90467-06052¥140

sub71731-26020¥360

main90467-06052-22iACM20..ARL,GEN200105-200912

BLACK,TRIM1#

sub90467-06052¥140

sub71731-26020¥360

64429BBOX, LUGGAGE ROOM

main64429-44070-A0iACM20..GEN200310-200912

IVORY,TRIM07

sub64429-44070¥16,300

main64429-44070-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

sub64429-44070¥16,300

main64429-44070-C0iACM21200310-200912

BLACK,TRIM1#

sub64429-44070¥16,300

main64429-44070-C0iACM21200310-200912

BLACK,TRIM07

sub64429-44070¥16,300

main64429-44080-C0iACM20,CLM20..EUR200105-200507

BLACK,TRIM1#

64711DCARPET, LUGGAGE COMPARTMENT FLOOR

main64711-44010iACM2#..ARL,GEN¥13,500200105-200310

main64711-44030iACM20,CLM20..EUR¥13,500200105-200507

64768ESTOPPER, QUARTER TRIM LID

main64768-44020iACM20..ARL,GEN¥970200105-200310

main64768-44030iACM20,CLM20..EUR¥1,260200105-200507

66311HOOK, ROPE

main66310-31010-A0iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

main66310-31010-B2iACM20,CLM20..EUR200105-200310

MD.GRAY,TRIM1#

main66310-31010-B3iACM2#,CLM20..ARL,EUR200310-200912

DK.GRAY,TRIM1#

9046706073

main90467-06073¥120

91511G0622

main91511-G0622¥120

9155380620

main91553-80620¥60

9356854512

main93568-54512¥70

14 parts on this diagram · 2 diagrams in section
