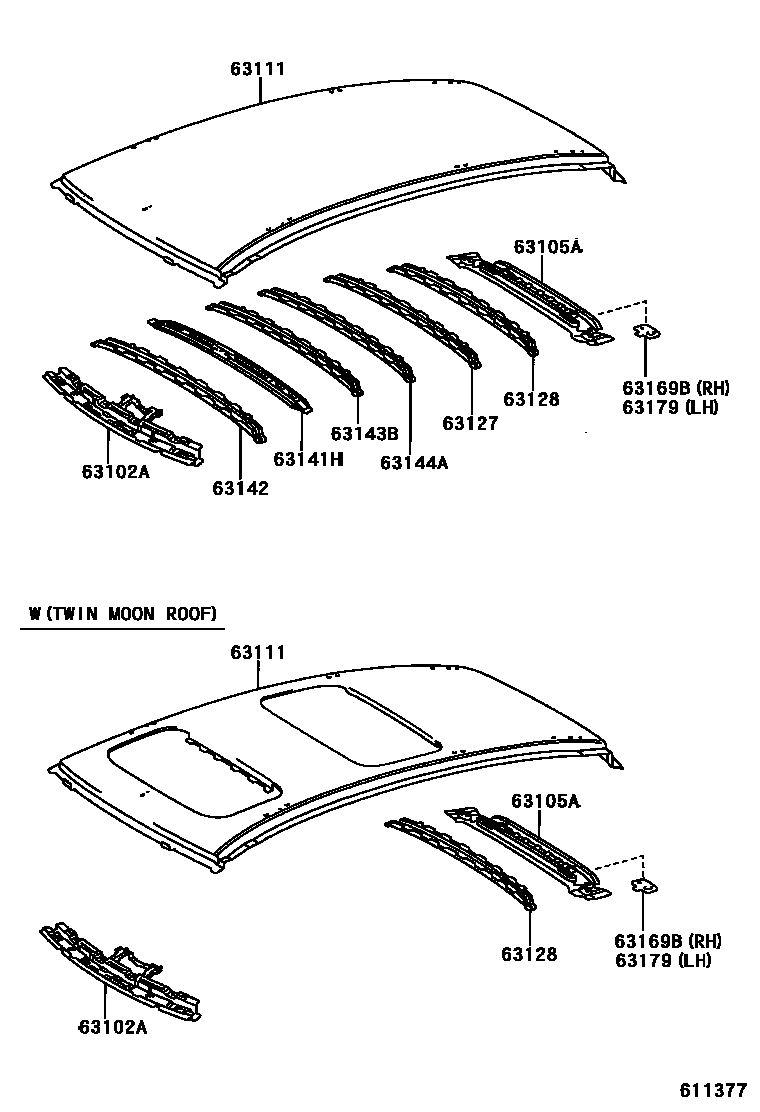

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF RAIL 0003 1TWIN MOON ROOF 0004 1TWIN MOON ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-44040iACM20,CLM20200105-200310

main63102-44050iACM20,CLM20200105-200310

W(TWIN MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-44010iACM20,CLM20200105-200310

63111PANEL, ROOF

main63111-44110iACM2#,CLM20200310

main63111-44120iACM20,CLM20200105-200310

main63111-44130iACM2#,CLM20200310

W(TWIN MOON ROOF)

main63111-44140iACM20,CLM20200105-200310

W(TWIN MOON ROOF)

main63111-44150iACM2#,CLM20200310

W(ROOF RAIL)

main63111-44160iACM20,CLM20200105-200310

W(ROOF RAIL)

main63111-44170iACM2#,CLM20200310

W(TWIN MOON ROOF & ROOF RAIL)

main63111-44180iACM20,CLM20200105-200310

W(TWIN MOON ROOF & ROOF RAIL)

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-44030iACM20,CLM20200105-200310

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-44020iACM20,CLM20200105-200310

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-44040iACM20,CLM20200105-200310

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-44040iACM20,CLM20200105-200310

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-44040iACM20,CLM20200105-200310

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-44040iACM20,CLM20200105-200310

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-44010iACM20,CLM20200105-200310

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-44010iACM20,CLM20200105-200310

11 parts on this diagram · 4 diagrams in section
