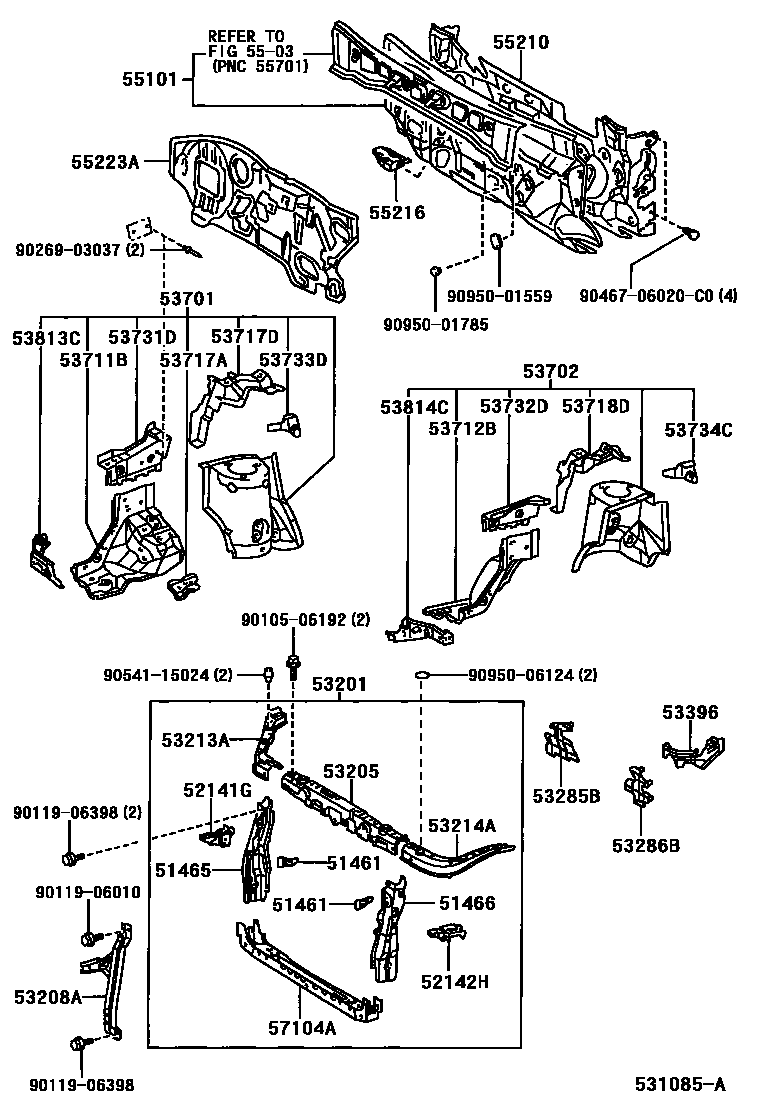

FRONT FENDER APRON & DASH PANEL
51461BRACKET, RADIATOR STAY
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53396SEAL, RADIATOR SUPPORT TO HEADLAMP
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-44031
53717APLATE, FENDER APRON
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
5503
55101PANEL SUB-ASSY, DASH
sub55110-44230
sub55110-44220
sub55110-44150
W(VIN PLATE)
sub55110-44180
W(VIN PLATE)
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
9010506192
main90105-06192
9011906010
main90119-06010
9011906398
main90119-06398
9026903037
main90269-03037
9046706020C0
main90467-06020C0
9054115024
main90541-15024
9095001559
main90950-01559
9095001785
main90950-01785
9095006124
main90950-06124
41 parts on this diagram · 4 diagrams in section
