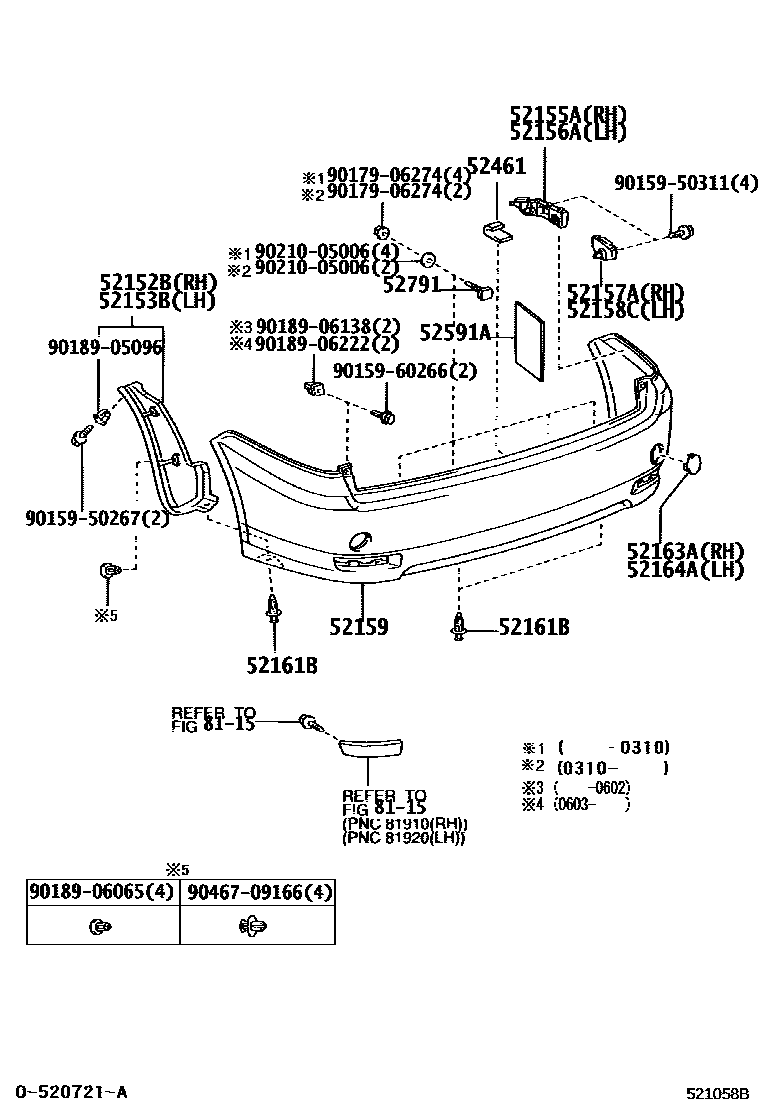

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52152-44050iACM20,CLM20200105-200310

main52152-44080iACM2#,CLM20200310

52153BEXTENSION, REAR BUMPER, LH

main52153-44050iACM20,CLM20200105-200310

main52153-44080iACM2#,CLM20200310

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-44050iACM20,CLM20200105-200605

sub52155-44051

main52155-44051iACM2#200606

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-44020iACM2#,CLM20200105-200605

sub52156-44021

main52156-44021iACM2#200606

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-28020iACM2#200606

main52157-44010iACM20,CLM20200105-200605

sub52157-28020

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-28010iACM2#200606

main52158-44010iACM2#,CLM20200105-200605

sub52158-28010

52159COVER, REAR BUMPER

main52159-44903iACM20,CLM20200105-200310

main52159-44906iACM2#,CLM20200310-200912

52161BPIECE, REAR BUMPER

main52161-16010iACM20,CLM20200105-200310

sub52161-0K040

52163APLATE, REAR BUMPER, RH

main52163-44010-A0iACM20,CLM20200105-200310

SUPER WHITE 2,040

sub52163-44900

main52163-44010-B0iACM20,CLM20200105-200310

SILVER ME.,1C0

sub52163-44900

main52163-44010-B1iACM20,CLM20200105-200310

DARK GRAY M.M.,1E2

sub52163-44900

main52163-44010-D0iACM20,CLM20200105-200310

RED MC.,3M8

sub52163-44900

main52163-44010-F0iACM20,CLM20200105-200310

CHAMPAGNE M.M.,587

sub52163-44900

main52163-44010-G0iACM20,CLM20200105-200310

DARK GREEN MC.,6R4

sub52163-44900

main52163-44010-H0iACM20,CLM20200105-200310

AQUA ME.,771

sub52163-44900

main52163-44010-J0iACM20,CLM20200105-200310

DK.BLUE M.M.,8P4

sub52163-44900

main52163-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub52163-44901

main52163-44020-B0iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub52163-44901

main52163-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub52163-44901

main52163-44020-D0iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub52163-44901

main52163-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub52163-44901

main52163-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub52163-44901

main52163-44020-J0iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub52163-44901

main52163-44020-J1iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub52163-44901

52164APLATE, REAR BUMPER, LH

main52164-44010-A0iACM20,CLM20200105-200310

SUPER WHITE 2,040

sub52164-44900

main52164-44010-B0iACM20,CLM20200105-200310

SILVER ME.,1C0

sub52164-44900

main52164-44010-B1iACM20,CLM20200105-200310

DARK GRAY M.M.,1E2

sub52164-44900

main52164-44010-D0iACM20,CLM20200105-200310

RED MC.,3M8

sub52164-44900

main52164-44010-F0iACM20,CLM20200105-200310

CHAMPAGNE M.M.,587

sub52164-44900

main52164-44010-G0iACM20,CLM20200105-200310

DARK GREEN MC.,6R4

sub52164-44900

main52164-44010-H0iACM20,CLM20200105-200310

AQUA ME.,771

sub52164-44900

main52164-44010-J0iACM20,CLM20200105-200310

DK.BLUE M.M.,8P4

sub52164-44900

main52164-44020-A0iACM2#,CLM20200310-200912

SUPER WHITE 2,040

sub52164-44901

main52164-44020-B0iACM2#,CLM20200310-200912

SILVER ME.,1D4

sub52164-44901

main52164-44020-C0iACM2#,CLM20200310-200912

BLACK,202

sub52164-44901

main52164-44020-D0iACM2#,CLM20200310-200912

DK. RED M.M.,3Q3

sub52164-44901

main52164-44020-F0iACM2#,CLM20200310-200912

YELLOW M.M.,580

sub52164-44901

main52164-44020-G0iACM2#,CLM20200310-200912

DARK GREEN MC.,6R4

sub52164-44901

main52164-44020-J0iACM2#,CLM20200310-200912

LT.PURPLISH BLUE M.M.,8K2

sub52164-44901

main52164-44020-J1iACM2#,CLM20200310-200912

BLUE MC.,8M6

sub52164-44901

52461PAD, REAR BUMPER, CENTER

main52461-44010iACM20,CLM20200105-200310

52591ASEAL, REAR BUMPER

main52591-44010iACM20,CLM20200105-200310

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-28010iACM2#,CLM20200410

main52791-44030iACM20,CLM20200105-200409

sub52791-28010

8115

9015950267

main90159-50267

9015950311

main90159-50311

9015960266

main90159-60266

9017906274

main90179-06274

9018905096

main90189-05096

9018906065

main90189-06065

9018906138

main90189-06138

9018906222

main90189-06222

9021005006

main90210-05006

9046709166

main90467-09166

24 parts on this diagram · 1 diagram in section
