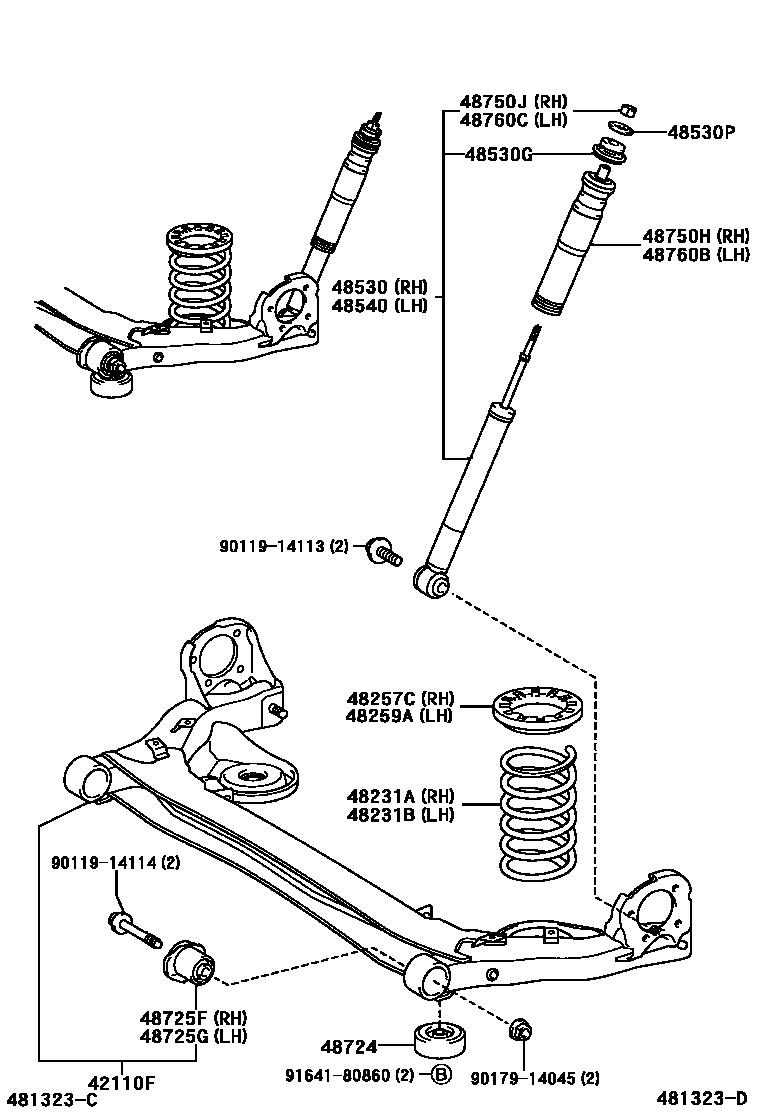

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-44070iACM2#,CLM20¥101,000200310-200507

sub42110-44071¥101,000

main42110-44071iACM2#¥101,000200507

sub42101-44051¥98,500

sub48725-28070¥4,390

main42110-44090iACM20,CLM20¥101,000200105-200310

sub42110-44091¥101,000

48231ASPRING, COIL, REAR RH

main48231-44110iACM20..ARL¥11,800200110-200310

W/O(NO.2 REAR SEAT)

main48231-44110iACM20..GEN;ACM20,CLM20..06S¥11,800200105-200110

main48231-44140iACM20,CLM20..07S..EUR200105-200310

main48231-44190iACM2#..ARL,GEN;ACM20,CLM20..06S¥12,000200310

main48231-44200iACM20,CLM20..EUR¥12,000200310-200507

W/O(NO.1 OR NO.2 REAR SEAT)

main48231-44210iACM20,CLM20..07S..EUR¥12,400200310-200507

48231BSPRING, COIL, REAR LH

main48231-44110iACM20..GEN;ACM20,CLM20..06S¥11,800200105-200110

main48231-44110iACM20..ARL¥11,800200110-200310

W/O(NO.2 REAR SEAT)

main48231-44140iACM20,CLM20..07S..EUR200105-200310

main48231-44190iACM2#..ARL,GEN;ACM20,CLM20..06S¥12,000200310

main48231-44200iACM20,CLM20..EUR¥12,000200310-200507

W/O(NO.1 OR NO.2 REAR SEAT)

main48231-44210iACM20,CLM20..07S..EUR¥12,400200310-200507

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iACM2#,CLM20¥1,560200105-200310

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iACM2#,CLM20¥1,560200105-200310

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-49235iACM20,CLM20¥8,100200105-200310

MARK 48531-44080

main48531-49295iACM2#,CLM20¥8,200200310-200705

MARK 48531-44120

main48531-49415iACM2#¥10,200200705

MARK 48531-44120

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019iACM20,CLM20¥490200105-200310

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159iACM20,CLM20¥260200105-200305

main90948-02192iACM20,CLM20¥280200305-200310

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-49235iACM20,CLM20¥8,100200105-200310

MARK 48531-44080

main48531-49295iACM2#,CLM20¥8,200200310-200705

MARK 48531-44120

main48531-49415iACM2#¥10,200200705

MARK 48531-44120

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010iACM20,CLM20¥6,300200105-200310

48725FBUSH, REAR AXLE CARRIER, RH

main48725-28050iACM20,CLM20¥4,600200105-200310

main48725-28070iACM2#,CLM20¥4,390200310

48725GBUSH, REAR AXLE CARRIER, LH

main48725-28050iACM20,CLM20¥4,600200105-200310

main48725-28070iACM2#,CLM20¥4,390200310

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48341-28100iACM20,CLM20¥3,110200105-200705

main48341-44040iACM2#¥3,110200705

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-12045iACM20,CLM20¥170200105-200709

sub94130-61200¥100

main94130-61200iACM2#¥100200709

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48341-28100iACM20,CLM20¥3,110200105-200705

main48341-44040iACM2#¥3,110200705

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-12045iACM20,CLM20¥170200105-200709

sub94130-61200¥100

main94130-61200iACM2#¥100200709

9011914113

main90119-14113¥590

9011914114

main90119-14114¥570

9017914045

main90179-14045¥120

9164180860

main91641-80860¥170

20 parts on this diagram · 2 diagrams in section
