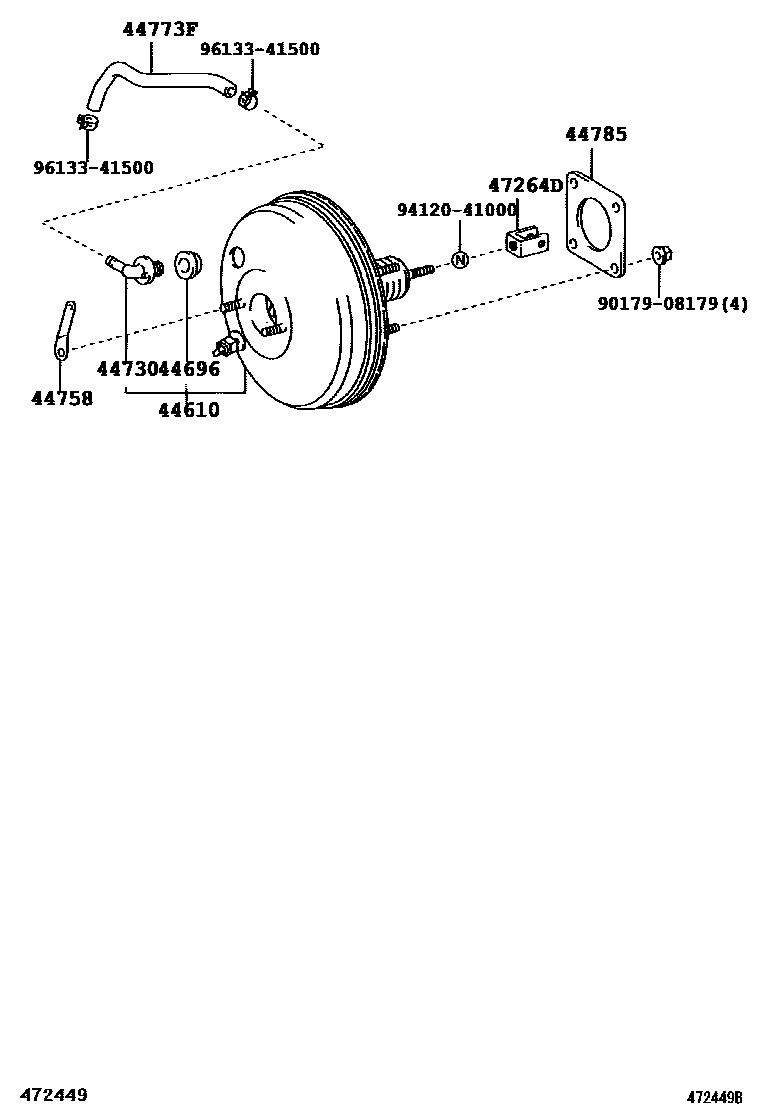

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-44140iACM20..GEN200206-200310

main44610-44150iACM20..LHD200105-200310

main44610-44151iACM20..LHD200310-200507

W(VSC)

main44610-44160iACM20..RHD200105-200310

main44610-44161iACM20..RHD..EUR200310-200507

W(VSC)

main44610-44170iCLM20..LHD200105-200310

main44610-44171iCLM20..LHD200310-200507

W(VSC)

main44610-44180iCLM20..RHD200105-200310

main44610-44181iCLM20..RHD200310-200507

W(VSC)

main44610-44210iACM20..GEN200310-200602

sub44610-44211

main44610-44211iACM20200603

main44610-44220iACM2#..RHD..(ARL,EUR)200310-200602

sub44610-44221

main44610-44221iACM21200603

main44610-44230iACM20..LHD200310-200507

sub44610-44231

main44610-44240iCLM20..RHD200310-200507

sub44610-44241

main44610-44250iCLM20..LHD200310-200507

sub44610-44251

44696GROMMET, CHECK VALVE

main90480-24439iACM20,CLM20200105-200310

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iACM20,CLM20..LHD200105-200507

main44730-22150iACM2#,CLM20..RHD200105-200310

44758BRACKET, VACUUM CHECK VALVE

main44758-44040iACM20,CLM20..LHD200105-200507

44773FHOSE, UNION TO CHECK VALVE

main44773-44050iACM2#..RHD200105-200310

main44773-44060iCLM20..LHD200105-200507

44785GASKET, BRAKE BOOSTER

main44785-32010iACM20,CLM20200105-200310

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-60020iACM20,CLM20200105-200310

9017908179

main90179-08179

9412041000

main94120-41000

9613341500

main96133-41500

10 parts on this diagram · 4 diagrams in section
