STEERING WHEEL

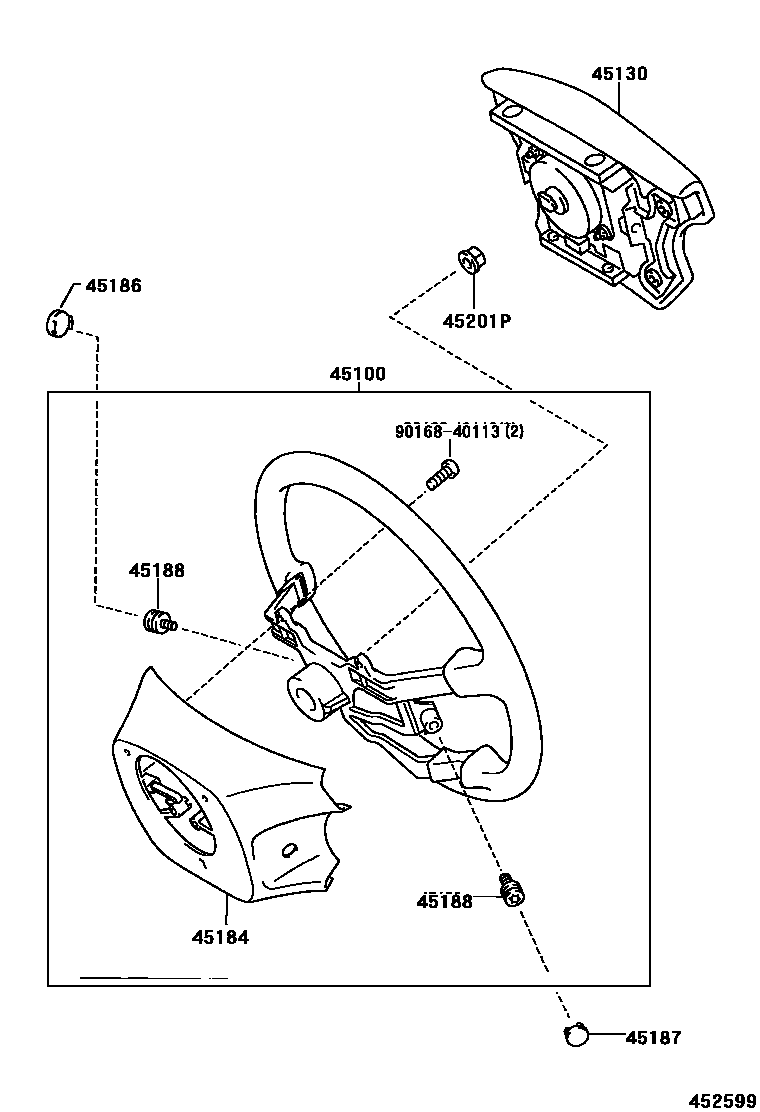

Parts diagram

45100WHEEL ASSY, STEERING

main45100-28340-B0i200310-200912

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-28340-E0i200310-200912

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-44070-C0i200105-200310

4-SPOKE,URETHANE,BLACK,TRIM1#

main45100-44070-E0i200105-200310

4-SPOKE,URETHANE,ORCHID BROWN,TRIM0#

main45100-44080-C0i200105-200310

4-SPOKE,LEATHER,BLACK,TRIM1#

main45100-44080-E0i200105-200310

4-SPOKE,LEATHER,ORCHID BROWN,TRIM0#

main45100-48360-B1i200310-200912

4-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-48360-E1i200310-200912

4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

45130BUTTON ASSY, HORN

main45130-44050-C0i200105-200310

BLACK,TRIM1#

main45130-44050-E0i200105-200310

ORCHID BROWN,TRIM0#

main45130-44100-B0i200310-200912

DK.GRAY,TRIM1#

main45130-44100-E0i200310-200912

SANDAL WOOD,TRIM0#

main45130-44110-B0i200310-200507

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-28110-C0i200105-200310

BLACK,TRIM1#

main45184-28110-E1i200105-200310

ORCHID BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-C0i200105-200310

BLACK,TRIM1#

main45186-33050-E2i200105-200310

ORCHID BROWN,TRIM0#

main45186-58010-B0i200310-200507

DK.GRAY,TRIM1#

main45186-58010-E1i200310-200912

SANDAL WOOD,TRIM0#

main45186-58020-B0i200310-200912

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-C0i200105-200310

BLACK,TRIM1#

main45186-33050-E2i200105-200310

ORCHID BROWN,TRIM0#

main45187-58010-B0i200310-200912

DK.GRAY,TRIM1#

main45187-58010-E1i200310-200912

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010i200105-200310

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200105-200310

9016840113

main90168-40113

8 parts on this diagram · 2 diagrams in section
