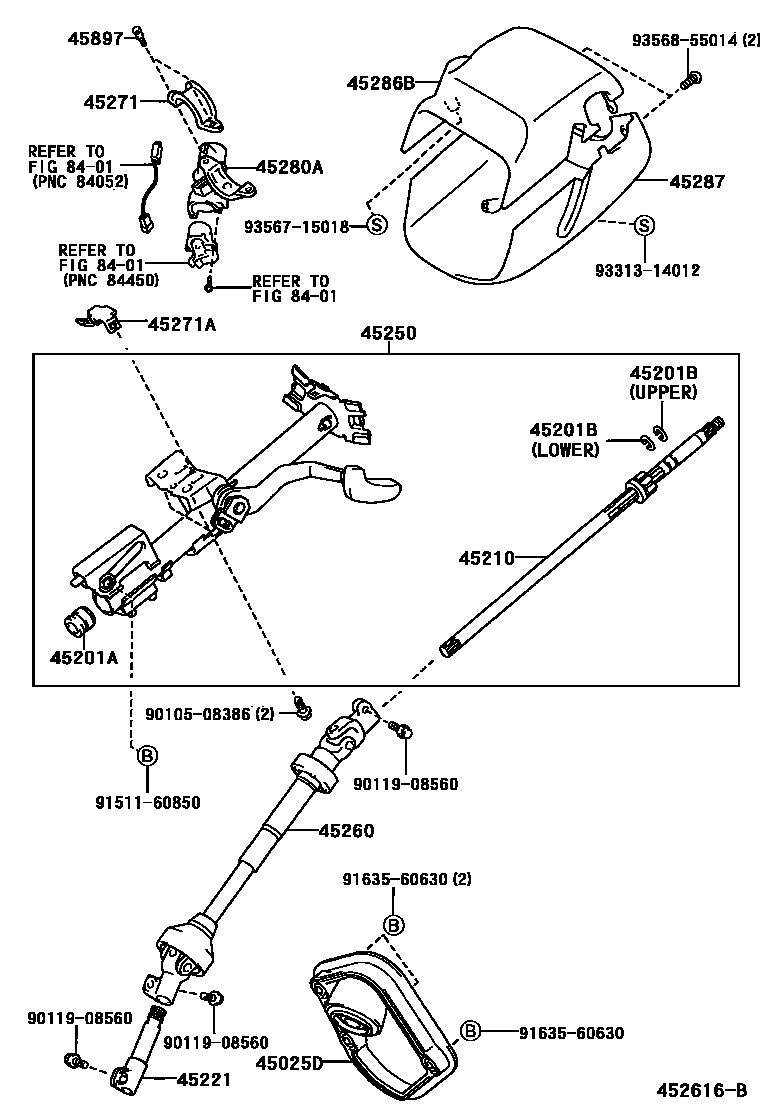

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45271ACLAMP, STEERING COLUMN, UPPER NO.2
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
8401
9010508386
main90105-08386
9011908560
main90119-08560
9151160850
main91511-60850
9163560630
main91635-60630
9331314012
main93313-14012
9356715018
main93567-15018
9356855014
main93568-55014
21 parts on this diagram · 2 diagrams in section
