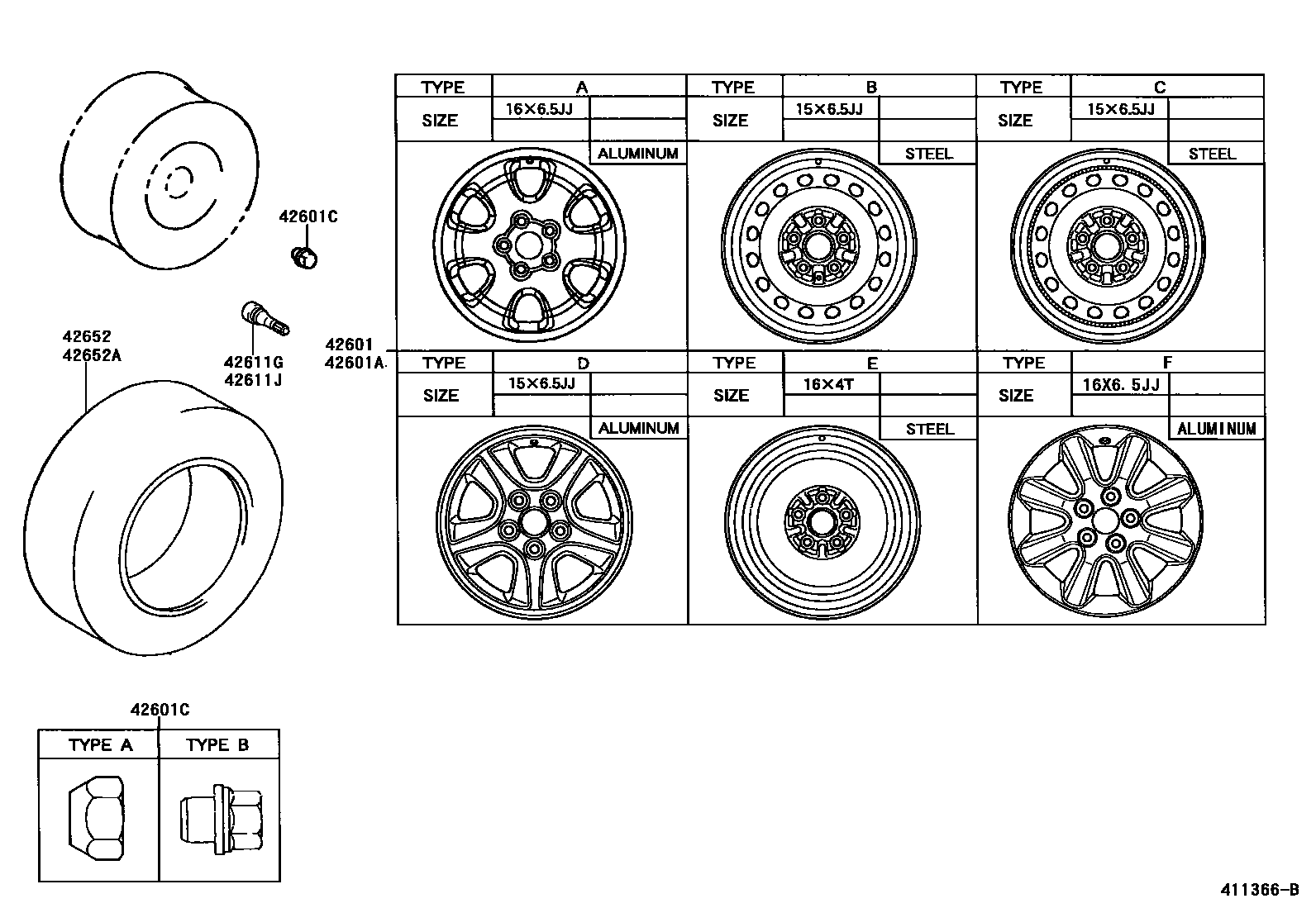

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-44070iACM20,CLM20200105-200202

15X6.5JJ,TYPE B:REFER ILLUST.

sub42611-44080

main42611-44080iACM2#,CLM20..RHD200105-200510

15X6.5JJ,TYPE C:REFER ILLUST.

main42611-44090iACM20,CLM20200105-200310

15X6.5JJ,TYPE D:REFER ILLUST.

main42611-44110iACM20,CLM20200105-200310

16X6.5JJ,TYPE A:REFER ILLUST.

main42611-44150iACM2#,CLM20200310-200406

16X6.5JJ,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-44100iACM2#,CLM20200310

16X4T

main42611-44100iACM20,CLM20200105-200310

16X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iACM2#,CLM20200105-200310

TYPE A:REFER TO ILLUSTRATION

main90942-01058iACM20,CLM20200105-200310

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iACM20,CLM20200105-200507

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACM2#..ARL,GEN200105-200507

42652TIRE

main42652-28530iACM20,CLM20..LHD200105-200406

205/65R15,MICHELIN

sub42652-28531

main42652-28531iACM20,CLM20..LHD200407-200507

205/65R15,MICHELIN

main42652-28550iACM20,CLM20..RHD200105-200406

205/65R15,MICHELIN

sub42652-28551

main42652-28551iACM2#,CLM20..RHD200407

205/65R15,MICHELIN

main42652-44090iACM20,CLM20..LHD200105-200406

205/65R15,*Y/H

sub42652-44091

main42652-44091iACM20,CLM20..LHD200407-200507

205/65R15,*Y/H

main42652-44100iACM2#,CLM20..RHD200105-200406

205/65R15,*Y/H

sub42652-44101

main42652-44101iACM2#,CLM20..RHD200407-200801

205/65R15,*Y/H

main42652-44110iACM20,CLM20..RHD200105-200406

205/60R16,*D/L

main42652-44111iACM2#,CLM20..RHD200407

205/60R16,*D/L

main42652-44120iACM20,CLM20..LHD200105-200406

205/60R16,*D/L

sub42652-44121

main42652-44121iACM20,CLM20..LHD200407-200507

205/60R16,*D/L

42652ATIRE (FOR SPARE)

main42652-30340iACM20,CLM20200105-200310

T135/80D16,*D/L

main42652-44200iACM2#200510

T135/80D16,*T/Y

7 parts on this diagram · 3 diagrams in section
