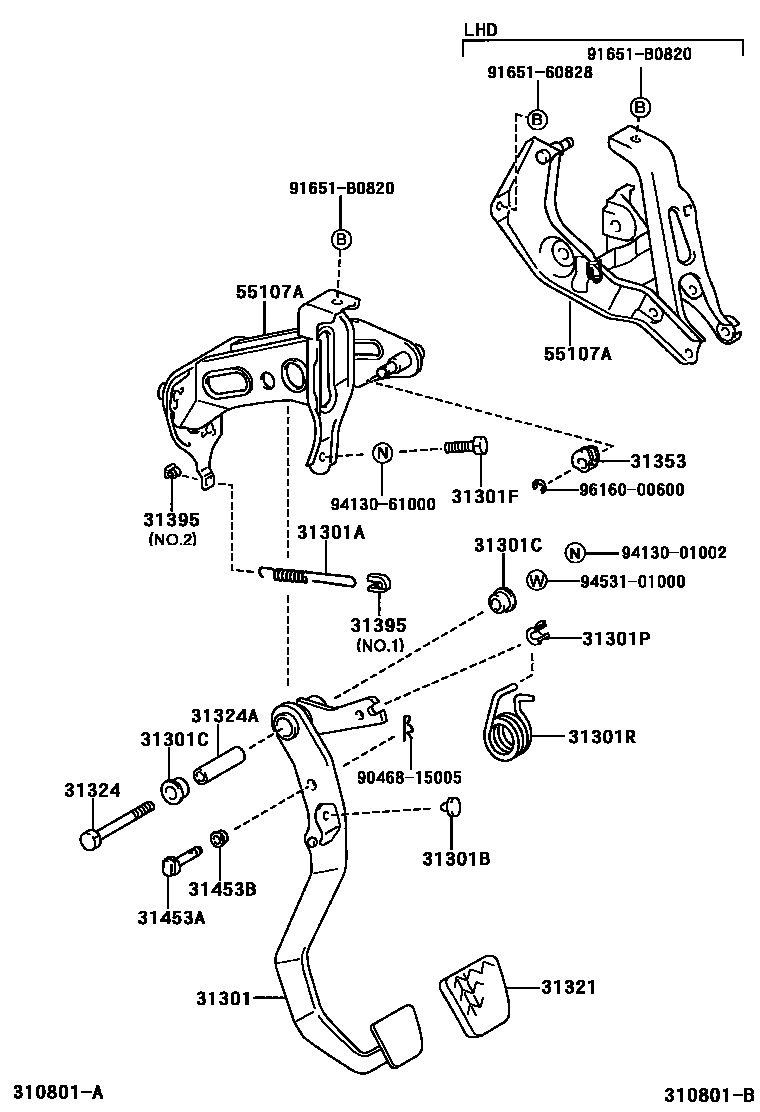

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31395HOOK, PEDAL SPRING
NO.1
NO.2
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=28.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
9046815005
main90468-15005
9165160828
main91651-60828
91651B0820
main91651-B0820
9413001002
main94130-01002
9413061000
main94130-61000
9453101000
main94531-01000
9616000600
main96160-00600
22 parts on this diagram · 5 diagrams in section
