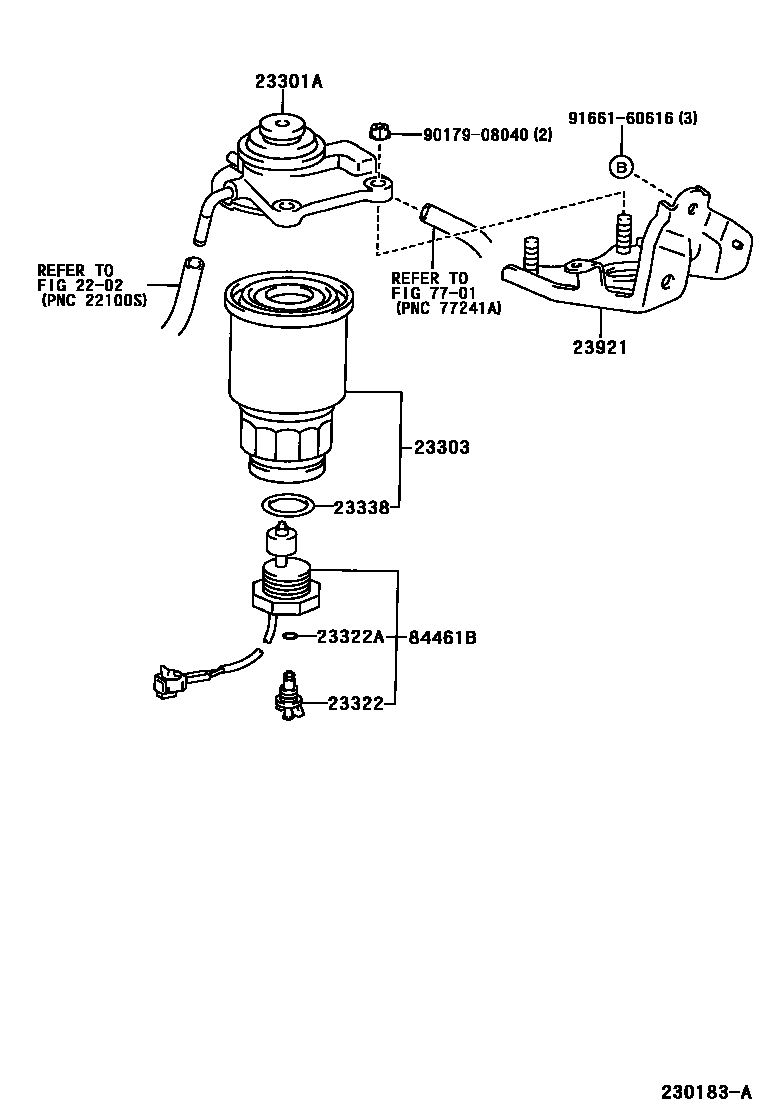

FUEL FILTER

0001 1 0002 1W(FUEL HEATER)

2202

23301ACAP ASSY, FUEL FILTER

main23380-27090i1CDFTV..CLM20200105-200206

sub23380-27091

main23380-27100i1CDFTV..CLM20..LHD200105-200206

W(FUEL HEATER)

sub23380-27101

main23380-27100i1CDFTV..CLM20200206-200506

sub23380-27101

main23380-27101i1CDFTV..CLM20200506-200507

sub23380-27102

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-33020i1CDFTV..CLM20200503-200507

sub23390-33060

main23390-64450i1CDFTV..CLM20200105-200502

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1CDFTV..CLM20200105-200507

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV..CLM20200105-200507

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV..CLM20200105-200507

23921SUPPORT, FUEL FILTER

main23921-27060i1CDFTV..CLM20200105-200507

7701

84461BSWITCH, LEVEL WARNING

main84461-26090iCLM20200105-200507

sub84461-26091

main84461-28040iCLM20..LHD200105-200310

W(FUEL HEATER)

sub84461-28041

9017908040

main90179-08040

9166160616

main91661-60616

11 parts on this diagram · 2 diagrams in section
