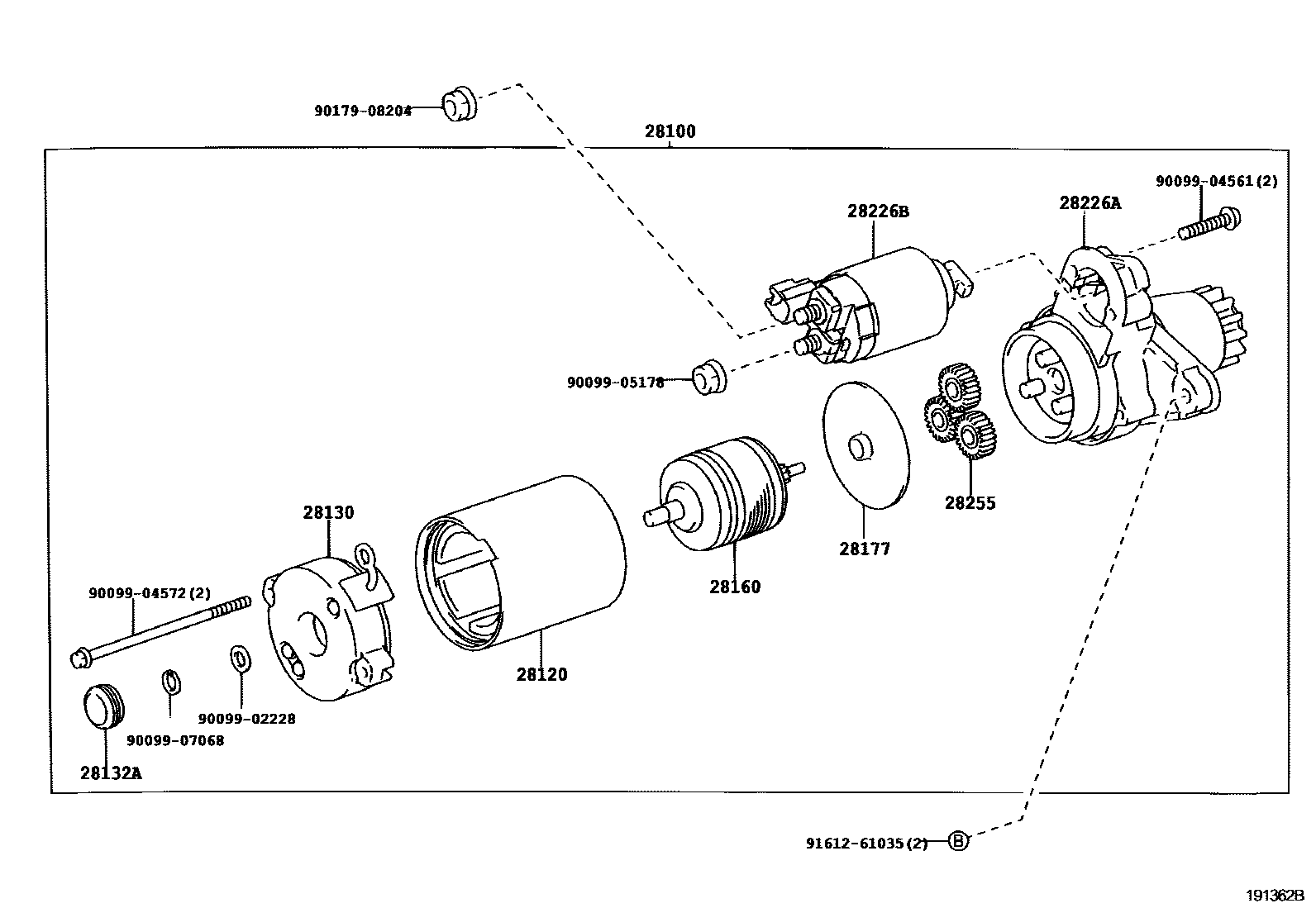

STARTER

0001 112V 1.3KW 0002 112V 1.2KW 0003 112V 1.4KW,2.2KW

28100STARTER ASSY

main28100-28050i1AZFE..ACM20..ATM200105-200107

12V 1.3KW

sub28100-28051

main28100-28051i1AZFE,2AZFE..ACM2#..ATM200107-200401

12V 1.3KW

sub28100-28052

main28100-28052i1AZFE,2AZFE..ACM2#..ATM200401-200909

12V 1.3KW

sub28100-28053

main28100-28053i1AZFE,2AZFE..ACM2#200910-200912

12V 1.3KW

main28100-64300i1CDFTV..CLM20200105-200507

12V 1.4KW

main28100-64430i1CDFTV..CLM20..LHD200105-200507

12V 2.2KW

main28100-74270i1AZFE..ACM20..MTM200105-200507

12V 1.2KW

sub28100-74260

28120YOKE ASSY, STARTER

main28120-16180i1AZFE..ACM20..MTM200105-200507

main28120-28050i1AZFE,2AZFE..ACM2#..ATM200105-200808

sub28120-28080

main28120-28080i1AZFE,2AZFE..ACM2#200808-200912

main28120-55050i1CDFTV..CLM20200105-200507

12V 1.4KW

main28120-64040i1CDFTV..CLM20..LHD200105-200507

12V 2.2KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i1AZFE..ACM20..ATM200105-200912

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1AZFE..ACM20..ATM200105-200912

28160ARMATURE ASSY, STARTER

main28160-28040i1AZFE..ACM20..ATM200105-200912

main28160-64041i1CDFTV..CLM20..LHD200105-200507

12V 2.2KW

main28160-74070i1CDFTV..CLM20200105-200507

12V 1.4KW

main28160-76060i1AZFE..ACM20..MTM200105-200507

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1AZFE..ACM20..ATM200105-200912

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28040i1AZFE..ACM20..ATM200105-200107

sub28226-28041

main28226-28041i1AZFE..ACM20..ATM200107-200912

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i1AZFE..ACM20..ATM200105-200205

sub28226-28051

main28226-28051i1AZFE..ACM20..ATM200205-200912

28255GEAR, PLANET

main28255-28040i1AZFE..ACM20..ATM200105-200912

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 3 diagrams in section
