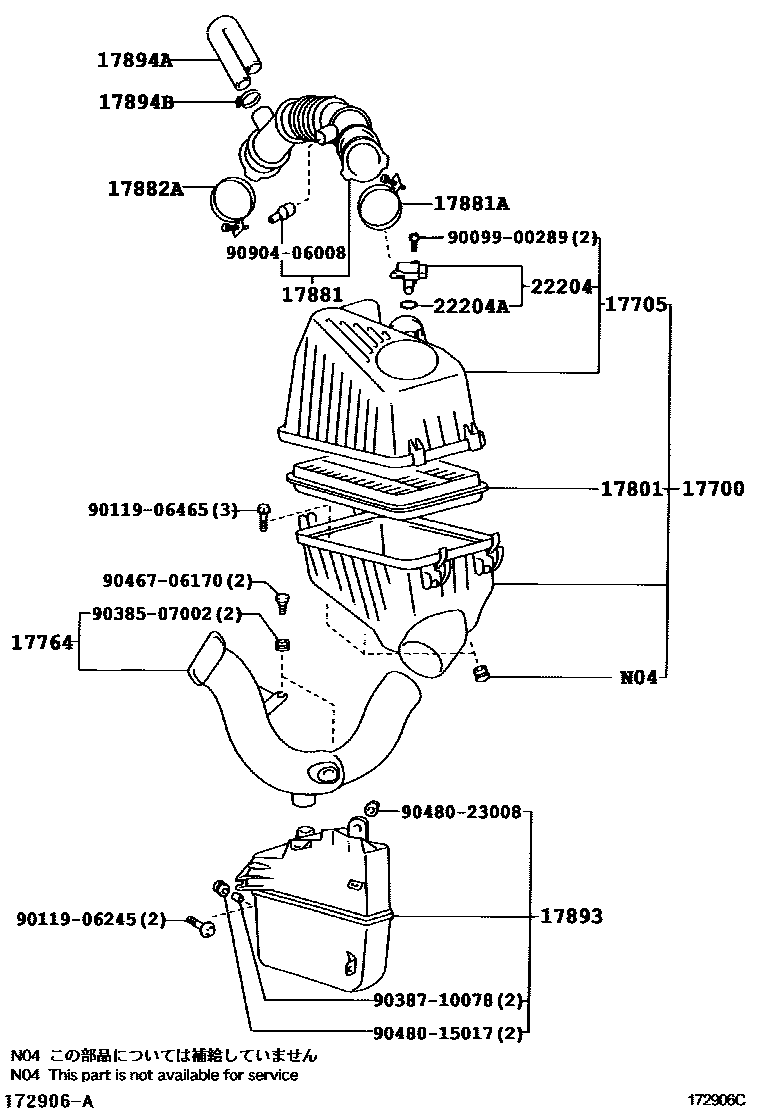

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-27180i1CDFTV..CLM20200105-200507

main17700-28180i1AZFE,2AZFE..ACM2#200105-200310

17705CAP SUB-ASSY, AIR CLEANER

main17705-27050i1CDFTV..CLM20200105-200507

main17705-28140i1AZFE..ACM20200105-200310

17764DUCT, AIR CLEANER

main52811-44090i1AZFE..ACM20200105-200310

main52811-44100i1CDFTV..CLM20200105-200507

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1AZFE,2AZFE..ACM2#200105-200310

main17801-27010i1CDFTV..CLM20200105-200507

sub17801-64070

17881HOSE, AIR CLEANER, NO.1

main17880-27050i1CDFTV..CLM20200105-200507

main17881-28100i1AZFE..ACM20200105-200310

sub17881-28101

main17881-28210i1AZFE,2AZFE..ACM2#200310-200809

sub17881-28211

main17881-28211i1AZFE,2AZFE..ACM2#200810

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-60006i1CDFTV..CLM20200105-200507

NO.1

main90466-62001i1CDFTV..CLM20200105-200310

NO.2

sub90466-62002

main90466-62002i1CDFTV..CLM20200310-200507

NO.2

main96111-10830i1AZFE..ACM20200105-200310

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE..ACM20200105-200310

17893RESONATOR, INTAKE AIR

main17893-28030i1AZFE..ACM20200105-200310

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28030i1AZFE..ACM20200105-200310

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i1AZFE..ACM20200105-200310

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i1AZFE..ACM20200105-200310

main22204-27010i1CDFTV..CLM20200105-200507

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1AZFE..ACM20200105-200310

9009900289

main90099-00289

9011906245

main90119-06245

9011906465

main90119-06465

9038507002

main90385-07002

9038710078

main90387-10078

9046706170

main90467-06170

9048015017

main90480-15017

9048023008

main90480-23008

9090406008

main90904-06008

21 parts on this diagram · 2 diagrams in section
