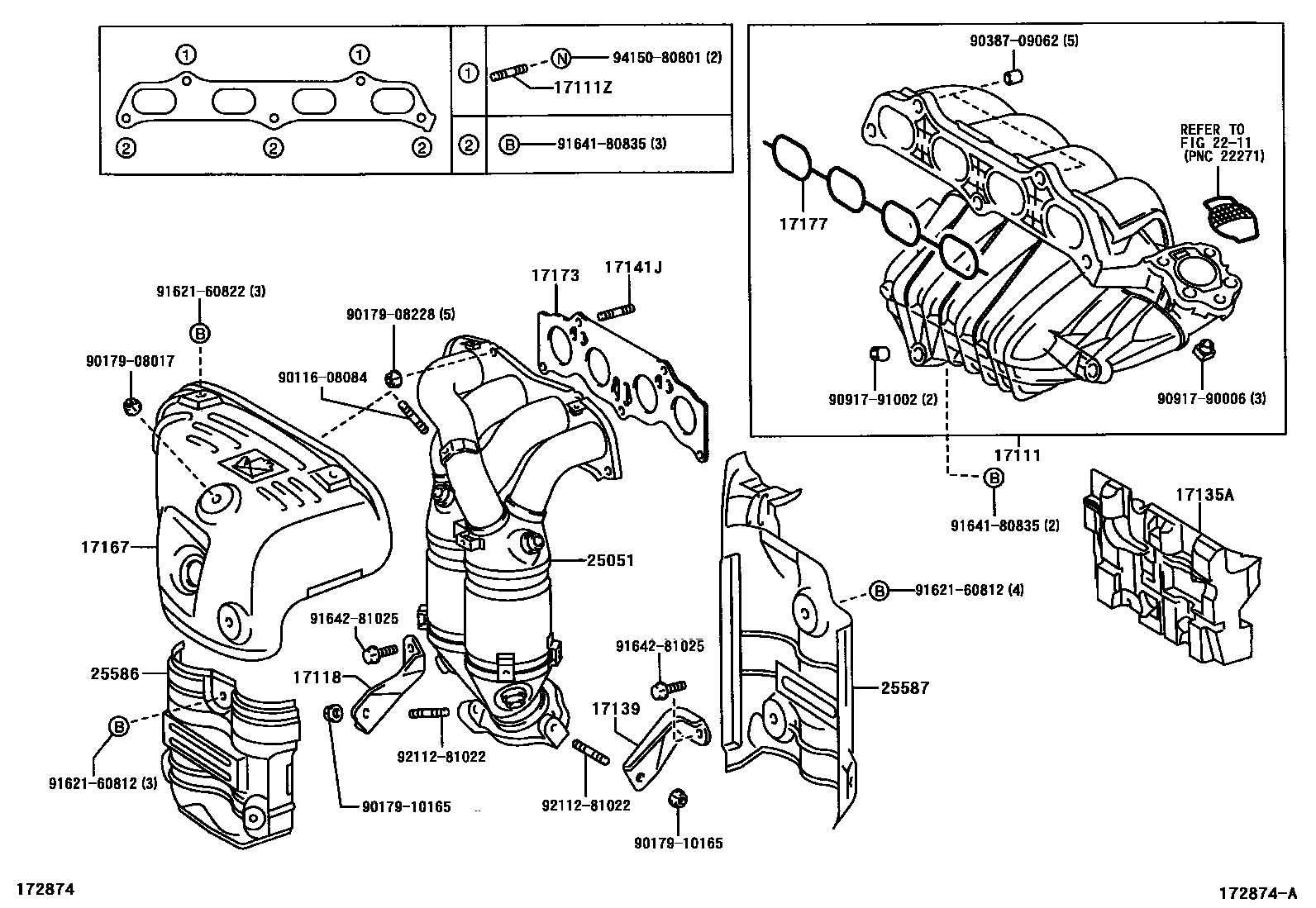

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17111-27011i1CDFTV..CLM20200105-200204

sub17111-27012

sub22815-27011

main17111-27012i1CDFTV..CLM20200204-200507

main17120-28010i1AZFE..ACM20200105-200310

sub17120-28050

main17120-28100i1AZFE,2AZFE..ACM2#200310

sub17120-28101

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i1AZFE..ACM20200105-200310

17118STAY, MANIFOLD

main17118-27040i1CDFTV..CLM20200105-200507

main17118-28020i1AZFE..ACM20200105-200310

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28010i1AZFE..ACM20200105-200506

sub17135-28011

main17135-28011i1AZFE,2AZFE..ACM2#200506

17139STAY, MANIFOLD, NO.2

main17139-27010i1CDFTV..CLM20200105-200507

main17139-28010i1AZFE,2AZFE..ACM2#200105-200310

17141MANIFOLD, EXHAUST

main17141-27030i1CDFTV..CLM20200105-200507

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i1AZFE..ACM20200105-200310

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28010i1AZFE..ACM20200105-200310

main17167-28031i1AZFE,2AZFE..ACM2#200310

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-27010i1CDFTV..CLM20200105-200507

main17173-28010i1AZFE,2AZFE..ACM2#200105-200310

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-27010i1CDFTV..CLM20200105-200507

main17177-28010i1AZFE..ACM20200105-200310

sub17177-28031

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28040i1AZFE..ACM20200105-200310

sub25051-28041

main25051-28210i2AZFE..ACM21200310

main25051-28230i1AZFE..ACM20200310

*114=TOYOTA/28230/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28010i1AZFE..ACM20200105-200310

main25586-28031i1AZFE,2AZFE..ACM2#200310

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28010i1AZFE..ACM20200105-200310

main25587-28041i1AZFE,2AZFE..ACM2#200310

9011608084

main90116-08084

9017908017

main90179-08017

9017908228

main90179-08228

9017910165

main90179-10165

9038709062

main90387-09062

9091790006

main90917-90006

9091791002

main90917-91002

9162160812

main91621-60812

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

9211281022

main92112-81022

9415080801

main94150-80801

27 parts on this diagram · 3 diagrams in section
