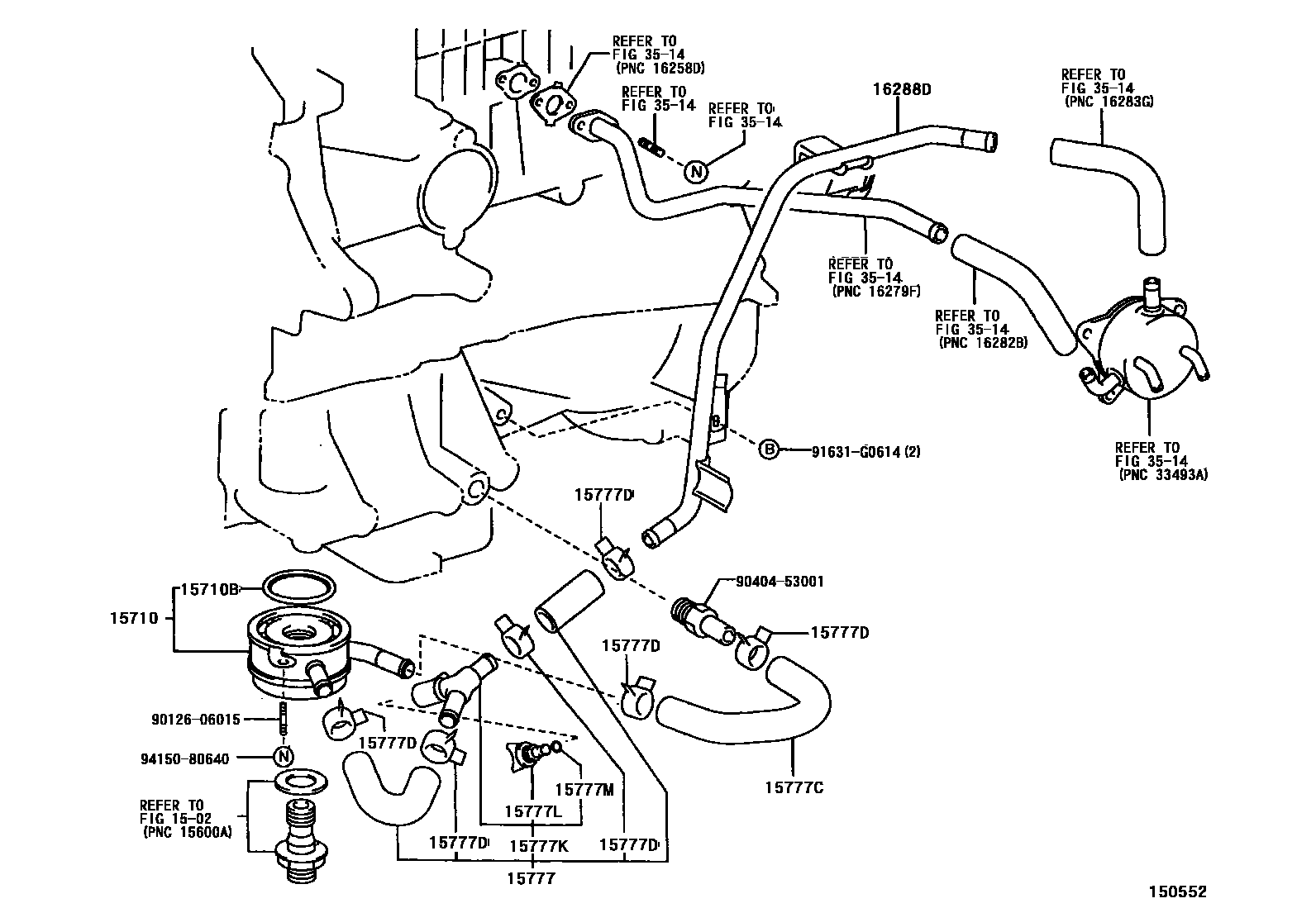

ENGINE OIL COOLER

0001 1TOWING PACKAGE 0002 1

1502

15710COOLER ASSY, OIL

main15710-27030i1CDFTV..CLM20200105-200507

main15710-28020i1AZFE..ACM20..ATM..ARL200110-200310

15710BRING, O(FOR OIL COOLER)

main90301-52006i1AZFE..ACM20..ATM..ARL200110-200310

15777HOSE, OIL COOLER

main15777-27020i1CDFTV..CLM20200105-200507

main16267-28020i1AZFE..ACM20..ATM..ARL200110-200310

sub16267-28080

15777CHOSE, OIL COOLER

main15778-27030i1CDFTV..CLM20200105-200507

main16281-28010i1AZFE..ACM20..ATM..ARL200110-200310

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-20005i1AZFE..ACM20..ATM..ARL200110-200310

sub96134-41900

main96134-41900i2AZFE..ACM21200310

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i1AZFE..ACM20..ATM..ARL200110-200310

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i1AZFE..ACM20..ATM..ARL200110-200310

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i1AZFE..ACM20..ATM..ARL200110-200310

16288DPIPE, WATER BY-PASS, NO.4

main16288-28010i1AZFE..ACM20..ATM..ARL200110-200310

sub16288-28020

main16288-28020i2AZFE..ACM21200310

3514

9012606015

main90126-06015

9040453001

main90404-53001

91631G0614

main91631-G0614

9415080640

main94150-80640

15 parts on this diagram · 2 diagrams in section
