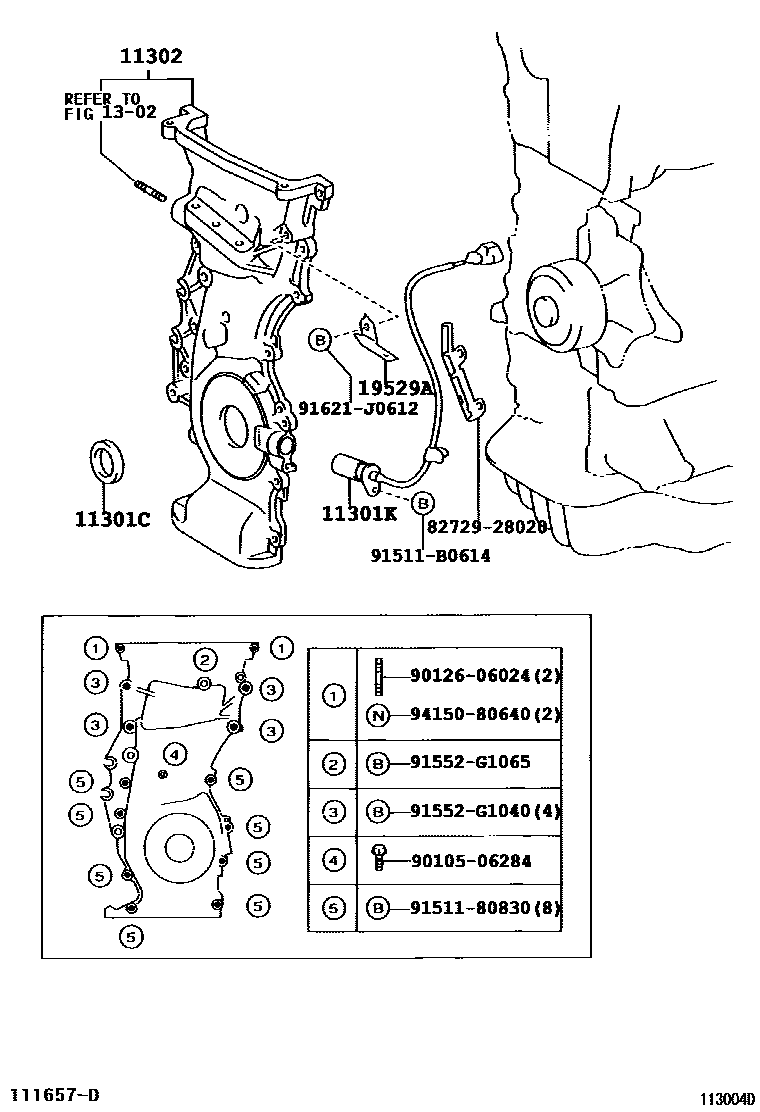

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i1AZFE..ACM20200105-200212

sub90311-38089

main90311-38084i1AZFE..ACM20200212-200301

NOK

main90311-38084i1AZFE..ACM20200301-200303

main90311-38088i1AZFE..ACM20200212-200301

KOYO

sub90311-38084

main90311-38089i1AZFE,2AZFE..ACM2#200304-200912

11301KSENSOR, CRANK POSITION

main90919-05047i1AZFE..ACM20200105-200310

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28080i1AZFE..ACM20200105-200208

sub11310-28081

main11310-28081i1AZFE..ACM20200208-200508

main11310-28082i1AZFE,2AZFE..ACM2#200508

1302

19529ACLAMP

main19529-28010i1AZFE..ACM20200105-200310

8272928020

main82729-28020

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 2 diagrams in section
