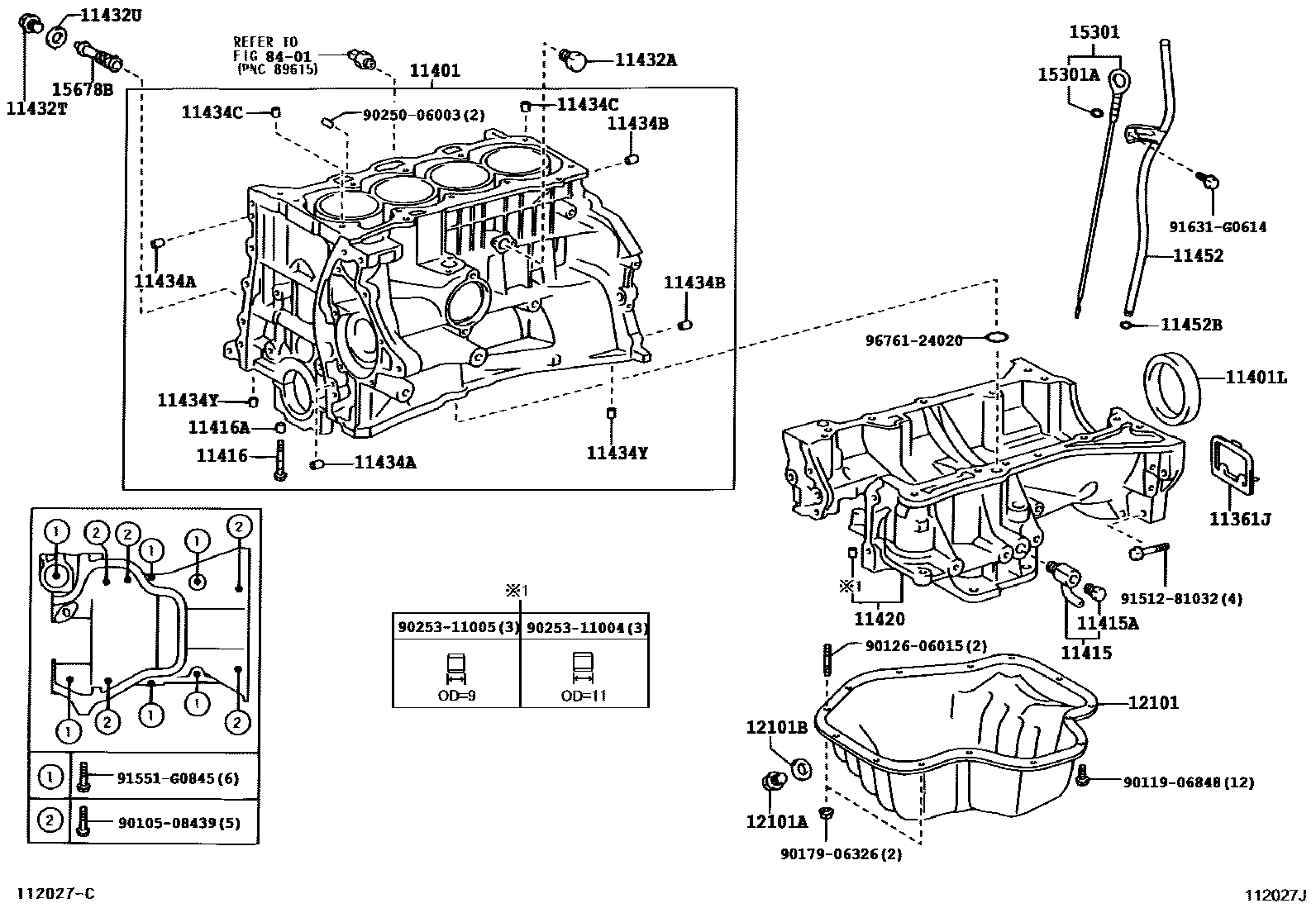

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1AZFE,2AZFE..ACM2#200105-200310

11401BLOCK SUB-ASSY, CYLINDER

main11401-29705i1CDFTV..CLM20200105-200310

sub11401-29745

main11401-29745i1CDFTV..CLM20200310-200507

main11410-29105i2AZFE..ACM21200310-200311

sub11410-29325

main11410-29115i1AZFE..ACM20200105-200311

sub11410-29195

main11410-29185i2AZFE..ACM21200311-200510

sub11410-29325

main11410-29195i1AZFE..ACM20200311-200510

sub11410-29315

main11410-29315i1AZFE..ACM20200510-200608

sub11410-29316

main11410-29316i1AZFE..ACM20200608

main11410-29325i2AZFE..ACM21200510-200608

sub11410-29326

main11410-29326i2AZFE..ACM21200608

11401LSEAL, ENGINE REAR OIL

main90311-89003i1AZFE..ACM20200105-200310

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1CDFTV..CLM20200105-200507

sub90910-09129

main90910-09120i1AZFE,2AZFE..ACM2#200105-200310

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1CDFTV..CLM20200105-200507

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZFE..ACM20200105-200310

sub90910-02206

main90910-02135i1CDFTV..CLM20200105-200507

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFE..ACM20200105-200310

11420CRANKCASE ASSY, STIFFENING

main11420-0H011i2AZFE..ACM21200511

(L)

sub11420-28031

main11420-28011i2AZFE..ACM21200310-200505

sub11420-0H020

main11420-28031i2AZFE..ACM21200508-200511

sub11420-28032

main11420-28031i2AZFE..ACM21200511

(J)

sub11420-28032

main11420-28040i2AZFE..ACM21200505-200508

sub11420-28031

main11421-28020i1AZFE..ACM20..EUR200112-200610

main11421-28031i1AZFE..ACM20200610-200901

main11421-28900i1AZFE..ACM20200105-200112

sub11421-28020

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE..ACM20..MTM200105-200507

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFE..ACM20200105-200310

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFE..ACM20200105-200304

main90430-14011i1AZFE..ACM20200304-200310

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074i1AZFE..ACM20200105-200302

L=15,OD=8

main90250-08120i1AZFE..ACM20200302-200310

L=18,OD=8

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i1AZFE..ACM20200105-200310

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003i1AZFE..ACM20200105-200310

L=12,OD=14

main90253-14004i1CDFTV..CLM20200105-200507

L=20,OD=14

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074i1AZFE..ACM20200105-200310

11452GUIDE, OIL LEVEL GAGE

main11452-27030i1CDFTV..CLM20200105-200507

main11452-28010i1AZFE..ACM20200105-200301

main11452-28011i1AZFE..ACM20200301-200510

main11452-28040i1AZFE,2AZFE..ACM2#200510

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFE..ACM20200105-200310

12101PAN SUB-ASSY, OIL

main12101-27010i1CDFTV..CLM20200105-200108

sub12101-27011

main12101-27011i1CDFTV..CLM20200108-200507

main12101-28030i2AZFE..ACM21200310

main12101-28050i1AZFE..ACM20200105-200310

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1CDFTV..CLM20200210-200507

main90341-12026i1AZFE..ACM20200105-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1CDFTV..CLM20200105-200507

15301GAGE SUB-ASSY, OIL LEVEL

main15301-27040i1CDFTV..CLM20200105-200507

main15301-28020i1AZFE..ACM20200105-200301

main15301-28050i1AZFE..ACM20200301-200304

sub15301-28051

main15301-28051i1AZFE,2AZFE..ACM2#200304-200510

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFE..ACM20200105-200510

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFE..ACM20200105-200310

8401

9010508439

main90105-08439

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9025311004

main90253-11004

9025311005

main90253-11005

9151281032

main91512-81032

91551G0845

main91551-G0845

91631G0614

main91631-G0614

9676124020

main96761-24020

35 parts on this diagram · 3 diagrams in section
