ENGINE OVERHAUL GASKET KIT

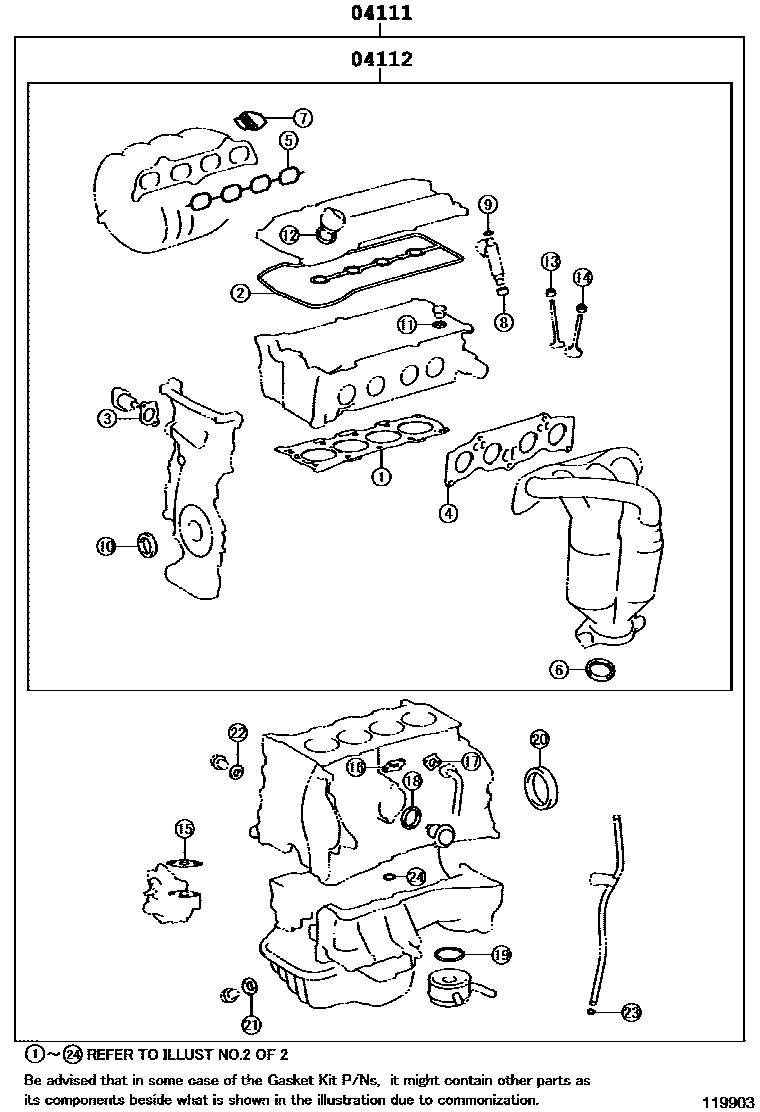

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-27080i200105-200301
main04111-27081i200310-200311
main04111-27130i200311-200507
main04111-28056i200310-200311
main04111-28120i200105-200211
main04111-28121i200211-200212
main04111-28122i200212-200304
main04111-28123i200304-200310
main04111-28360i200311-200507
main04111-28370i200311-200508
main04111-28371i200508-200511
main04111-28372i200511-200607
main04111-28373i200607-200710
main04111-28380i200311-200508
main04111-28381i200508-200607
main04111-28382i200607-200710
main04111-28383i200710-200904
main04111-28384i200904
main04111-28930i200310-200904
TOWING PACKAGE
main04111-28931i200904
sub04111-28196
04112GASKET KIT, ENGINE VALVE GRIND
main04112-27070i200105-200301
main04112-27071i200310-200311
main04112-27120i200311-200507
main04112-28056i200310-200311
sub04112-28057
main04112-28120i200105-200211
main04112-28121i200211-200212
main04112-28122i200212-200304
main04112-28123i200304-200310
main04112-28193i200310-200904
TOWING PACKAGE
main04112-28194i200904
sub04112-28195
main04112-28350i200311-200508
main04112-28351i200508-200607
main04112-28352i200607-200710
main04112-28353i200710-200904
main04112-28354i200904
main04112-28360i200311-200508
main04112-28361i200508-200511
main04112-28362i200511-200607
main04112-28363i200607-200710

2 parts on this diagram · 8 diagrams in section
