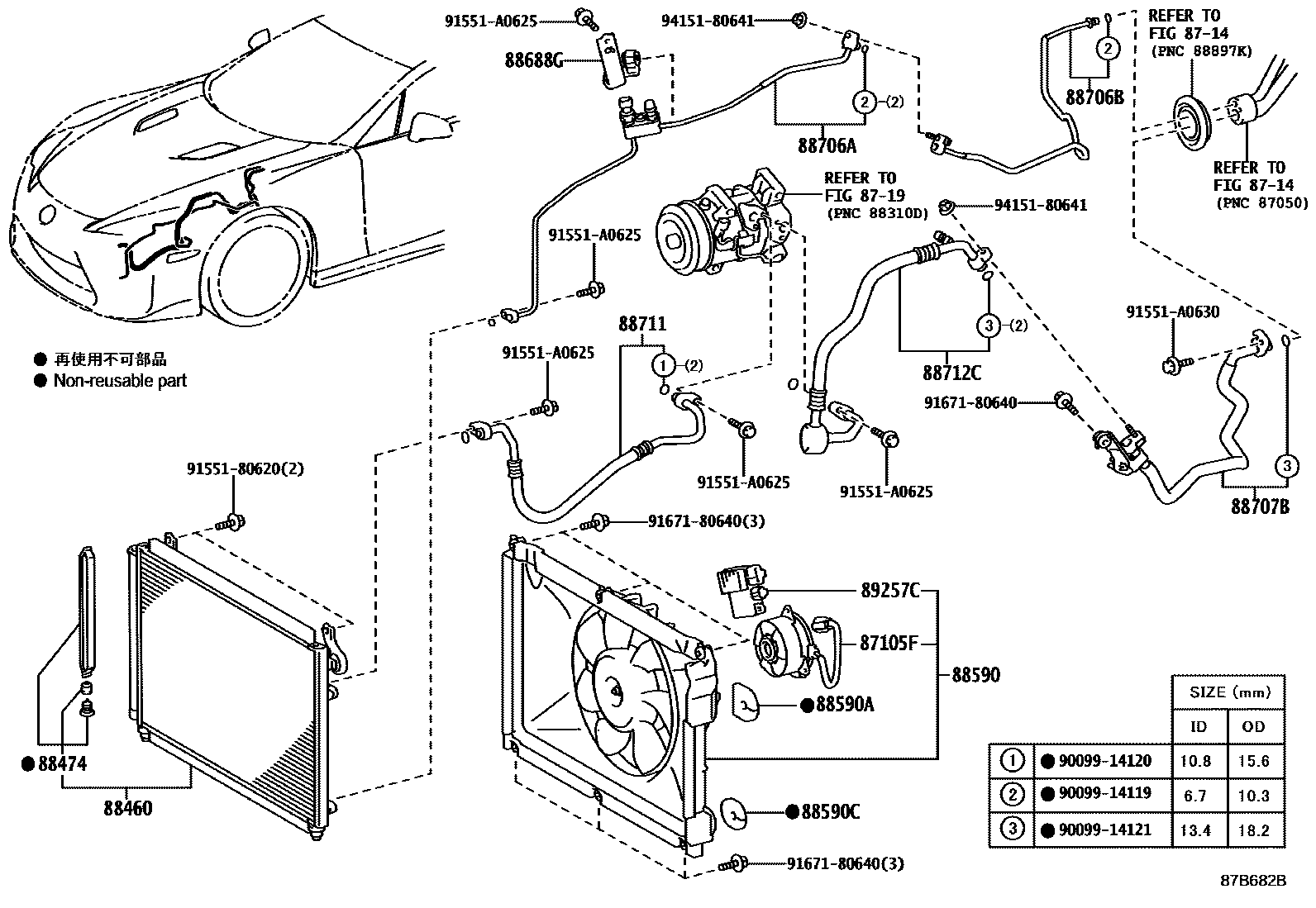

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT

87105FFAN SUB-ASSY, BLOWER

main87105-77010iLFA10201012

8714

8719

88460CONDENSER ASSY, COOLER

main88460-77030iLFA10¥52,500201012

88474DRYER, COOLER

main88474-17010iLFA10201012

88590BLOWER ASSY, W/SHROUD

main88590-77020iLFA10201012

88590APARTS, COOLING UNIT

main88899-77250iLFA10201012

88590CPARTS, COOLING UNIT

main88899-77260iLFA10201012

88688GBRACKET, COOLER REFRIGERANT PIPE

main88688-77010iLFA10201012

BASIC PACKAGE

main88688-77010iLFA10201012

AIR CONDITIONER-WITHOUT

88706ATUBE SUB-ASSY, LIQUID, A

main88706-77610iLFA10¥21,400201012

BASIC PACKAGE

main88706-77610iLFA10¥21,400201012

AIR CONDITIONER-WITHOUT

88706BTUBE SUB-ASSY, LIQUID, B

main88706-77620iLFA10¥7,100201012

BASIC PACKAGE

main88706-77620iLFA10¥7,100201012

AIR CONDITIONER-WITHOUT

88707BTUBE SUB-ASSY, SUCTION, B

main88707-77230iLFA10¥13,600201012

BASIC PACKAGE

main88707-77230iLFA10¥13,600201012

AIR CONDITIONER-WITHOUT

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-77020iLFA10..GCC201012

main88711-77A00iLFA10..EUR¥12,800201012

BASIC PACKAGE

main88711-77A00iLFA10..EUR¥12,800201012

AIR CONDITIONER-WITHOUT

88712CHOSE, SUCTION

main88712-77080iLFA10..EUR¥16,700201012

BASIC PACKAGE

main88712-77080iLFA10..EUR¥16,700201012

AIR CONDITIONER-WITHOUT

main88712-77110iLFA10..GCC201012

89257CCOMPUTER, COOLING FAN

main89257-26020iLFA10¥13,600201012

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9155180620

main91551-80620¥60

91551A0625

main91551-A0625¥60

91551A0630

main91551-A0630¥60

9167180640

main91671-80640¥130

9415180641

main94151-80641¥60

23 parts on this diagram · 2 diagrams in section
