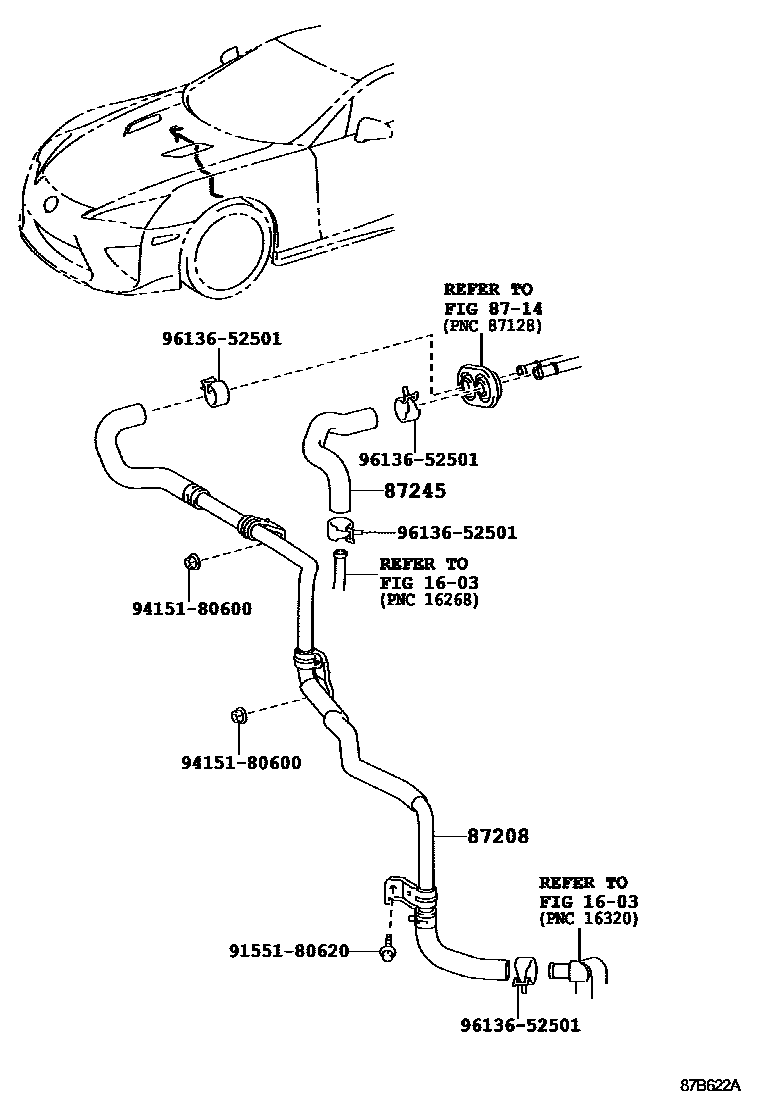

HEATING & AIR CONDITIONING - WATER PIPING

1603

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-77010iLFA10..LHD201012

main87208-77020iLFA10..RHD201012

87245HOSE, HEATER WATER, INLET

main87245-77010iLFA10201012

9155180620

main91551-80620

9415180600

main94151-80600

9613652501

main96136-52501

7 parts on this diagram · 1 diagram in section
