MIRROR

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2i201012

87810MIRROR ASSY, INNER REAR VIEW

87817SPACER, INNER REAR VIEW MIRROR

87825SPRING, INNER REAR VIEW MIRROR SETTING

87853BASE, INNER REAR VIEW MIRROR

main87853-24020-C0i201012-201212

BLACK

87908BMIRROR SUB-ASSY, RH

87909BMIRROR SUB-ASSY, LH

87911AVISOR, OUTER MIRROR, RH

WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5

DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6

LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4

BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4

87931OUTER MIRROR, RH

87941AVISOR, OUTER MIRROR, LH

WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5

DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6

LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4

BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4

87961MIRROR OUTER, LH

9014860018

9017906159

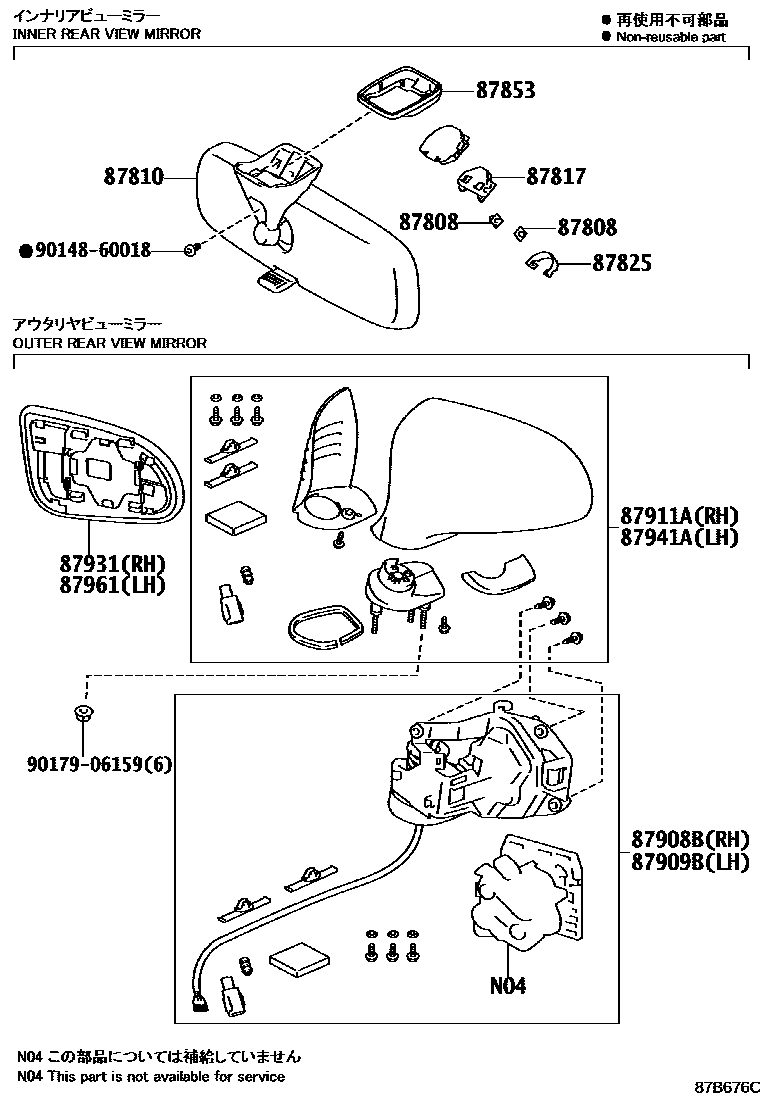

13 parts on this diagram · 1 diagram in section
