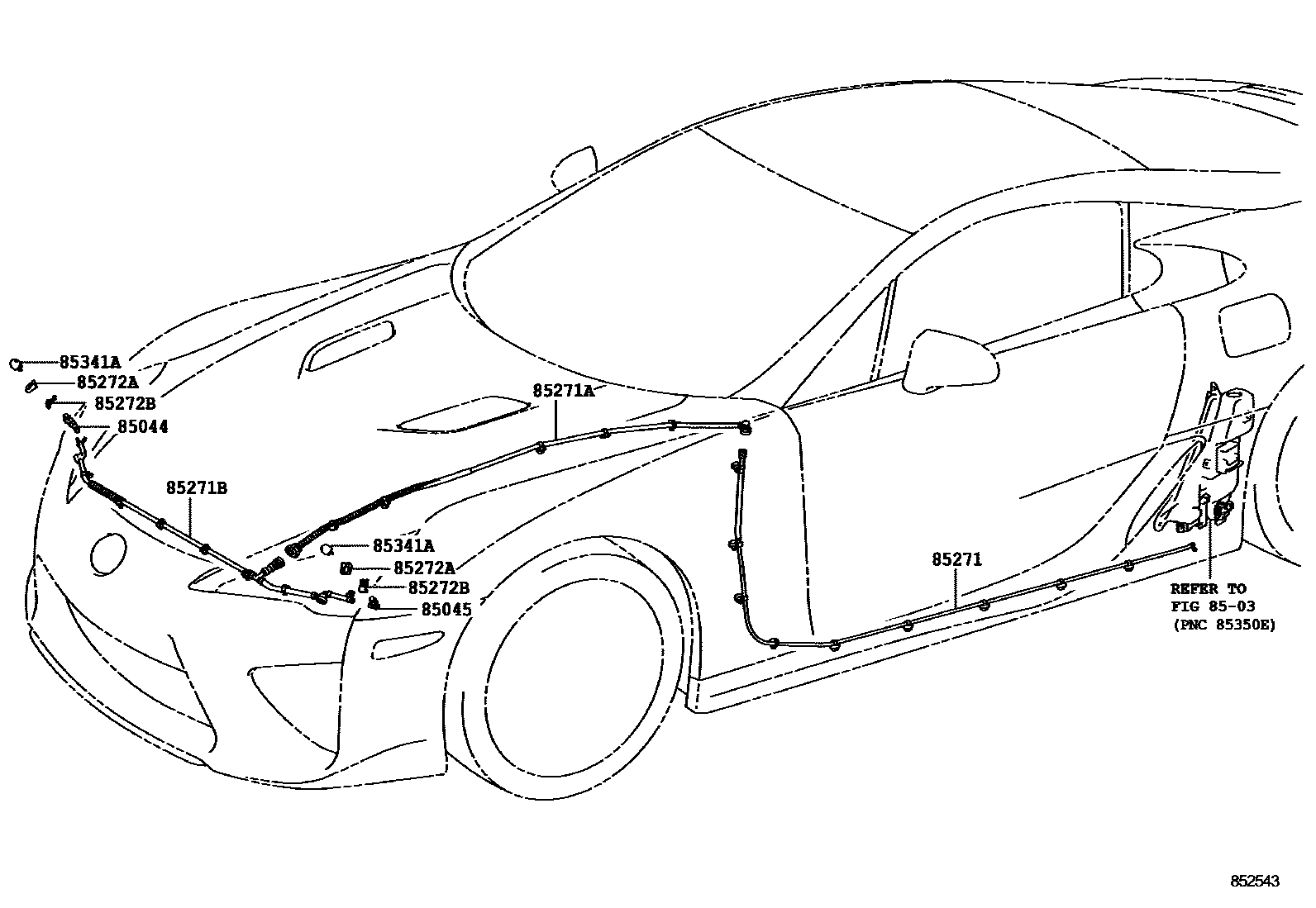

HEADLAMP CLEANER

8503

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-77010iLFA10201012

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-77010iLFA10201012

85271HOSE, HEADLAMP CLEANER, NO.1

main85289-77010iLFA10201012

85271AHOSE, HEADLAMP CLEANER, NO.2

main85290-77010iLFA10201012

85271BHOSE, HEADLAMP CLEANER, NO.3

main85270-77010iLFA10201012

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-77010iLFA10201012

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85272-77020iLFA10201012

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85353-77010iLFA10201012-201212

9 parts on this diagram · 1 diagram in section
