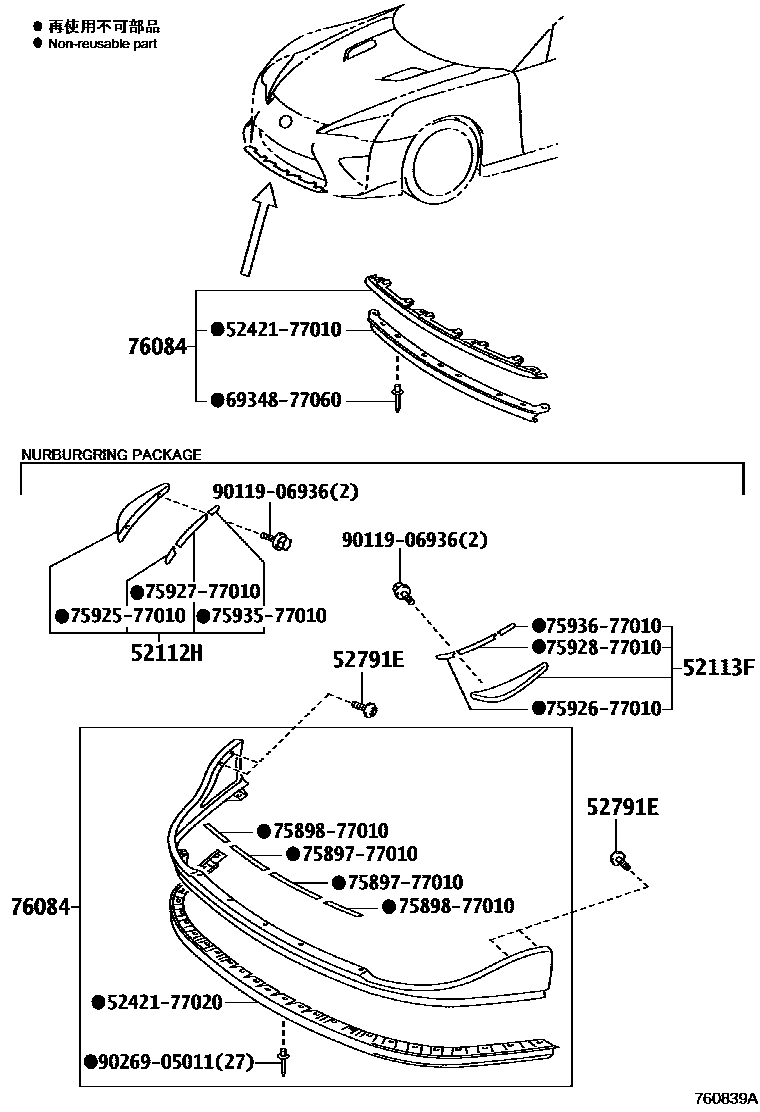

MUDGUARD & SPOILER
52112HEXTENSION, FRONT BUMPER, RH
52113FEXTENSION, FRONT BUMPER, LH
52791EBOLT, BUMPER MOULDING SET, NO.1
76084SPOILER SET, FRONT
5242177010FILLER, FRONT BUMPER MOULDING, RH
main52421-77010
5242177020FILLER, FRONT BUMPER MOULDING, RH
main52421-77020
6934877060JOINT, ADJUSTING
main69348-77060
7589777010TAPE, MOULDING, NO.3
main75897-77010
7589877010CLIP, BACK DOOR OUTSIDE MOULDING
main75898-77010
7592577010TAPE, BLACK OUT, NO.3 RH
main75925-77010
7592677010TAPE, BLACK OUT, NO.3 LH
main75926-77010
7592777010TAPE, BLACK OUT, NO.4 RH
main75927-77010
7592877010TAPE, BLACK OUT, NO.4 LH
main75928-77010
7593577010PAD, ROOF OUTSIDE COVER, NO.3
main75935-77010
7593677010PAD, ROOF OUTSIDE COVER, NO.4
main75936-77010
9011906936
main90119-06936
9026905011
main90269-05011
17 parts on this diagram · 3 diagrams in section
