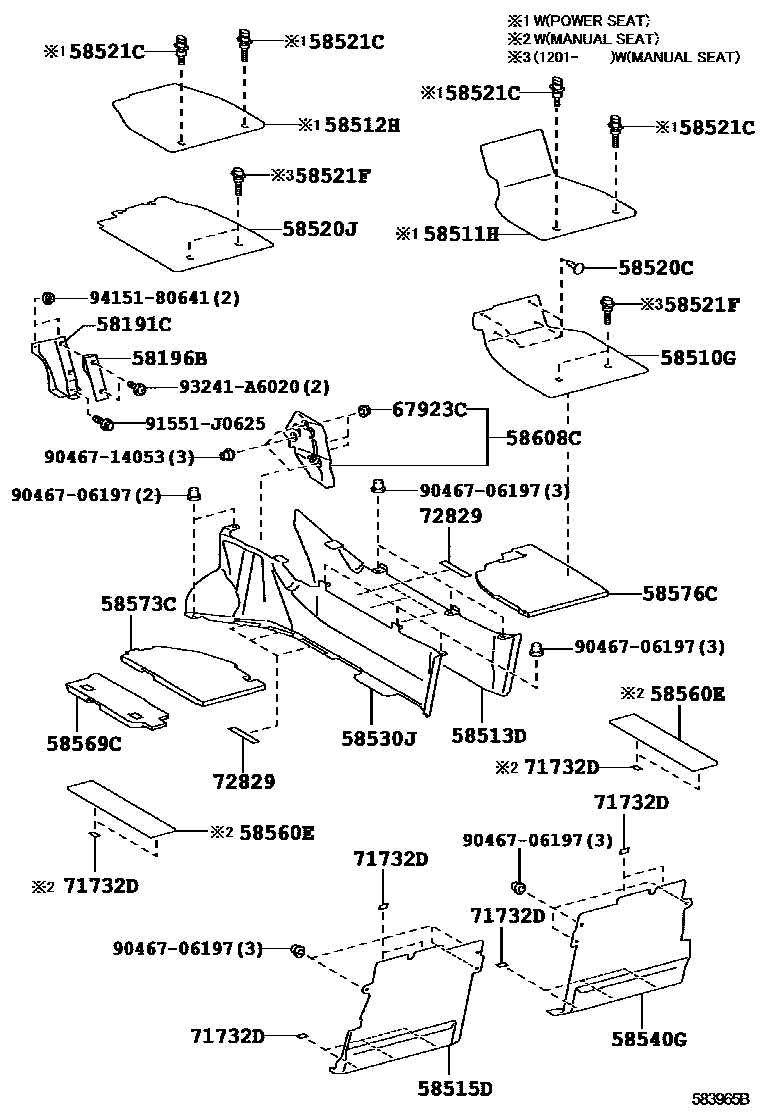

MAT & CARPET

0001 1 0002 1

58191CPANEL, FOOTREST

main58191-77010iLFA10..LHD201012

main58191-77020iLFA10..RHD¥31,800201012

58196BTRIM, FOOTREST

main58196-77010iLFA10..LHD201012

main58196-77020iLFA10..RHD¥41,900201012

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58510-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58510-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58510-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58510-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

main58510-77040-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58510-77040-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58510-77040-D1iLFA10..RHD201012-201212

RED,TRIM20

main58510-77040-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58510-77040-J0iLFA10..RHD201012-201212

BLUE,TRIM20

58511HMAT, FLOOR, FRONT RH

main58511-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58511-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58511-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58511-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58511-77010-J1iLFA10..LHD201012-201212

BLUE,TRIM20

main58511-77020-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58511-77020-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58511-77020-D1iLFA10..RHD201012-201212

RED,TRIM20

main58511-77020-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58511-77020-J1iLFA10..RHD201012-201212

BLUE,TRIM20

58512HMAT, FLOOR, FRONT LH

main58512-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58512-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58512-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58512-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58512-77010-J1iLFA10..LHD201012-201212

BLUE,TRIM20

main58512-77020-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58512-77020-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58512-77020-D1iLFA10..RHD201012-201212

RED,TRIM20

main58512-77020-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58512-77020-J1iLFA10..RHD201012-201212

BLUE,TRIM20

58513DCARPET, FLOOR, FRONT CENTER

main58513-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58513-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58513-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58513-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58513-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

main58513-77030-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58513-77030-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58513-77030-D1iLFA10..RHD201012-201212

RED,TRIM20

main58513-77030-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58513-77030-J0iLFA10..RHD201012-201212

BLUE,TRIM20

58515DCARPET, FLOOR, REAR LH

main58550-77010-A0iLFA10201012-201212

CREAM,TRIM20

main58550-77010-C0iLFA10201012-201212

BLACK,TRIM20

main58550-77010-D1iLFA10201012-201212

RED,TRIM20

main58550-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

main58550-77010-J0iLFA10201012-201212

BLUE,TRIM20

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0iLFA10201012-201212

BLACK,TRIM20

sub90467-07049¥90

main90467-07049-D0iLFA10201012-201212

RED,TRIM20

sub90467-07049¥90

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58520-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58520-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58520-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58520-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

main58520-77040-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58520-77040-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58520-77040-D1iLFA10..RHD201012-201212

RED,TRIM20

main58520-77040-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58520-77040-J0iLFA10..RHD201012-201212

BLUE,TRIM20

58521CHOOK, FLOOR CARPET NO.2

main58521-77010iLFA10¥3,310201012

58521FHOOK, FLOOR CARPET

58530JCARPET ASSY, FLOOR, CENTER

main58530-77010-A0iLFA10..LHD201012-201212

CREAM,TRIM20

main58530-77010-C0iLFA10..LHD201012-201212

BLACK,TRIM20

main58530-77010-D1iLFA10..LHD201012-201212

RED,TRIM20

main58530-77010-F0iLFA10..LHD201012-201212

CAMEL YELLOW,TRIM20

main58530-77010-J0iLFA10..LHD201012-201212

BLUE,TRIM20

main58530-77030-A0iLFA10..RHD201012-201212

CREAM,TRIM20

main58530-77030-C0iLFA10..RHD201012-201212

BLACK,TRIM20

main58530-77030-D1iLFA10..RHD201012-201212

RED,TRIM20

main58530-77030-F0iLFA10..RHD201012-201212

CAMEL YELLOW,TRIM20

main58530-77030-J0iLFA10..RHD201012-201212

BLUE,TRIM20

58540GCARPET ASSY, FLOOR, REAR RH

main58540-77010-A0iLFA10201012-201212

CREAM,TRIM20

main58540-77010-C0iLFA10201012-201212

BLACK,TRIM20

main58540-77010-D1iLFA10201012-201212

RED,TRIM20

main58540-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

main58540-77010-J0iLFA10201012-201212

BLUE,TRIM20

58560ECARPET ASSY, SEAT FLOOR

58569CPAD, FRONT FLOOR SIDE, LH

main58569-77010iLFA10..LHD201012

main58569-77040iLFA10..RHD201012

58573CPAD, FRONT FLOOR CENTER

main58573-77010iLFA10..LHD201012

main58573-77030iLFA10..RHD201012

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-77010iLFA10..LHD201012

main58576-77040iLFA10..RHD201012

58608CPAD SUB-ASSY, FRONT FLOOR, LH

main58608-77010iLFA10..LHD201012

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-30130iLFA10..LHD¥130201012

71732DFASTENER, SEAT COVER, B

main71732-77010iLFA10¥320201012

BASIC PACKAGE

72829FASTENER, REAR SEAT CENTER ARMREST

main72829-77010iLFA10201012

9046706197

main90467-06197¥120

9046714053

main90467-14053¥100

91551J0625

main91551-J0625¥110

93241A6020

main93241-A6020¥110

9415180641

main94151-80641¥60

26 parts on this diagram · 2 diagrams in section
