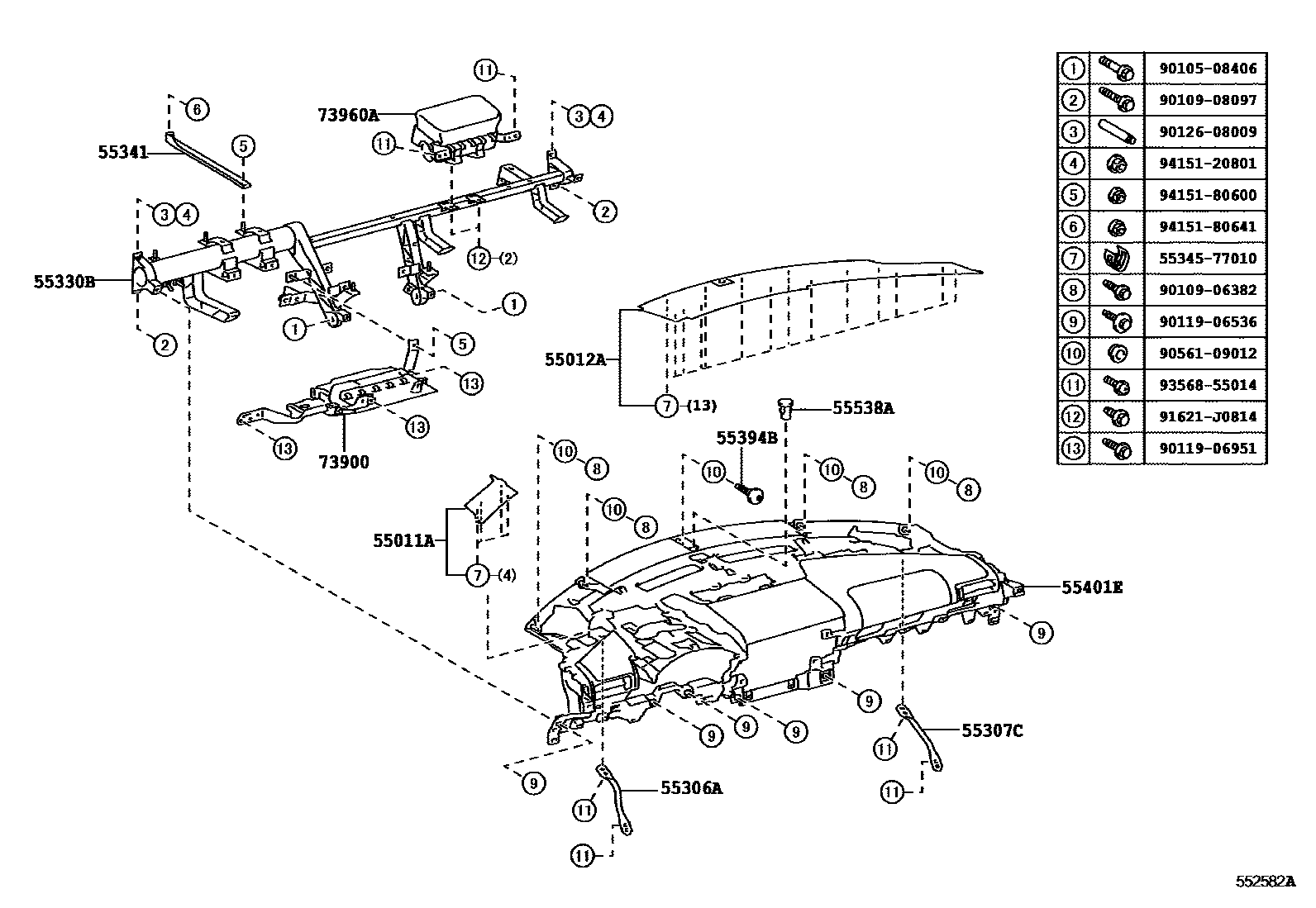

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55011AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

main55011-77010iLFA10..LHD201012

main55011-77020iLFA10..RHD¥188,000201012

55012AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

main55012-77010iLFA10..LHD201012

main55012-77020iLFA10..RHD¥324,000201012

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-77010iLFA10..LHD201012

main55306-77020iLFA10..RHD201012

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-77010iLFA10201012

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-77010iLFA10..LHD201012

main55330-77020iLFA10..RHD¥318,000201012

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-77010iLFA10201012

55394BBOLT, INSTRUMENT PANEL

main55394-77010iLFA10¥1,260201012

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-77020-C3iLFA10..LHD201012-201212

BLACK/BROWNISH BLACK,TRIM20

main55401-77020-C4iLFA10..LHD201012-201212

BLACK/SILVER,TRIM20

main55401-77040-C3iLFA10..RHD201012-201212

BLACK/BROENISH BLACK,TRIM20

main55401-77040-C4iLFA10..RHD201012-201212

BLACK/SILVER,TRIM20

55538ACOVER, COOLER SWITCH HOLE

main55538-48010iLFA10¥240201012

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-77010iLFA10..LHD201012

main73900-77020iLFA10..RHD¥45,800201012

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-77010iLFA10¥120,000201012

sub73960-77050¥120,000

5534577010GARNISH, GLOVE COMPARTMENT, UPPER

main55345-77010¥300

9010508406

main90105-08406¥80

9010906382

main90109-06382¥60

9010908097

main90109-08097¥140

9011906536

main90119-06536¥150

9011906951

main90119-06951¥80

9012608009

main90126-08009¥90

9056109012

main90561-09012¥130

91621J0814

main91621-J0814¥60

9356855014

main93568-55014¥70

9415120801

main94151-20801¥80

9415180600

main94151-80600¥60

9415180641

main94151-80641¥60

24 parts on this diagram · 8 diagrams in section
